Clevo W670SZQ User Manual

Disassembly
2 - 18 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and the component bay cover (page 2 - 7).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 14a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 14b)
4. The Wireless LAN module (Figure 14c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
2
3
5
1
5
4

5.Wireless LAN Module
•1 Screw
Figure 14
Wireless LAN
Module Removal

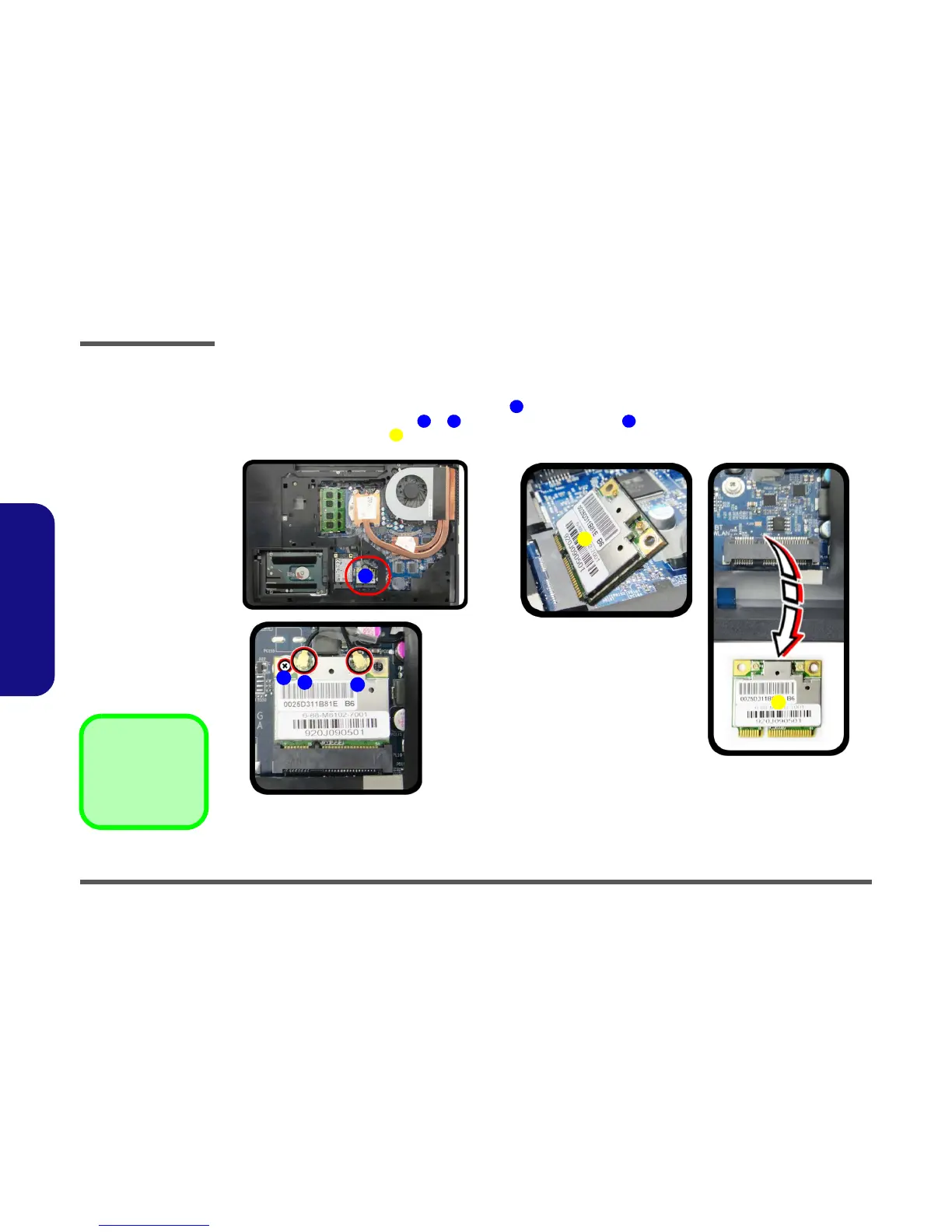

a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 14b).
