Clevo W670SZQ User Manual

Disassembly
Removing the MSATA Module 2 - 19
2.Disassembly
Removing the MSATA Module
1. Turn off the computer, remove the battery (page 2 - 14), and component bay cover (page 2 - 7).
2. Locate the module, it is visible at point
(Figure 15a).
3. Carefully remove the screw from the module
(Figure 15b).
4. Lift the module up and off the computer
(Figure 15c).

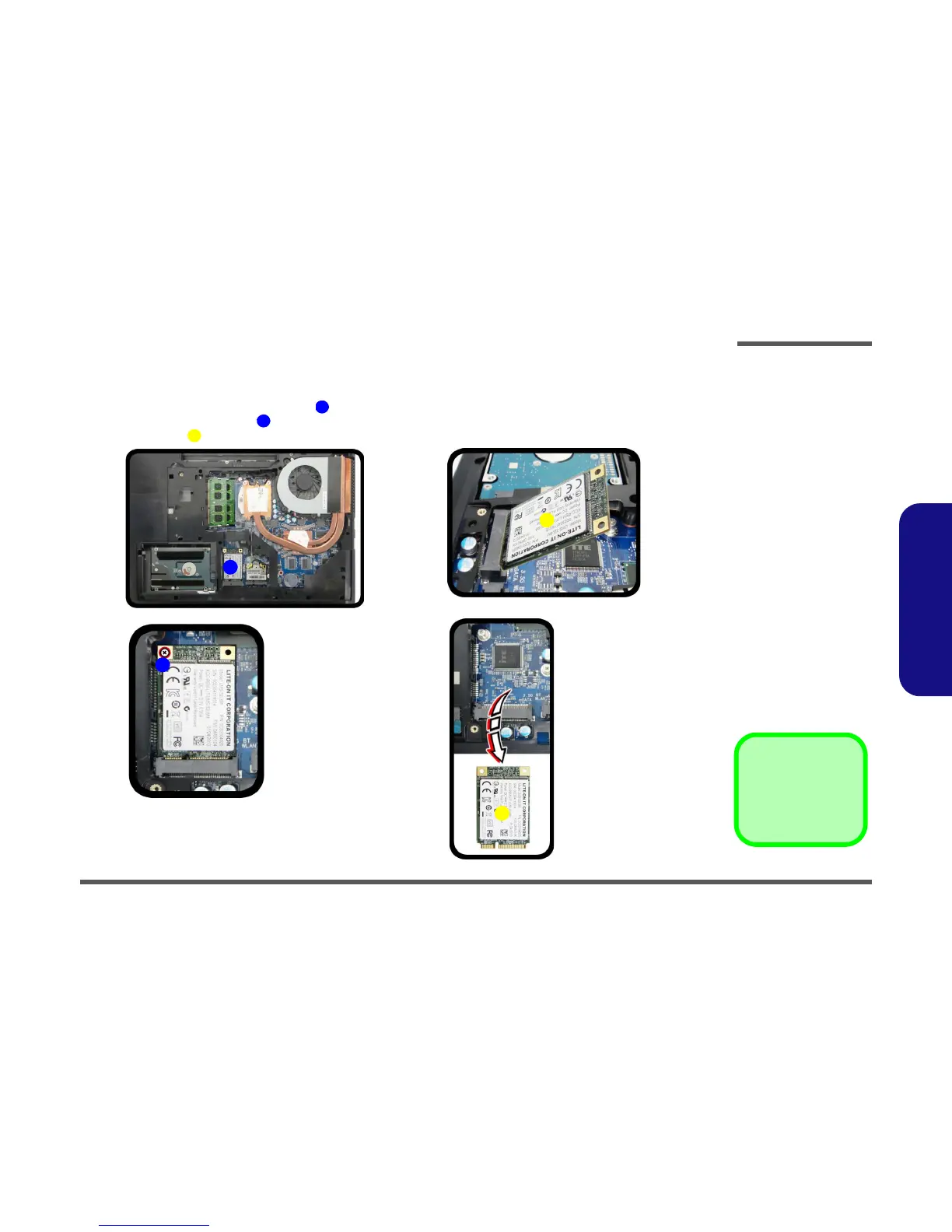

Figure 15
MSATA Module
Removal
a. Locate the module.
b. Remove the screw.
c. The module will pop-up.
d. Lift the module up off the
socket.
1
2
3
a.
b.
1
3
2
3
c.
d.

3. MSATA Module
•1 Screw
