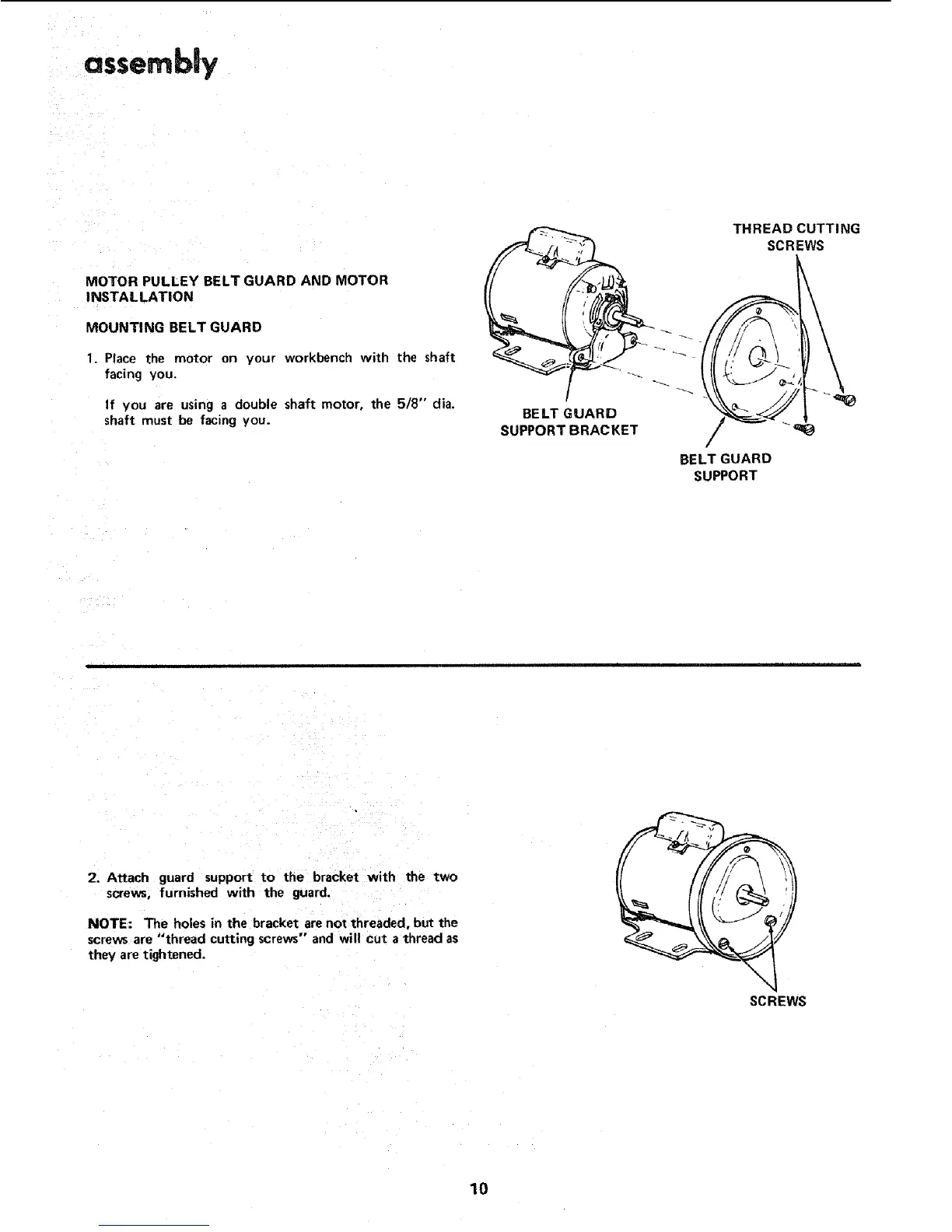

assemb|y
MOTOR PULLEY BELT GUARD AND MOTOR
INSTA L LAT! ON
MOUNTING BELT GUARD
1. Place the motor on your workbench with the shaft
facing you.
If you are using a double shaft motor, the 5/8" dia.
shaft must be facing you.
BELT GUARD
SU PPORT BRACKET
THREAD CUTTING
SCREWS
BELT GUARD
SUPPORT
2. Attach guard support to the bracket with the two
screws, furnished with the guard.
NOTE: The holes in the bracket arenot threaded, but the
screws are "thread cutting screws" and will cut a thread as
they are tightened.
SCREWS
10
