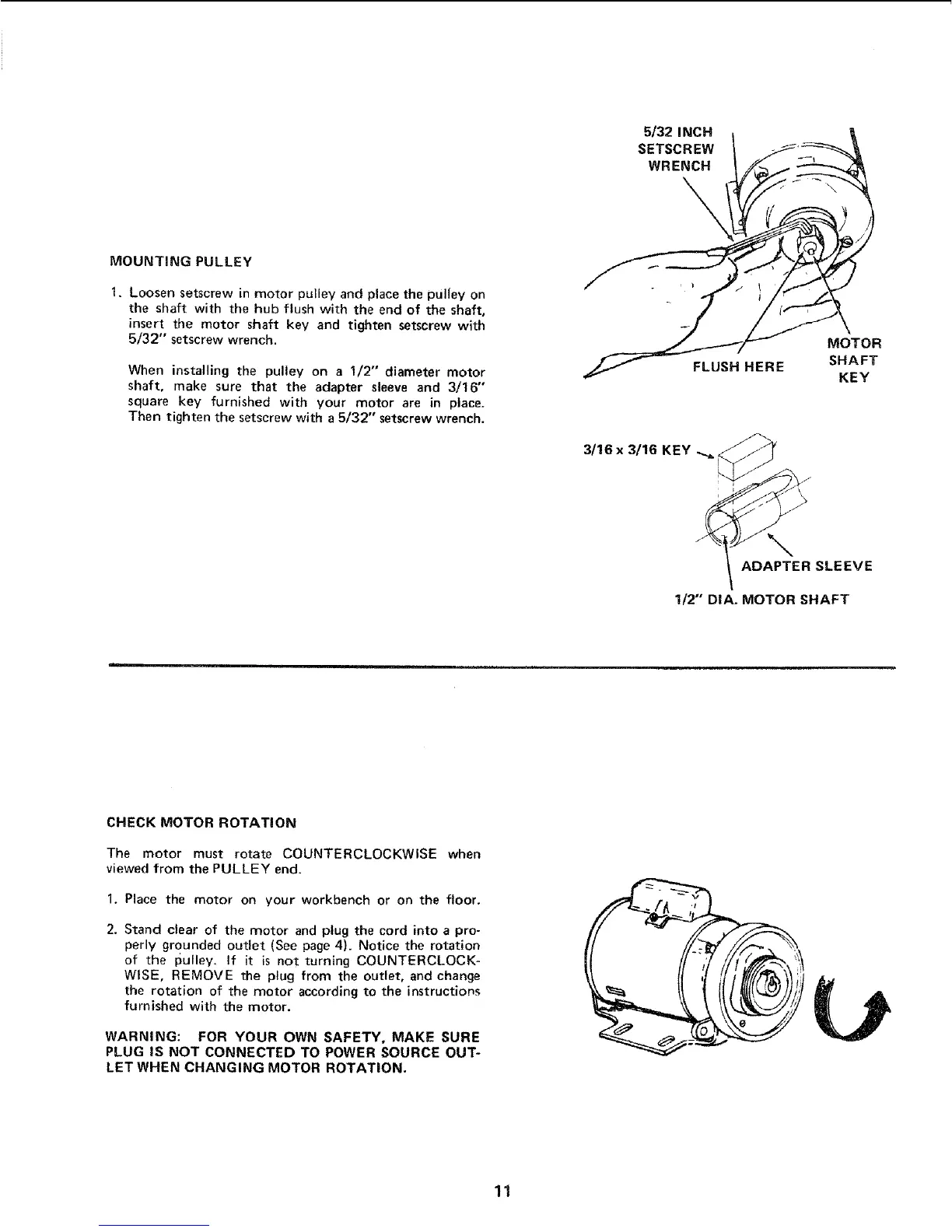

MOUNTING PULLEY
I. Loosen setscrew in motor pulley and place the pulley on
the shaft with the hub flush with the end of the shaft,
insert the motor shaft key and tighten setscrew with
5/32" setscrew wrench.
When installing the pulley on a 1/2" diameter motor
shaft, make sure that the adapter sleeve and 3/16"
square key furnished with your motor are in place.
Then tighten the setscrew with a 5/32" setscrew wrench.
s/32 iNCH I _ /
SETSCREW
WRENC.
_J___'_"_ MOTOR
_- FLUSH HERE SHAFT
KEY
3/16x 3/16 KEY ....,.
L
\
ADAPTER SLEEVE
112" DIAo MOTOR SHAFT
CHECK MOTOR ROTATION
The motor must rotate COUNTERCLOCKWISE when
viewed from the PULLEY end.
I. Place the motor on your workbench or on the floor.
2. Stand clear of the motor and plug the cord into a pro-
perly grounded outlet (See page 4). Notice the rotation
of the pulley. If it is not turning COUNTERCLOCK-
WISE, REMOVE the plug from the outlet, and change
the rotation of the motor according to the instructions
furnished with the motor.
WARNING: FOR YOUR OWN SAFETY, MAKE SURE
PLUG IS NOT CONNECTED TO POWER SOURCE OUT-
LET WHEN CHANGING MOTOR ROTATION.
11
