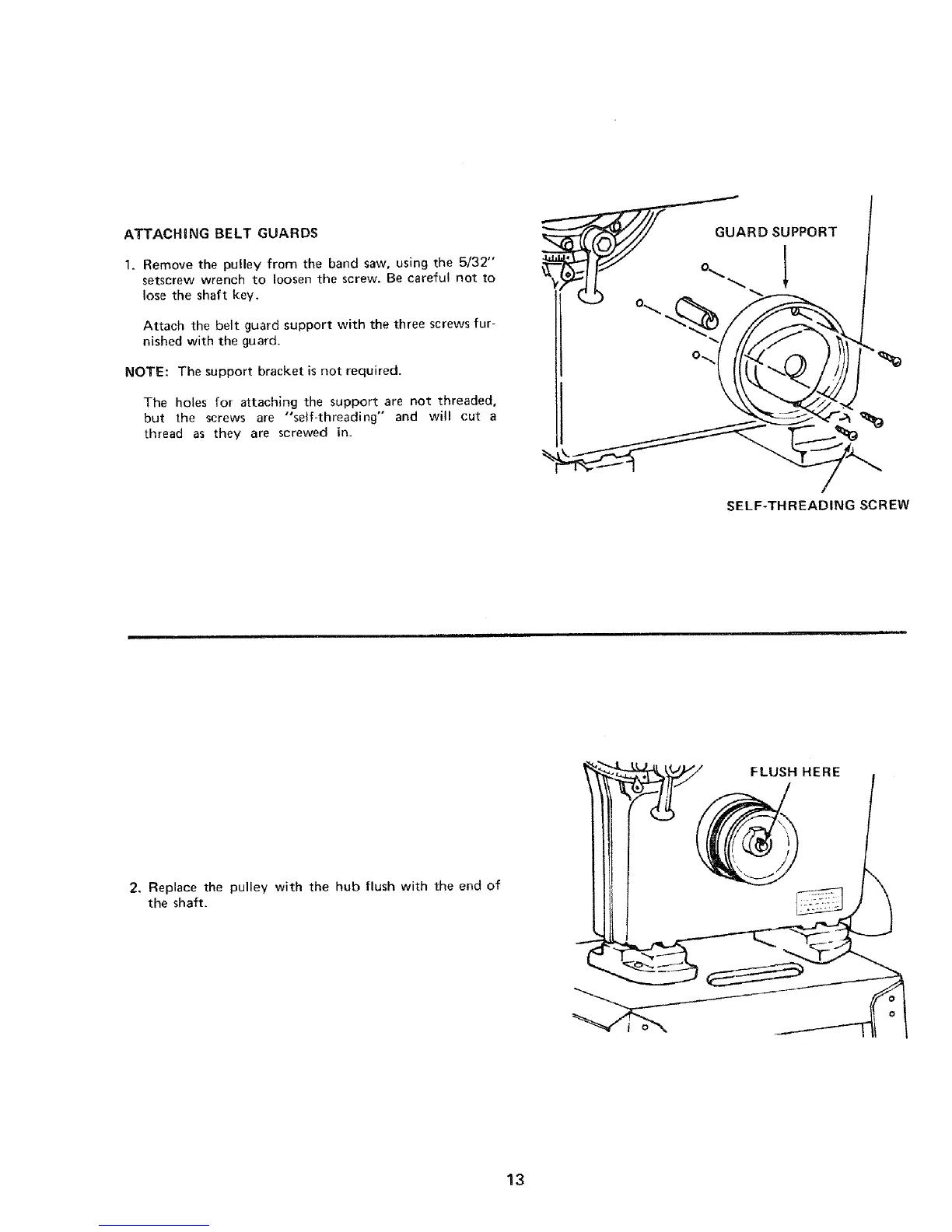

ATTACHING BELT GUARDS
1. Remove the pulley from the band saw, using the 5/32"
setscrew wrench to loosen the screw. Be careful not to
lose the shaft key.
Attach the belt guard support with the three screws fur-
nished with the guard.
NOTE: The support bracket is not required.
The holes for attaching the support are not threaded,
but the screws are "self-threading" and will cut a
thread as they are screwed in.
SELF-THREADING SCREW
2. Replace the pulley with the hub flush with the end of
the shaft.
FLUSH HERE
/
