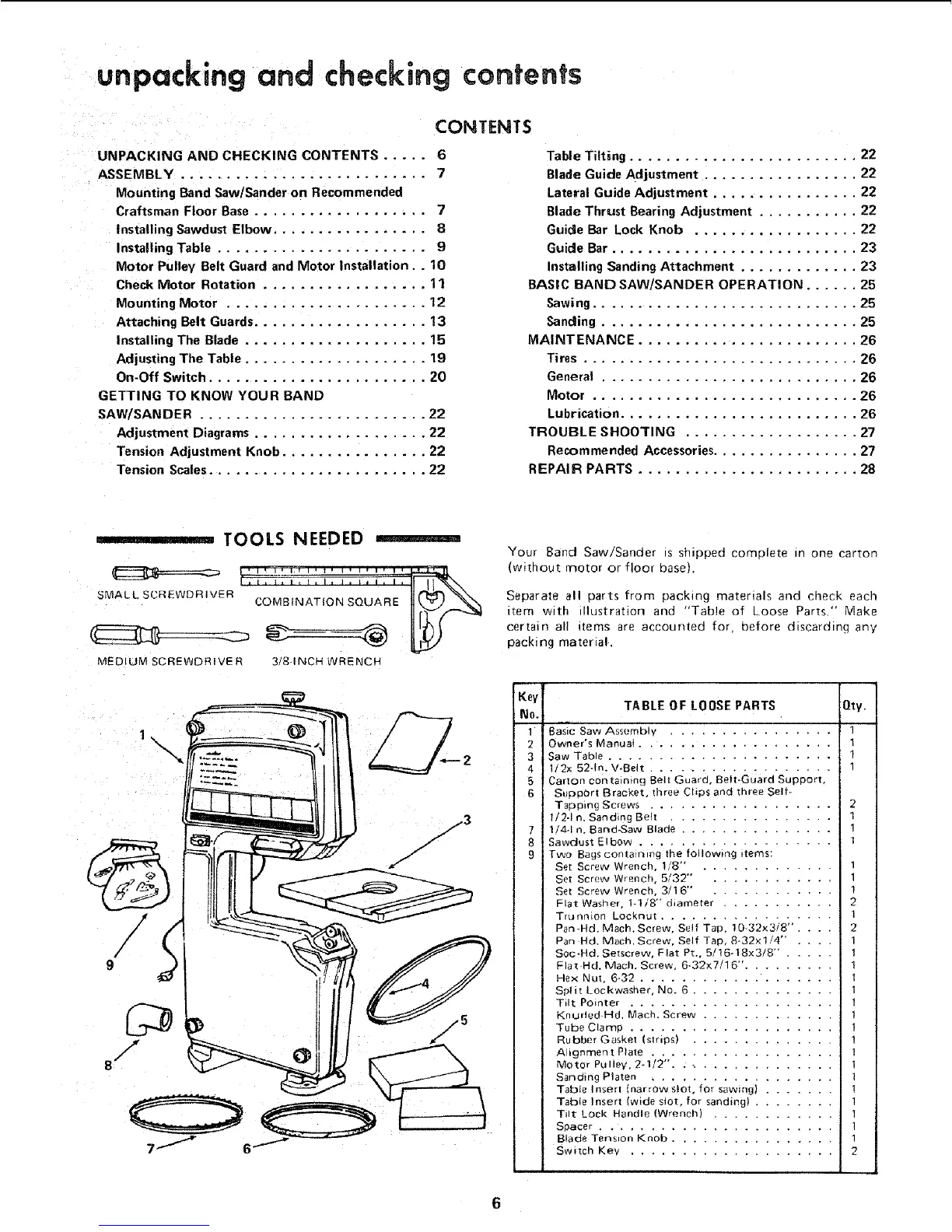

unpacking and checking contents
CONTENTS
UNPACKING AND CHECKING CONTENTS ..... 6
ASSEMBLY ........................... 7
Mounting Band Saw/Sander on Recommended
Craftsman Floor Base ................... 7
Installing Sawdust Elbow ................. 8
Installing Table ....................... 9
Motor Pulley Belt Guard and Motor Installation.. 10
Check Motor Rotation .................. 11
Mounting Motor ...................... 12
Attaching Belt Guards ................... 13
Installing The Blade .................... 15
Adjusting The Table .................... 19
On-Off Switch ........................ 20
GETTING TO KNOW YOUR BAND
SAW/SANDER ......................... 22
Adjustment Diagrams ................... 22
Tension Adjustment Knob ................ 22
Tension Scales ........................ 22
Table Tilting ......................... 22
Blade Guide Adjustment ................. 22
Lateral Guide Adjustment ................ 22
Blade Thrust Bearing Adjustment ........... 22
Guide Bar Lock Knob .................. 22
Guide Bar ........................... 23
Installing Sanding Attachment ............. 23
BASIC BAND SAW/SANDER OPERATION ...... 25
Sawing ............................. 25
Sanding ............................ 25
MAINTENANCE ........................ 26
Tires .............................. 26
General ........................... 26
Motor ............................. 26
Lubrication .......................... 26
TROUBLE SHOOTING ................... 27
Recommended Accessories................ 27
REPAIR PARTS ........................ 28
- TOOLS NEEDED -- - -
MEDIUM SCREWDRIVER 3!8-tNCH WRENCH
1
\
I
7
8 /
Your Band Saw/Sander s shipped comolete m one carton
(w_thout rno[or or floor basel
Separate all oarts from packing materials and check each
i[ern w_th Ilustratlon and "Table of Loose Parts." Make
certain all items are accounted for before discarding any
paekinq material.
Key TABLE OF LOOSE PARTS Qty.
N0.
1 Bas_e Saw Assembly ................ 1
2 Owner's Manual. 1
3 Saw Table ...................... , 1
4 1/2x 52-1n, V-Belt .................. , 1
5 Carton containing Belt Guard, Belt-Guard Support,
6 Support Bracket, three Clips and three Self-
Tapping Screws ................... 2
1
8
9
I/2-I n. Sanding Belt I
I/4-I n. Band-Saw Blade ............... I
Sawdust E I bow 1
Two Bags containing the following ttems:
Set Screw Wrench, 1/8" . ............ 1
Set Bcrew Wrench, 5/32" . ........... 1
Set Screw Wrench, 3/16" . ........... t
Flat Washer, 1 I/8" diameter ........... 2
Trunmon Locknut ................. I
Pan-Hd. Mach, Screw, Self Tap, 10-32x3i8", . . . 2
Pan Rd. aaeh, Screw, Self Tap, B-32x1/4" . . . . 1
Soc-Hd. Setscrew, Flat Pt,, 5/16-t8x3/8" . .... 1
Flat Hd. Mach_ Screw, 6-32x7/16". ........ 1
Hex Nut, 6-32 .................... 1
Spht Lockwasher, No. 6 .............. 1
Tilt Pointer ..................... 1
Knurled Hd. Mach. Screw .............. 1
Tube Clamp ..................... I
Rubber Gasket (str,ps) .............. I
A ignmen t Plate ................... I
Motor Pulley, 2-I/2". ............... I
Sanding Platen .................. I
Table Inaetl {nartowalot, for sawing) ....... 1
Table Insert (w_de slot, for sanding) ........ 1
Tilt Lock Handle (Wrench) 1
Spacer 1
Blade Tenspon Knob ................ !
Switch Key .................... 2
