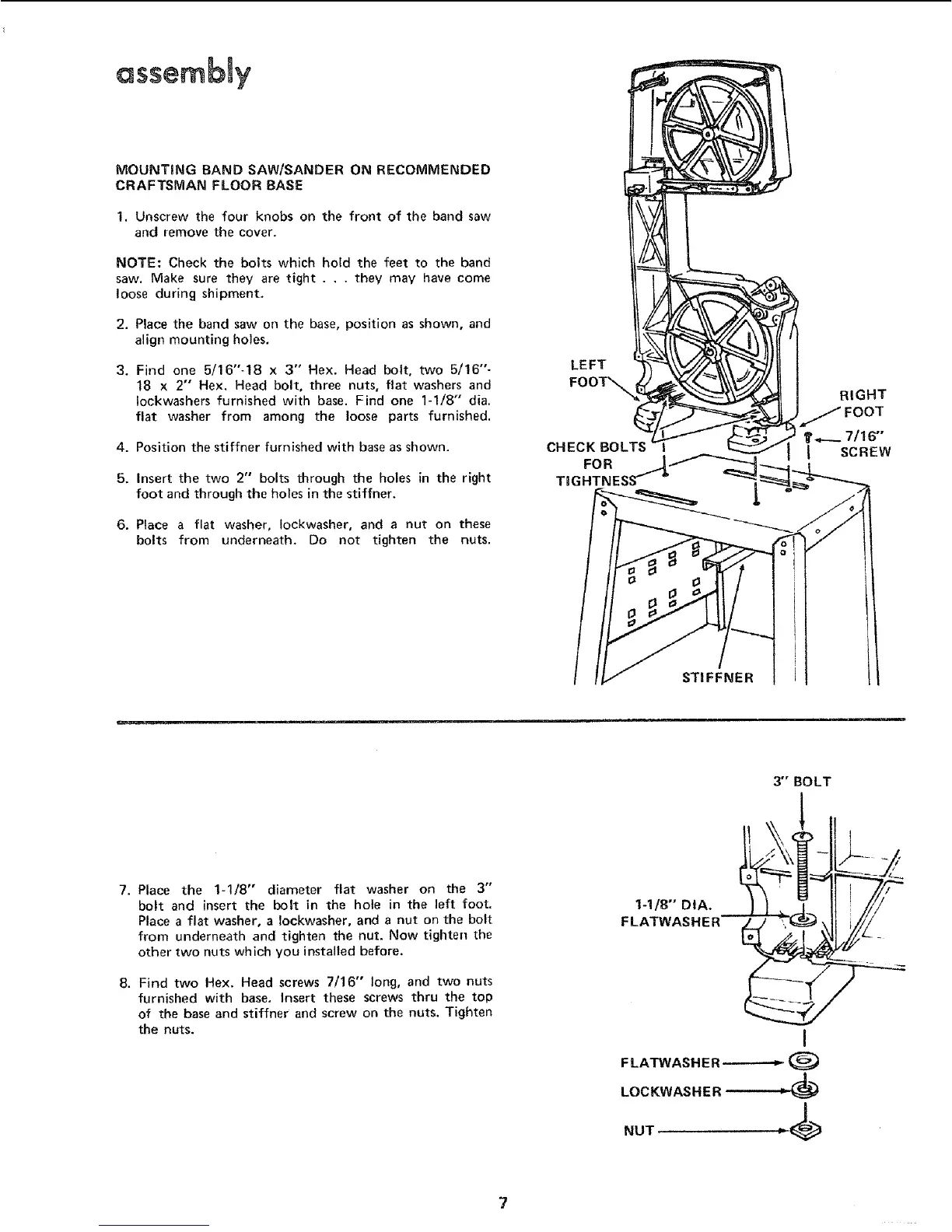

assemb!y
MOUNTING BAND SAW/SANDER ON RECOMMENDED
CRAFTSMAN FLOOR BASE
1. Unscrew the four knobs on the front of the band saw
and remove the cover.
NOTE: Check the bolts which hold the feet to the band
saw. Make sure they are tight . , . they may have come
loose during shipment.
2. Place the band saw on the base, position as shown, and
align mounting holes.
3. Find one 5/16"-18 x 3" Hex. Head bolt, two 5/16"-
18 x 2" Hex. Head bolt, three nuts, flat washers and
Iockwashers furnished with base. Find one 1-1/8'" dia.
flat washer from among the loose parts furnished.
4. Position the stiffner furnished with base as shown.
5. Insert the two 2" bolts through the holes in the right
foot and through the holes in the stiffner.
6. Place a flat washer, Iockwasher, and a nut on these
bolts from underneath. Do not tighten the nuts.
LEFT
FOOT_
CHECK BOLTS
FOR
STIFFNER
7. Place the 1-1/8" diameter flat washer on the 3"
bolt and insert the bolt in the hole in the left foot.
Place a flat washer, a Iockwasher, and a nut on the bolt
from underneath and tighten the nut. Now tighten the
other two nuts which you installed before.
8. Find two Hex. Head screws 7/16" long, and two nuts
furnished with base, Insert these screws thru the top
of the base and stiffner and screw on the nuts. Tighten
the nuts.
3" BOLT
I
F LATWASH ER -.-------_ @
LOCKWASHER
NUT b
7
To Next Page
