Craftsman 247.881732 User Manual

Drive Control
Chute Assembly
Clean Out_
Tool
Auger Housingl_-_-_---__
Augers
Shift Lever
J
" Skid Shoe
Oil Drain
Switchbox

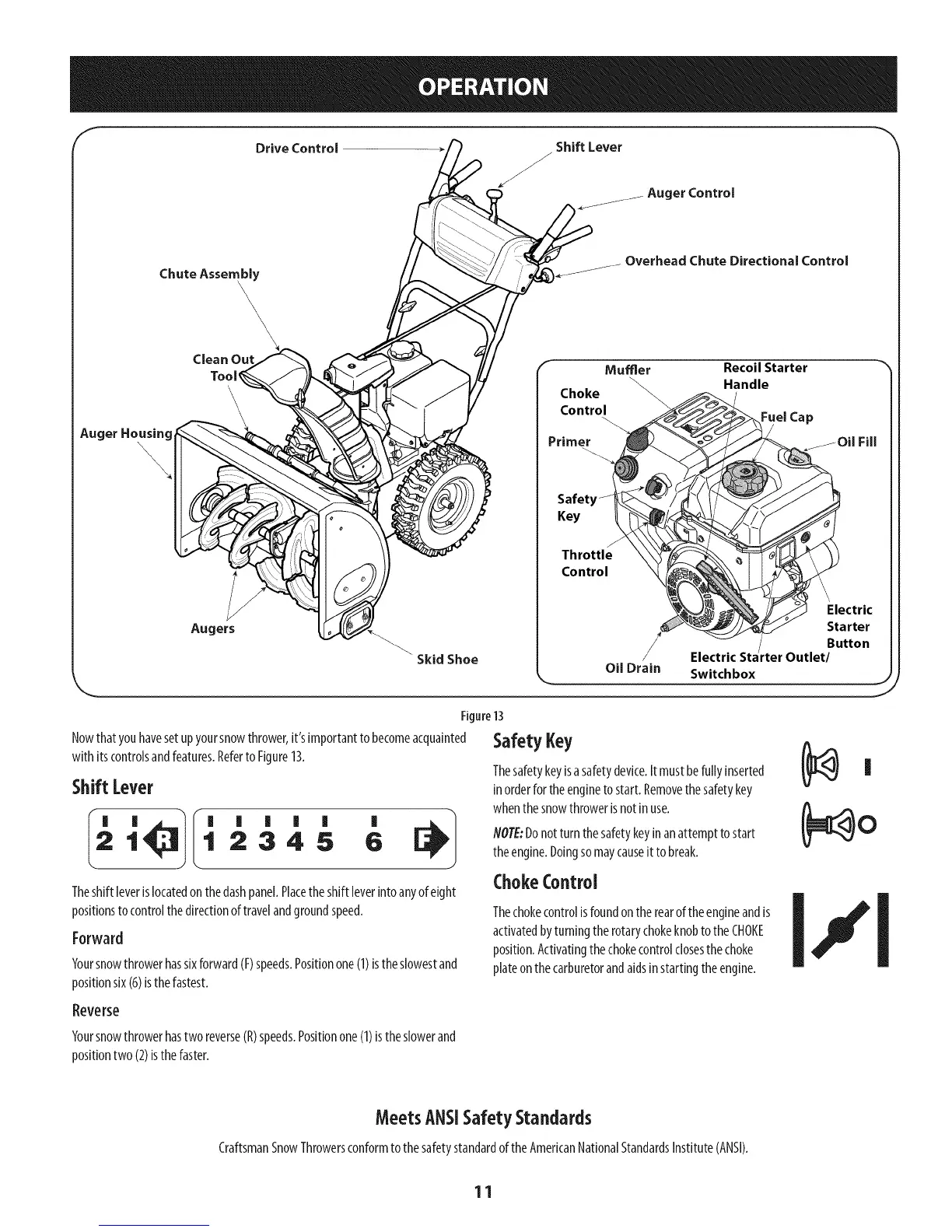

Figure13
Nowthat youhavesetupyoursnowthrower,it'simportanttobecomeacquainted
with itscontrolsandfeatures.Referto Figure13.
ShiftLever
| ii | II li ___ I
2345 6
Theshiftleverislocatedonthedashpanel.Placetheshift leverintoanyofeight
positionstocontrolthedirectionoftravelandgroundspeed.
Forward
Yoursnowthrowerhassixforward(F)speeds.Positionone(1)istheslowestand
positionsix (6)isthefastest.
SafetyKey
Thesafetykeyisasafetydevice.Itmustbefullyinserted
inorderfortheenginetostart.Removethesafetykey
whenthesnowthrowerisnotinuse.
NOTE:Donotturnthesafetykeyinanattemptto start
theengine.Doingsomaycauseit tobreak.
ChokeControl
Thechokecontrolisfoundontherearoftheengineandis
activatedbyturningthe rotarychokeknobtotheCHOKE
position.Activatingthechokecontrolclosesthechoke
plateonthecarburetorandaidsinstartingtheengine.
Reverse
Yoursnowthrowerhastworeverse(R)speeds.Positionone(1)istheslowerand
positiontwo(2)isthefaster.
Fill
\
Electric
Starter
Button
|
MeetsANSISafetyStandards
CraftsmanSnowThrowersconformtothesafetystandardof theAmericanNationalStandardsInstitute(ANSI).
11

Craftsman 247.881732 Specifications

General

Brand	Craftsman
Model	247.881732
Category	Snow Blower
Language	English
