AugerControl f
Referto page10intheAssemblysectionfor instructionsonadjustingtheauger
controlcable.
SkidShoes
Referto page9in theAssemblysectionforinstructionsonadjustingtheskid
shoes.

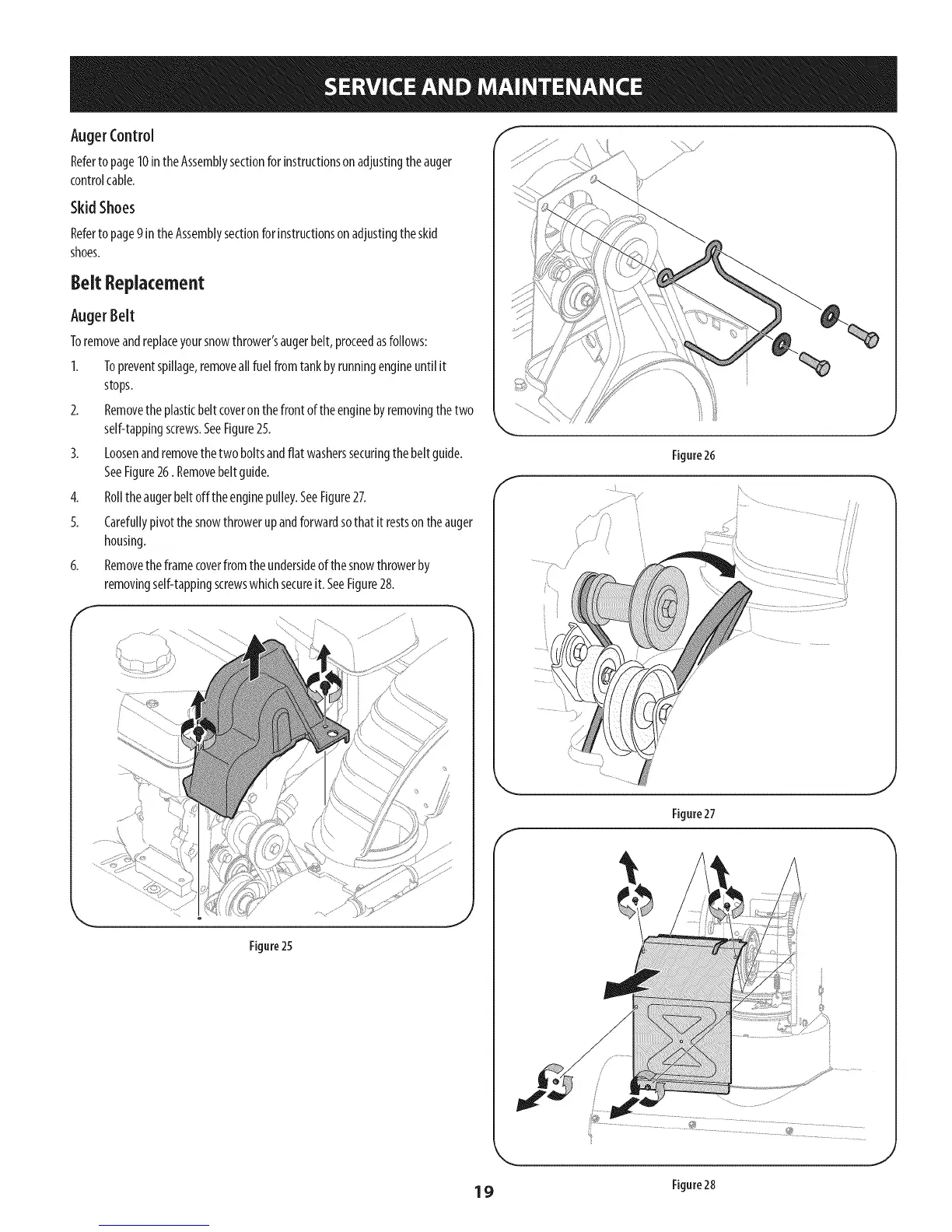

Belt Replacement
Auger Belt
Toremoveandreplaceyoursnowthrower'saugerbelt,proceedasfollows:
I. Topreventspillage,removeallfuelfromtankbyrunningengineuntil it
stops.
2. Removetheplasticbeltcoveronthefrontof theenginebyremovingthetwo
self-tappingscrews.SeeFigure25.
3. Loosenandremovethetwo boltsandflat washerssecuringthebeltguide.
SeeFigure26. Removebeltguide.
4. Rolltheaugerbeltoffthe enginepulley.SeeFigure27.
5. Carefullypivotthesnowthrowerupandforwardsothat it restsontheauger
housing.
6. Removetheframecoverfromtheundersideofthesnowthrowerby
removingself-tappingscrewswhichsecureit. SeeFigure28.
Figure25
Figure26
J
/
/
Figure27
J
1 9 Figure28
