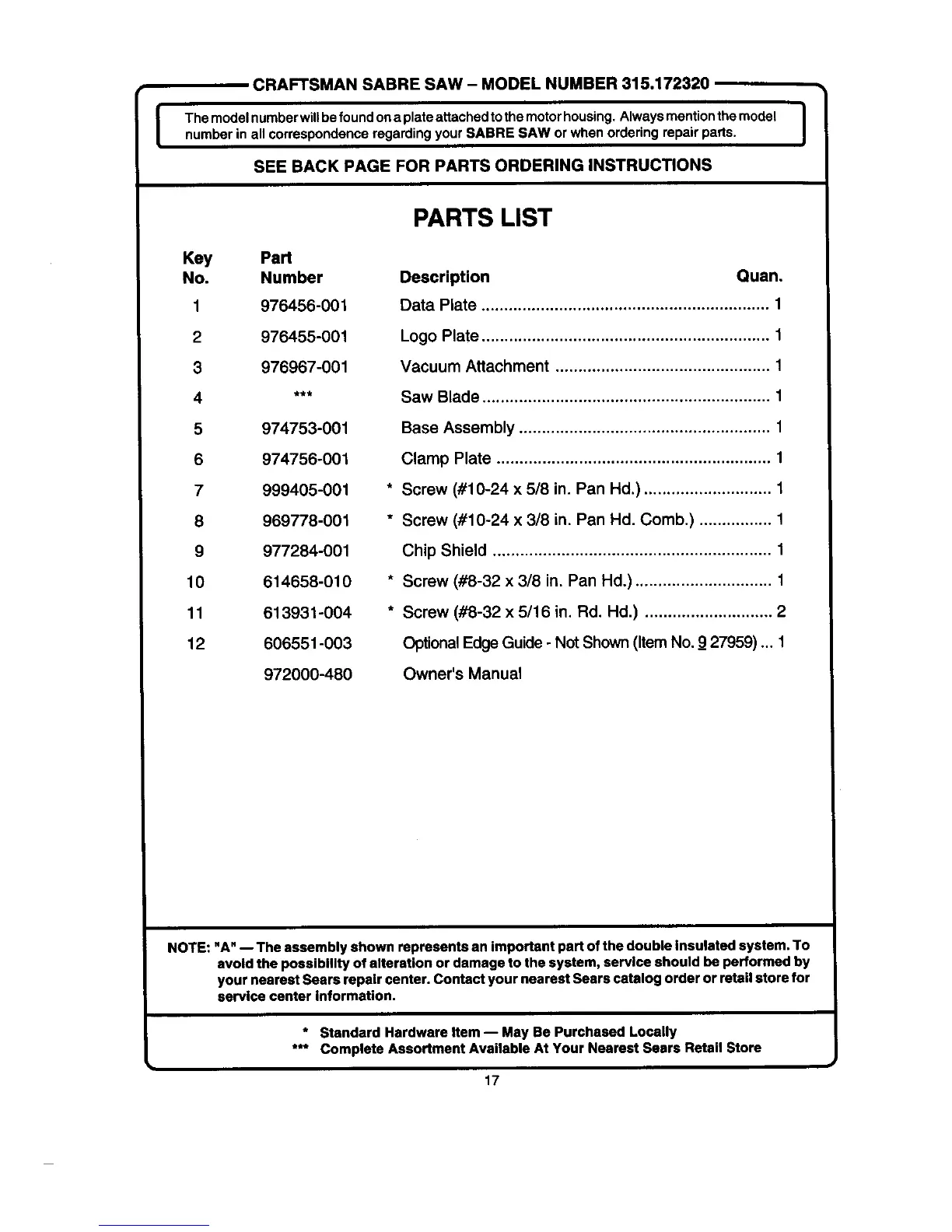

CRAFTSMAN SABRE SAW - MODEL NUMBER 315.172320
The modelnumberwiUbefoundona plateattachedtothemotorhousing.Alwaysmentionthemodel
number in all correspondenceregarding your SABRE SAW or when orderingrepair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
Key Pa_
No. Number
1 976456-001
2 976455-001
3 976967-001
_
5 974753-001
6 974756-001
7 999405-001
8 969778-001
9 977284-001
10 614658-010
11 613931-004
12 606551-003
972000-480
,t
PARTS LIST
Description Quan.
Data Plate ............................................................... 1
Logo Plate ............................................................... 1
Vacuum Attachment ............................................... 1
Saw Blade ............................................................... 1
Base Assembly ....................................................... 1
Clamp Plate ............................................................ 1
Screw (#10-24 x 5/8 in. Pan Hd.) ............................ 1
Screw (#10-24 x 3/8 in, Pan Hd, Comb.) ................ 1
Chip Shield ............................................................. 1
Screw (#8-32 x 3/6 in, Pan Hd.) .............................. 1
Screw (#8-32 x 5/16 in, Rd. Hd,) ............................ 2
Optional Edge Guide - Not Shown (Item No. _927959).,. 1
Owner's Manual
I
NOTE: "A" -- The assembly shown represents an important pert of the double Insulated system. To
avoid the possibility of alteration or damage to the system, service should be performed by
your nearest Sears repair center. Contact your nearest Sears catalog order or retail store for
service center information.
* Standard Hardware Item -- May Be Purchased Locally
*** Complete Assortment Available At Your Nearest Sears Retail Store
17
