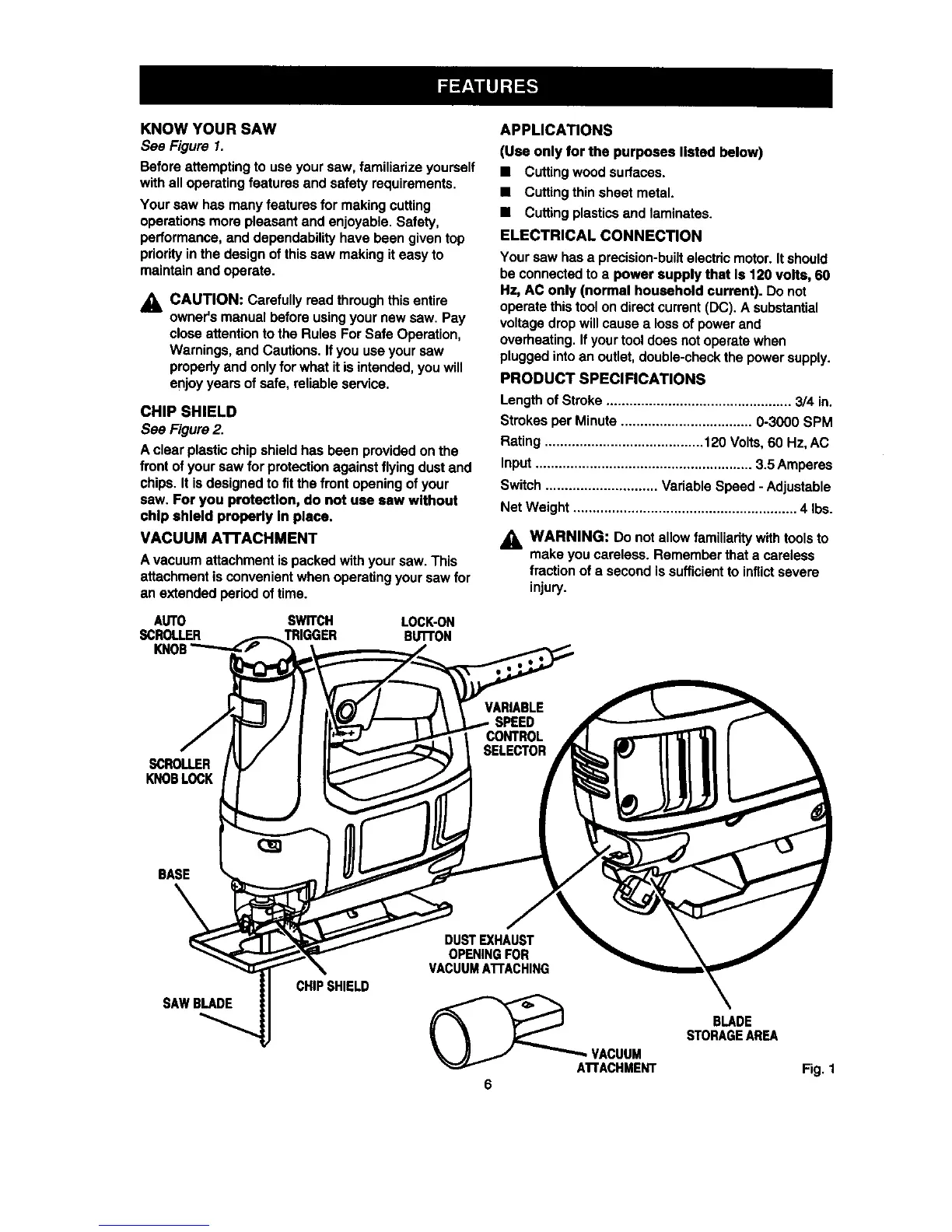

KNOWYOURSAW
See Figure 1.
Beforeattempting to useyoursaw, familiarize yourself
with all operatingfeatures and safety requirements.
Your saw has many features for makingcutting
operationsmore pleasant and enjoyable.Safety,
performance,and dependabilityhave been given top
priorityinthe designof thissaw makingiteasy to
maintainand operate.
_1= CAUTION: Carefully read throughthisentire
owner'smanual beforeusingyour new saw. Pay
closeattentionto the Rules For Safe Operation,
Warnings,and Cautions.If you use your saw
properlyand onlyfor what it is intended,youwill
enjoyyearsof safe, reliableservice.
CHIP SHIELD
See Figure 2.
Aclear plasticchip shield has been providedon the
frontof yoursaw for protectionagainst flyingdust and
chips.It is designed to fit the front openingof your
saw. For you protection, do not use saw without
chip shield properly in place.
VACUUM AI-rACHMENT
Avacuum attachmentis packed withyour saw. This
attachmentis convenientwhen operatingyoursaw for
an extendedperiod of time.
APPLICATIONS
(Use only for the purposes listed below)
• Cutting wood surfaces.
• Cutting thin sheet metal.
• Cuttingplasticsand laminates.
ELECTRICAL CONNECTION
Yoursaw has a precision-builtelectricmotor.It should
be connectedto a power supply that Is 120 volts, 60
Hz, AC only (normal household current). Do not
operatethistool on directcurrent(DC). A substantial
voltagedropwillcause a lossof powerand
overheating.If your tool does notoperate when
pluggedintoan outlet,double-checkthe powersupply.
PRODUCT SPECIFICATIONS
Lengthof Stroke ................................................ 3/4 in.
Strokes per Minute .................................. 0-3000 SPM
Rating ......................................... 120 Volts,60 Hz,AC
Input........................................................ 3.5 Amperes
Switch ............................. Variable Speed - Adjustable
Net Weight .......................................................... 4 Ibs.
,_ WARNING: Do notallow familiaritywithtools to
make youcareless. Rememberthat a careless
fractionof a second is sufficientto inflictsevere
injury.
_ROLLER
K_BLOCK
BASE
SAWBLADE
CHIPSHIELD
DUST EXHAUST
OPENINGFOR
VACUUMATrACHING
(__AI.I .ACUUM
ACHMENT
6
BLADE
STORAGEAREA
Fig. 1
