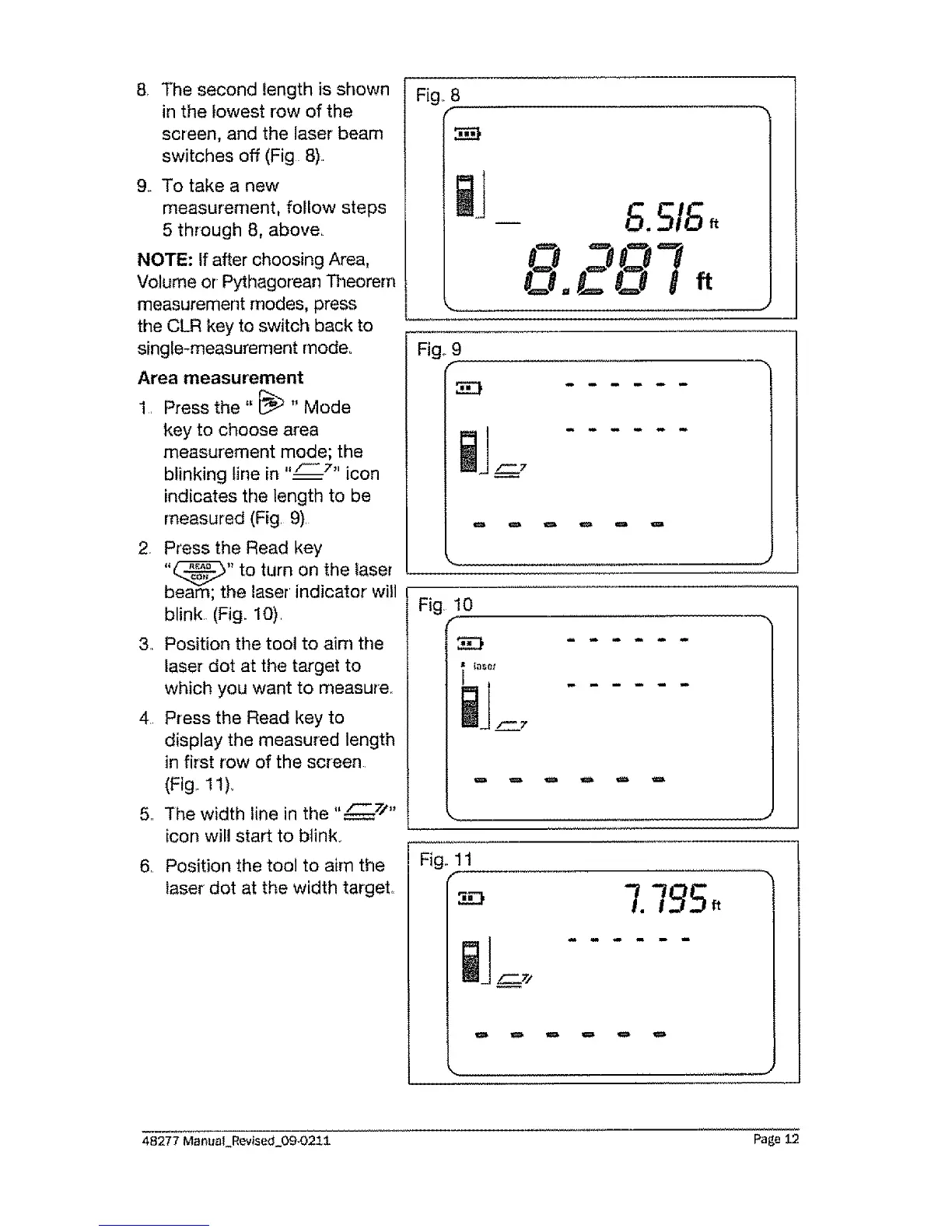

8. The second length is shown
in the lowest row of the
screen, and the laser beam
switches off (Fig 8)..
9. To take a new
measurement, follow steps
5 through 8, above.
NOTE: If after choosing Area,
Volume or Pythagorean Theorem
measurement modes, press
the CLR key to switch back to
single-measurement mode,
Area measurement
1. Press the" _ " Mode
key to choose area
measurement mode; the
blinking line in "/--7,, icon
indicates the length to be
measured (Fig. 9).
2. Press the Read key
"_" to turn on the laser
beach; the laser indicator will
blink. (Fig. 10).
3. Position the tool to aim the
laser dot at the target to
which you want to measure..
4. Press the Read key to
display the measured length
in first tow of the screen
(Fig.. 11)o
5. The width line in the ,, _7/,,
icon will start to blink.
6. Position the tool to aim the
laser dot at the width target..
Fig. 8
f
J
- 5.515.
0 3Ca7
o28.P o2o .
o
Fig 10
_ ......... J
Fig.. 11
t_
7.795.
