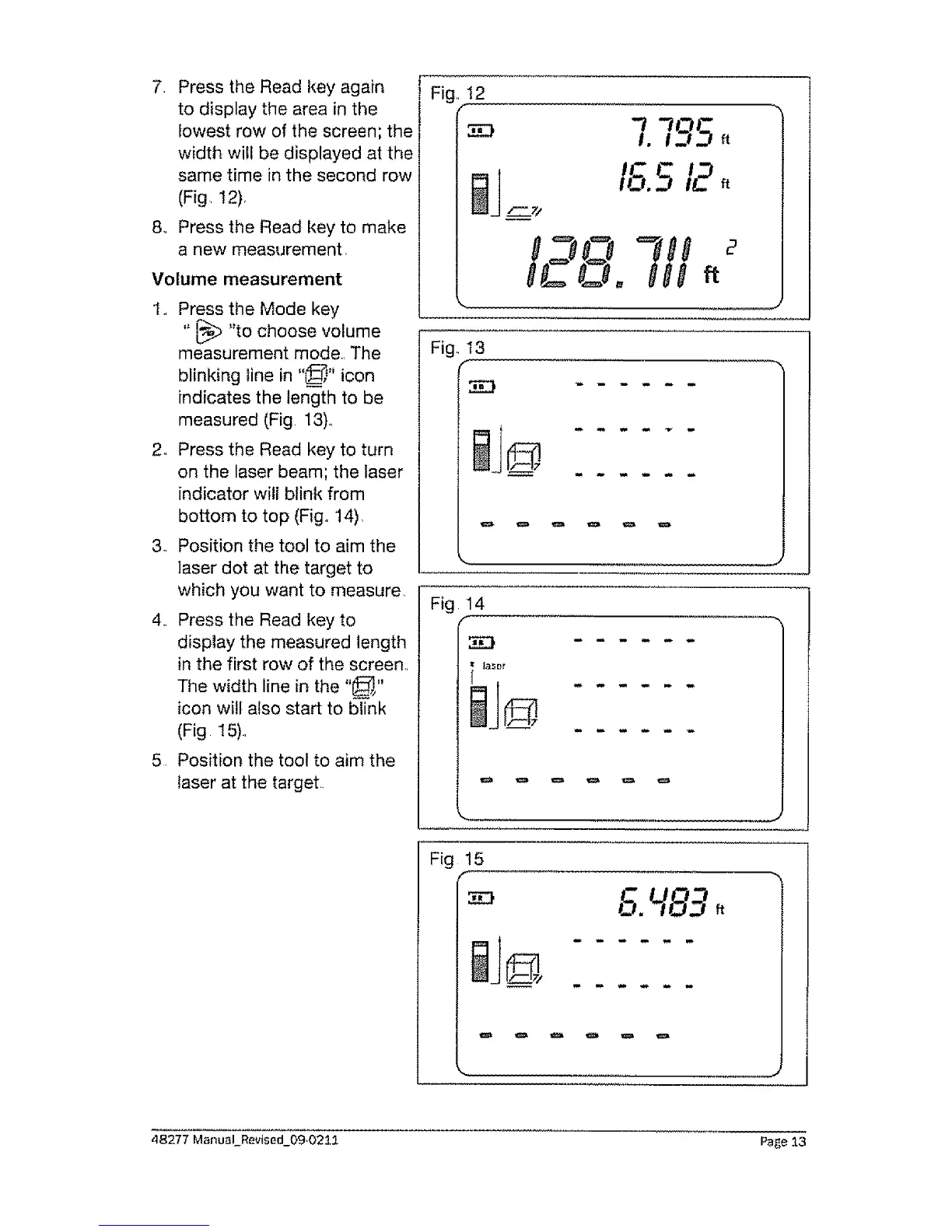

7 Press the Read key again
to display the area in the
lowest row of the screen; the
width will be displayed at the
same time in the second row
(Fig 12),
8.. Press the Read key to make
a new measurement
Volume measurement
1.. Press the Mode key
" [_ "to choose volume
measurement mode, The
blinking line in "_," icon
indicates the length to be
measured (Fig 13).
2.. Press the Read key to turn
on the laser beam; the laser
indicator will blink from
bottom to top (Fig° t4),
3.. Position the tool to aim the
laser dot at the target to
which you want to measure.
4. Press the Read key to
display the measured length
in the first row of the screen,.
The width line in the ,,_1,,
icon wilt also start to blink
(Fig I5)..
5 Position the toot to aim the
laser at the target
Fig 12
"3
"lOC
, 12tJ a
15.512,,
oZso 000
Fig. t3
I@ ......
Fig 4
x I_slr
Fig 15
5.'-189,
lj , ......
48277 Manual Revised_09,0211 Page 13
