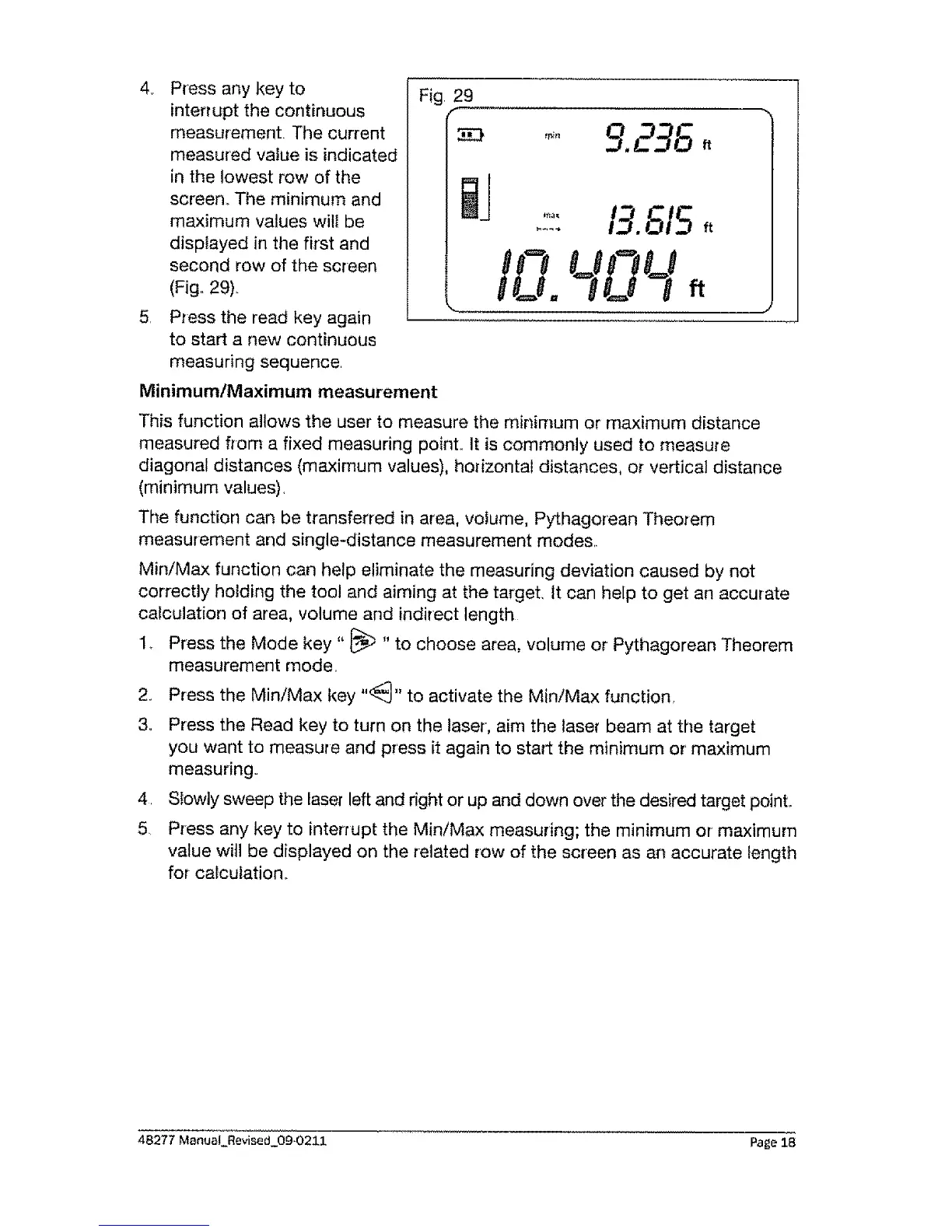

4._ Press any key to
interrupt the continuous
measurement. The current
measured value is indicated
in the lowest row of the
screen, The minimum and
maximum values will be
displayed in the first and
second row of the screen
(Fig.. 29)L
5. Press the read key again
to start a new continuous
measuring sequence.
Fig, 29
f
3_3
++o9.?95.
::: 13.515.
U¢'!!U ft
Minimum/Maximum measurement
This function allows the user to measure the minimum or maximum distance
measured from a fixed measuring point.. It is commonly used to measure
diagonal distances (maximum values), horizontal distances, or vertical distance
(minimum values).
The function can be transferred in area, volume, Pythagorean Theorem
measurement and single-distance measurement modes..
Min!Max function can help eliminate the measuring deviation caused by not
correctly holding the tool and aiming at the target, It can help to get an accurate
calculation of area, volume and indirect length
1.. Press the Mode key "_b "to choose area, volume or Pythagorean Theorem
measurement mode,
2. Press the Min/Max key "4" to activate the MiniMax function,
3. Press the Read key to turn on the laser, aim the laser beam at the target
you want to measure and press it again to start the minimum or' maximum
measuring..
4,
5.
S_owty sweep the rase[ left and right or up and down over the desired target point,.
Press any key to interrupt the Min/Max measuring; the minimum or maximum
value will be displayed on the related row of the screen as an accurate length
for calculation,,
482'/'7 ManuaLRevised 09-02$:L Page 18
