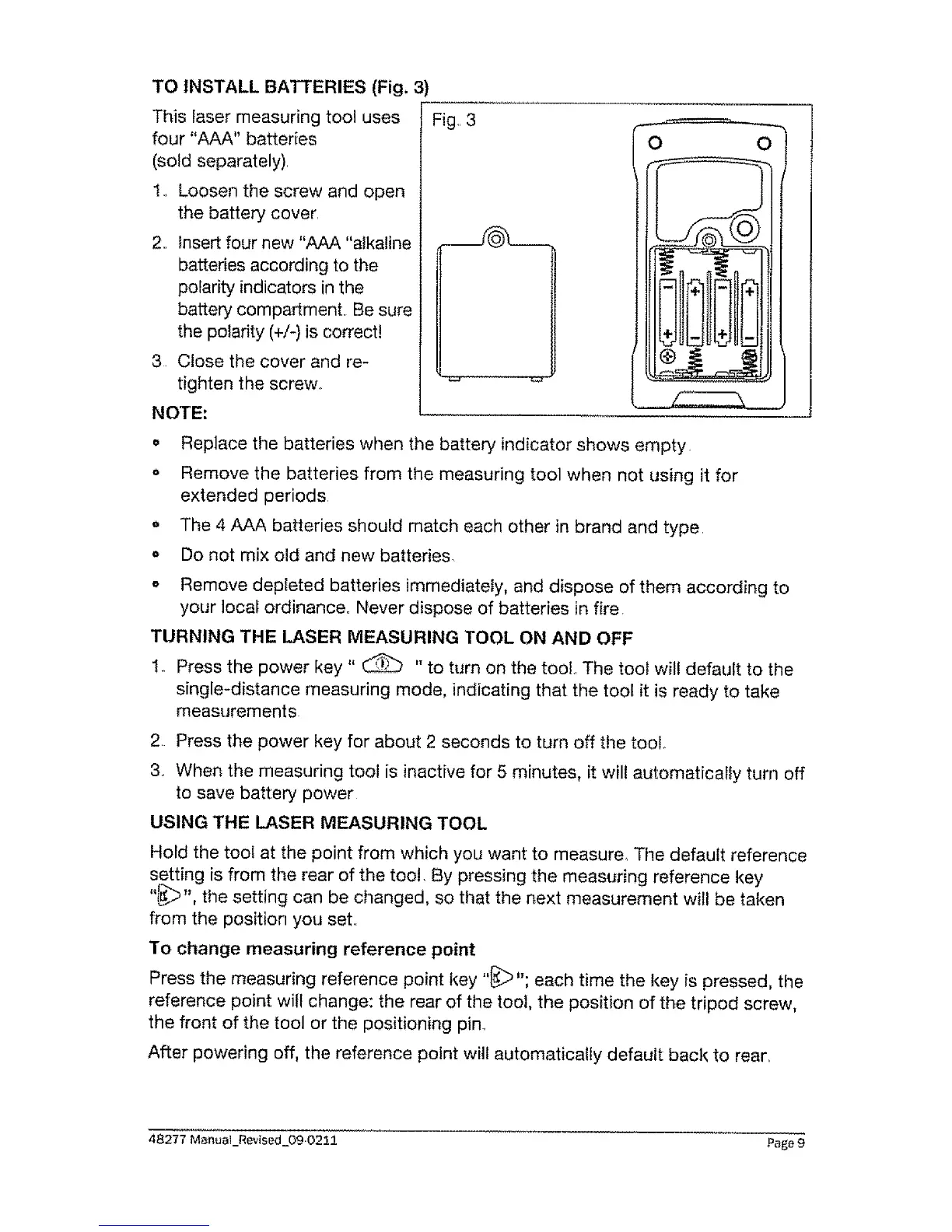

TO INSTALL BATTERIES (Fig. 3)
This laser measuring tool uses
four "P,AA" batteries
(sold separately),
t., Loosen the screw and open
the battery cover,
2,. Insert four new "AAA "alkaline
batteries according to the
polarity indicators in the
battery compartment, Be sure
the polarity (+/-)is correct!
3 Close the cover and re-
tighten the screw_
NOTE:
Fig,, 3
O O
= Replace the batteries when the battery indicator shows empty.
= Remove the batteries from the measuring tool when not using it for
extended periods
o The 4 AAA batteries should match each other in brand and type.
o Do not mix old and new batteries.
o Remove depleted batteries immediately, and dispose of them according to
your local ordinance,, Never dispose of batteries in fire.
TURNING THE LASER MEASURING TOOL ON AND OFF
I. Press the power key" _ "to turn on the tool., The tool wil! default to the
single-distance measuring mode, indicating that the tool it is ready to take
measurements
2 Press the power key for about 2 seconds to turn off the tool,
3., When the measuring tool is inactive for 5 minutes, it will automatically turn off
to save battery power
USING THE LASER MEASURING TOOL
Hold the too! at the point from which you want to measure., The default reference
setting is from the rear of the toot, By pressing the measuring reference key
"_", the setting can be changed, so that the next measurement will be taken
from the position you set..
To change measuring reference point
Press the measuring reference point key "_>"; each time the key is pressed, the
reference point will change: the rear of the tool, the position of the tripod screw,
the front of the tool or the positioning pin.,
After powering off, the reference point wilt automatically default back to rear,.
48277 Manual_Revised_09.02!1 Page 9
