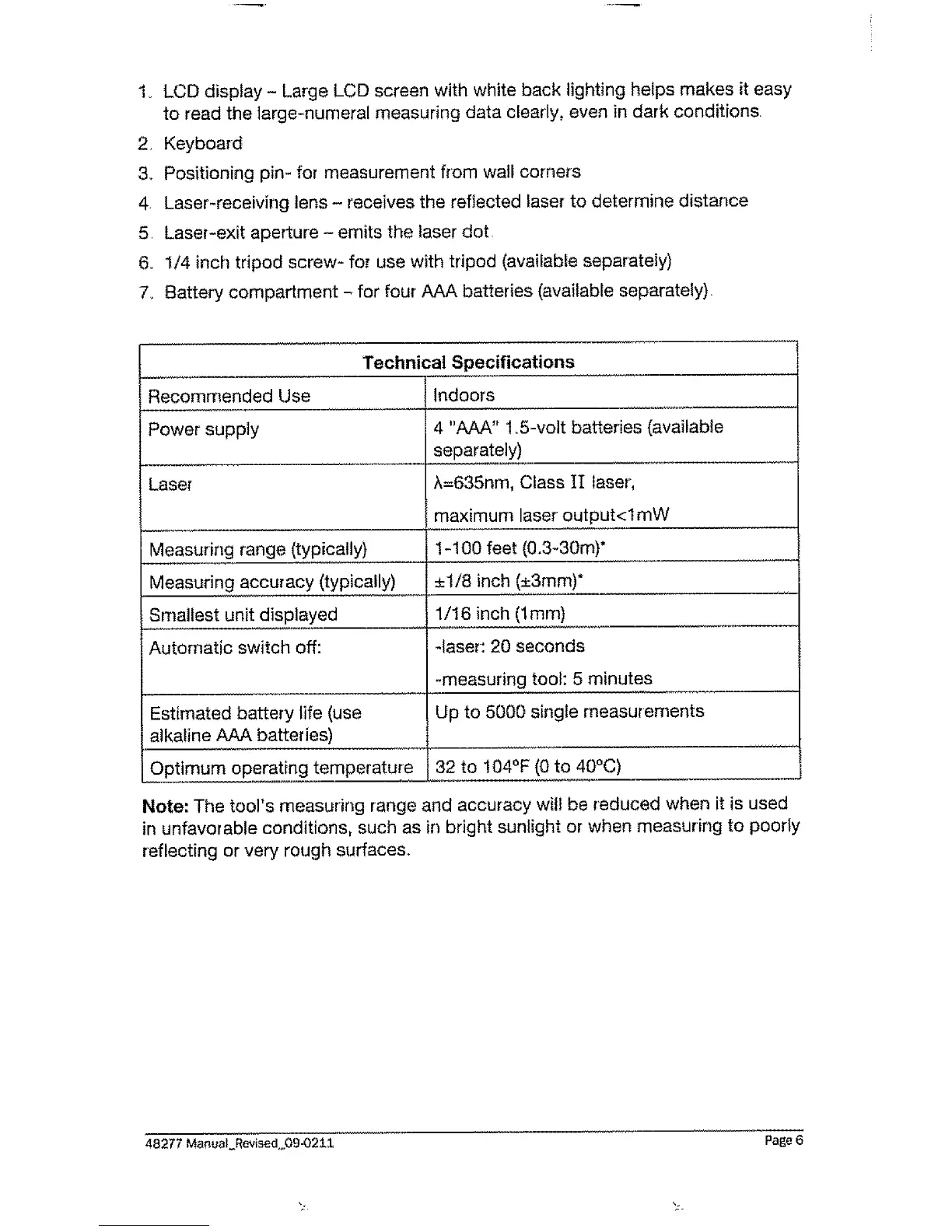

1. LCD display - Large LCD screen with white back lighting helps makes it easy
to read the large-numeral measuring data clearly, even in dark conditions.
2 Keyboard
3. Positioning pin- for measurement from wal_ comers
4. Laser-receiving lens- receives the reflected laser to determine distance
5 Laser-exit aperture - emits the laser dot.
6. 1/4 inch tripod screw- for use with tripod (available separately)
7. Battery compartment - for four A,&_,batteries (available separately).
Recommended Use
Power supply
Laser
Technical Specifications
Indoors
4 "AAA" 1.5-volt batteries (available
separately)
,k=635nm, Class I[ laser,
maximum laser output<ImW
Measuring range (typically) 1-100 feet (0.3-30m)*
Measuring accuracy (typically) ±1/8 inch (±3ram)*
Smallest unit displayed 1/16 inch (1ram)
Automatic switch off: -laser: 20 seconds
-measuring tool: 5 minutes
Estimated battery life (use Up to 5000 single measurements
alkaline AAA batteries)
Optimum operating temperature 32 to !04°F (0 to 40°C)
Note: The tool's measuring range and accuracy will be reduced when it is used
in unfavorable conditions, such as in bright sunlight or when measuring to poorly
reflecting or very rough surfaces.
48277 Mar_ual Revised 09-0215
Page6
