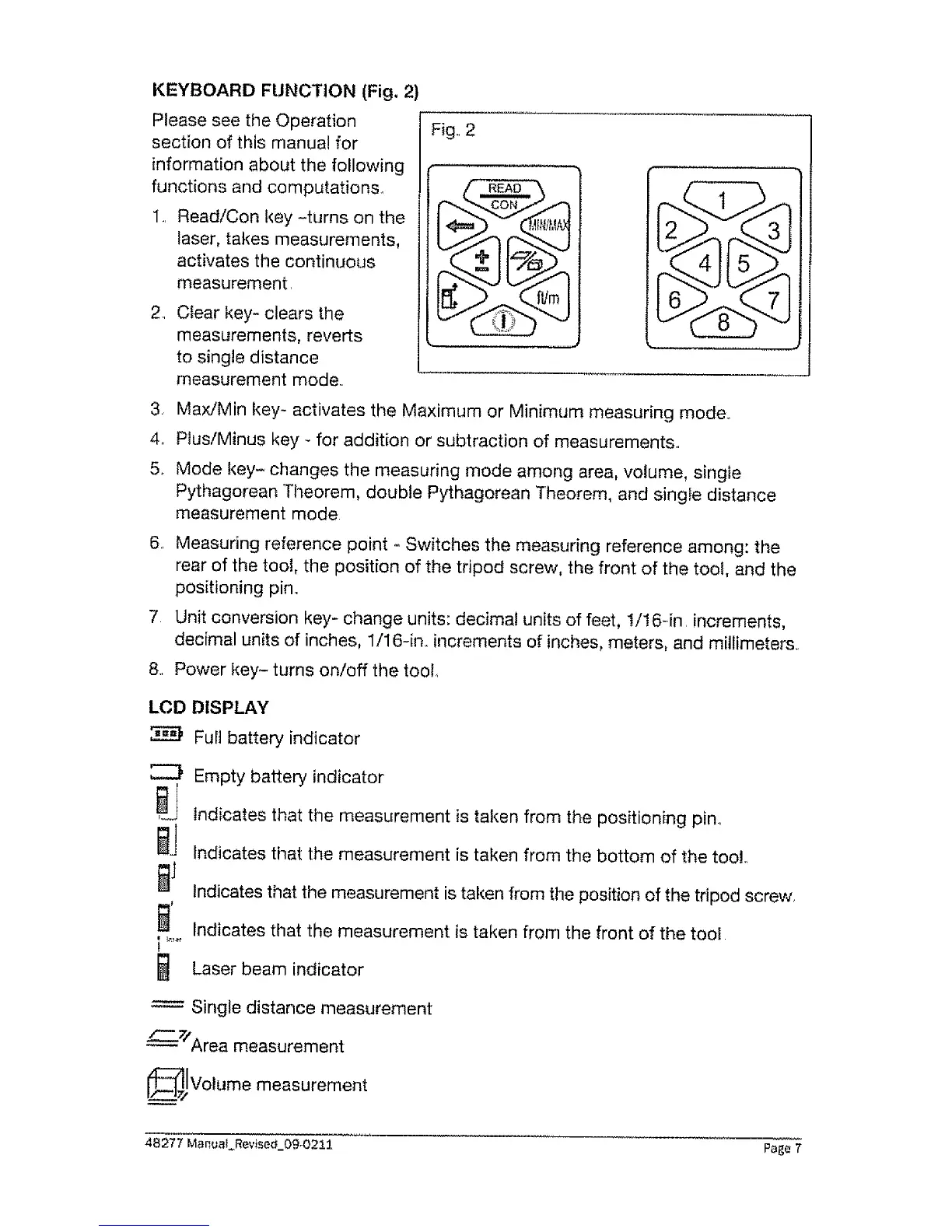

KEYBOARD FUNCTION (Fig, 2)
Please see the Operation
section of this manual for
information about the following
functions and computations..
1.. Read/Con key -turns on the
laser, takes measurements,
activates the continuous
measurement.
2., Clear key- clears the
measurements, reverts
to single distance
measurement mode,,
3. Max/Min key- activates the Maximum or Minimum measuring mode..
4_ Plus/Minus key - for addition or subtraction of measurements..
5 Mode key- changes the measuring mode among area, volume, single
Pythagorean Theorem, double Pythagorean Theorem, and single distance
measurement mode
6,,
7
Measuring reference point _ Switches the measuring reference among: the
rear of the toot, the position of the tripod screw, the front of the tool, and the
positioning pin..
Unit conversion key- change units: decimal units of feet, t/16-in, increments,
decimal units of inches, 1/16-in, increments of inches, meters, and millimeters,,
Power key- turns on/off the tool..
LCD DISPLAY
Full battery indicator
Empty battery indicator
_ indicates that the measurement is taken from the positioning pin..
_! Indicates that the measurement is taken from the bottom of the too!..
_J Indicates that the measurement is taken from the position of the tripod screw.
_' Indicates that the measurement is taken from the front of the tool
Laser beam indicator
Single distance measurement
_ZZArea measurement
Volume measurement
48277 Manual_Revised_09.0211 Page 7
