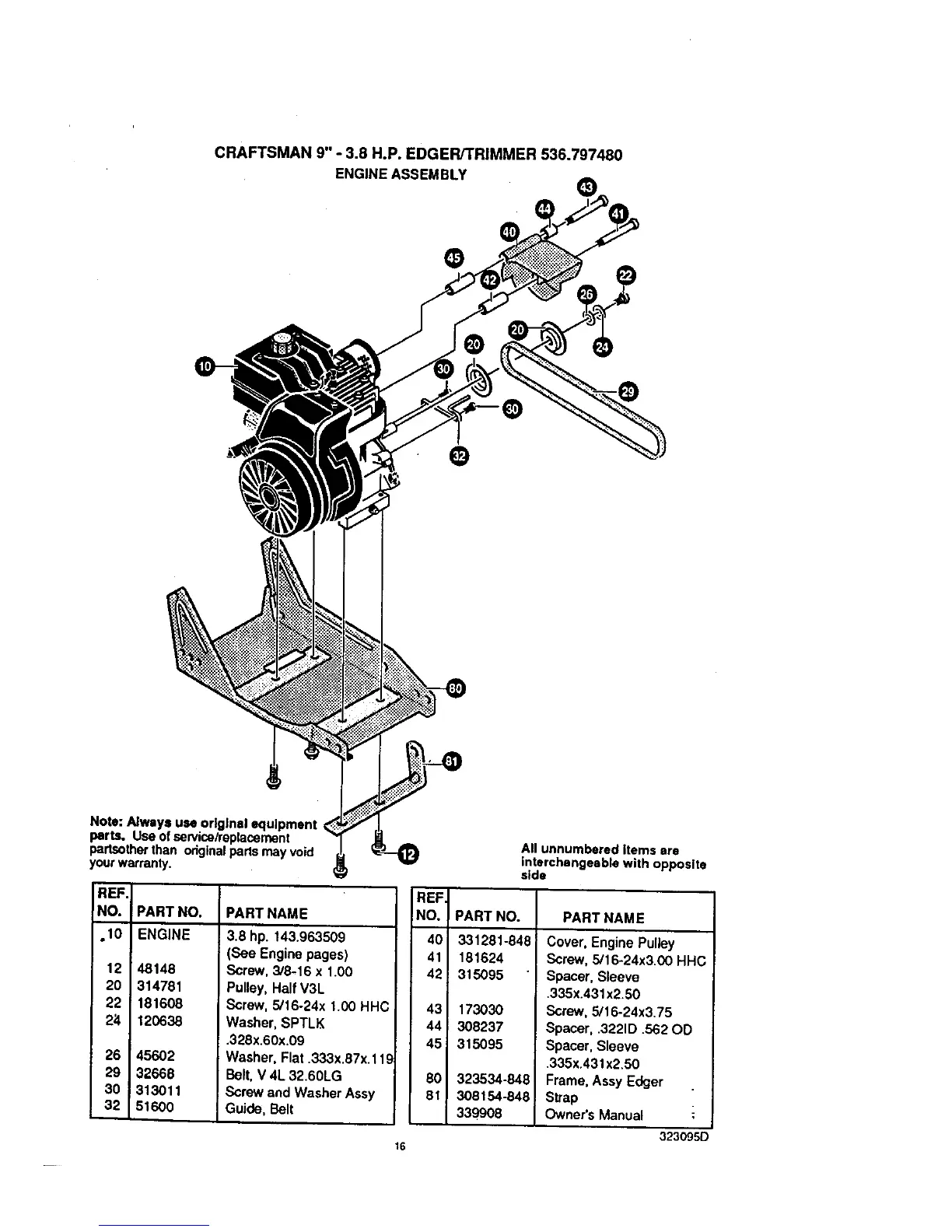

CRAFTSMAN 9" - 3.8 H.P. EDGER/TRIMMER 536.797480
ENGINE ASSEMBLY
Note: Nways use original equipment €
parts. Use of sewice/replacement
partsothar than odginal parts may void
your warranty.
REF. !
NO. PART NO.
.10 ENGINE
12
20
22
24
26
29
30
32
48148
314781
181608
120638
456O2
32668
313011
51600
PART NAME
3.8 hp. 143.963509
(See Enginepages)
Screw, 3/8-16 x 1.00
Pulley,Half V3L
Screw, 5/16-24x 1.00 HHC
Washer, SPTL_
.328x.60x.09
Washer, Flat .333x.87x.119
Belt,V 4L 32.60LG
: Screw and Washer Ass]/
Guide, Belt
All unnumbered items ere
interchangeable with opposite
side
REF.
NO. PART NO. PART NAME
40 331281-848
41 181624
42 315095
43 173030
44 308237
45 315095
80 323534-848
81 308154-848
339908
Cover, Engine Pulley
Screw, 5/16-24x3.00 HHC
Spacer, Sleeve
.335x.431x2.50
Screw, 5/16-24x3.75
Spacer, .3221D.562OD
Spacer, Sleeve
.335x.431x2,50
Frame, Assy Edger
Strap
Owner'sManual
323095D
