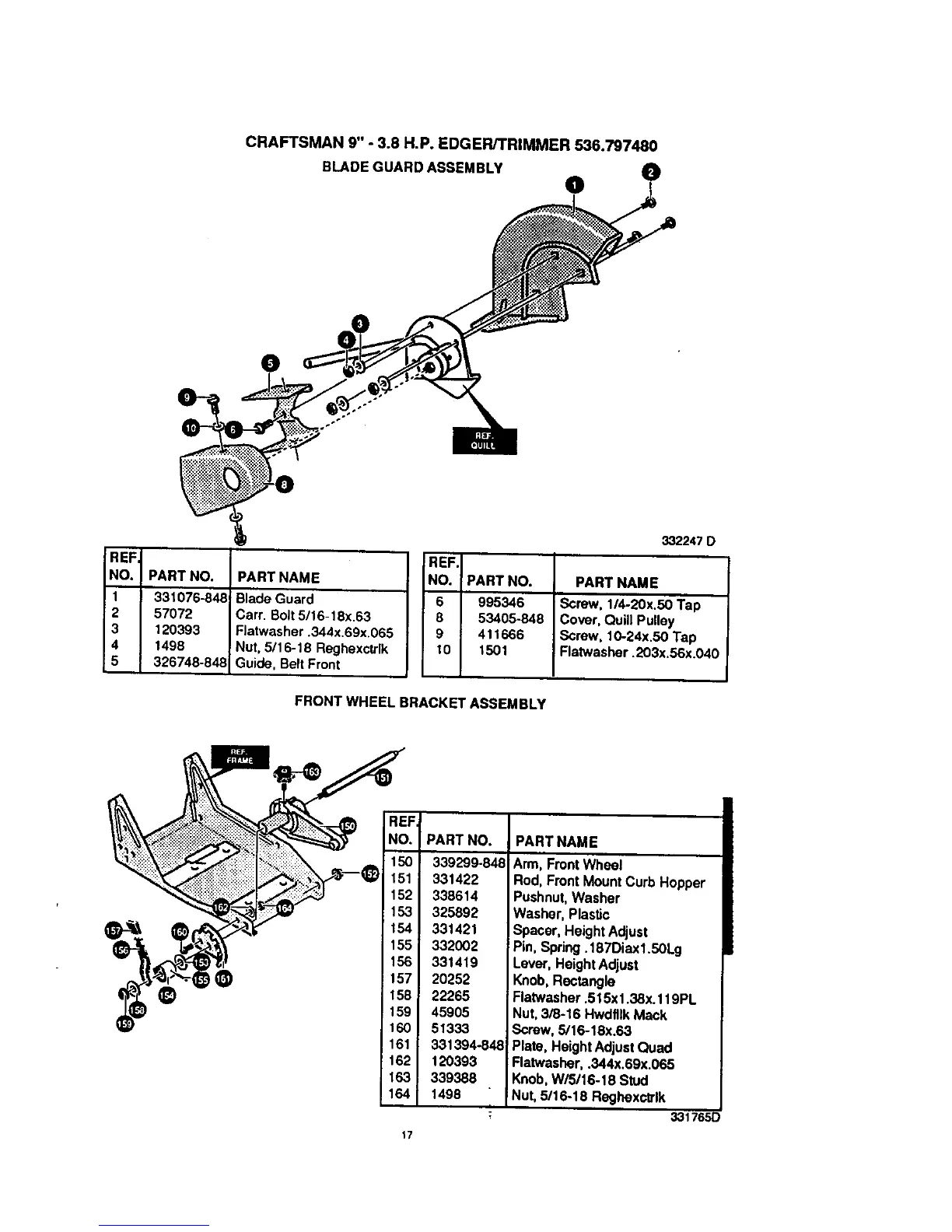

CRAFTSMAN 9" - 3.8 H.P. EDGER/TRIMMER 536.797480
BLADE GUARD ASSEMBLY O
O
O
REF.
NO. PART NO. PART NAME
1 331076-848 Blade Guard
2 57072 Cart. Bolt5/16-18x.63
3 120393 Flatwasher .344x.69x.065
4 1498 Nut, 5/16-18 Reghexctrlk
5 326748-848 Guide, BertFront
332247D
PART NAME
!REF.
NO. PART NO.
6 995346
8 53405-848
9 411666
10 _5Ol
Screw, 1/4-20x.50 Tap
Cover, Quil| Pultey
Screw, 10-24x.50 Tap
Flatwasher .203x.56x.040
FRONT WHEEL BRACKET ASSEMBLY
REF
NO. PART NO. PART NAME
150 339299-848
151 331422
152 338614
153 325892
154 331421
155 332002
156 331419
157 20252
158 22265
159 45905
160 51333
161 331394-84_
162 I 120393
163 339388
164 1498
Arm, FrontWheel
Rod, Front MountCurb Hopper
Pushnut,Washer
Washer, Plastic
Spacer, HeightAdjust
Pin, Spring.187Diax1.50Lg
Lever, HeightAdjust
Knob,Rectangle
Flatwasher .515x1.38x.119PL
Nut,3/8-16 HwdfllkMack
Screw. 5/16-18x.63
Plate, HeightAdjustQuad
Flatwasher, .344x.69x.065
Knob,W/5/16-18 Stud
Nut,5/16-18 Reghexctr_
