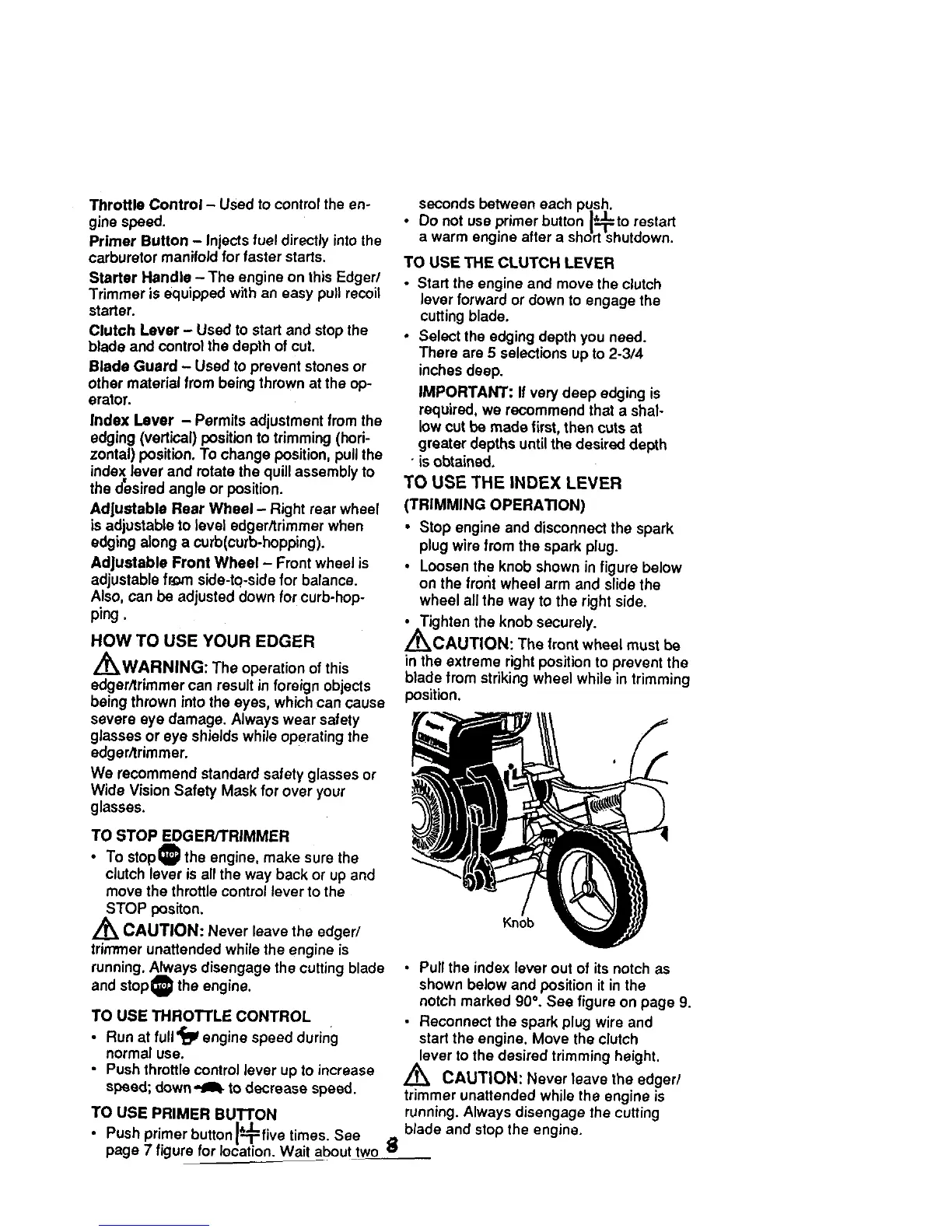

Throttle Control - Used to control the en-
gine speed.
Primer Button - Injects fuel directly into the
carburetor manifold for faster starts,
Starter Handle -The engine on this Edger/
Trimmer is equipped with an easy pull recoil
starter.
Clutch Lever - Used to start and stop the
blade and control the depth of cut.
Blade Guard - Used to prevent stones or
other material from being thrown at the op-
erator.
Index Lever - Permits adjustment from the
edging (vertical) position to trimming (hori-
zontal) position. To change position, pull the
index lever and rotate the quill assembly to
the _esired angle or position.
Adjustable Rear Wheel - Right rear wheel
is adjustable to level edger/trimmer when
edging along a curb(curb-hopping).
Adjustable Front Wheel - Front wheel is
adjustable fr_ side-to-side for balance.
Also, can be adjusted down for curb-hop-
ping.
HOWTO USE YOUR EDGER
LL_WARNING: The operation of this
edger/trimmer can result in foreign objects
being thrown into the eyes, which can cause
severe eye damage. Always wear safety
glasses or eye shields while operating the
edger/trimmer.
We recommend standard safety glasses or
Wide Vision Safety Mask for over your
glasses.
TO STOP EDGER/TRIMMER
• To stopO the engine, make sure the
clutch lever is all the way back or up and
move the throttle control lever to the
STOP pesiton.
Z_ CAUTION: Never leave the edger/
trimmer unattended while the engine is
running. Always disengage the cutting blade
and stopl_ the engine.
TO USE THROTTLE CONTROL
• Run at full'_ engine speed during
normal use.
• Push throttle control lever up to increase
speed; down _ to decrease speed.
TO USE PRIMER BUTTON
seconds between each push.
• Do not use primer button I._.to restart
a warm engine after a short shutdown.
TO USE THE CLUTCH LEVER
• Start the engine and move the clutch
lever forward or down to engage the
cutting blade•
• Select the edging depth you need.
There are 5 selections up to 2-3/4
inches deep.
IMPORTANT: If very deep edging is
required, we recommend that a shal-
low cut be made first, then cuts at
greater depths until the desired depth
• is obtained.
TO USE THE INDEX LEVER
(TRIMMING OPERATION)
• Stop engine and disconnect the spark
plug wire from the spark plug.
• Loosen the knob shown in figure below
on the fror_t wheel arm and slide the
wheel all the way to the right side.
• Tighten the knob securely.
Z_CAUTION: The front wheel must be
in the extreme right position to prevent the
blade from striking wheel while in trimming
position.
Knob
• Pull the index lever out of its notch as
shown below and position it in the
notch marked 90 °. See figure on page 9.
• Reconnect the spark plug wire and
start the engine. Move the clutch
lever to the desired trimming height.
,Z_ CAUTION: Never leave the edger/
trimmer unattended while the engine is
running. Always disengage the cutting
• Push primer button ]._-five times. See _ blade and stop the engine.
page 7 figure for location. Wait about two
