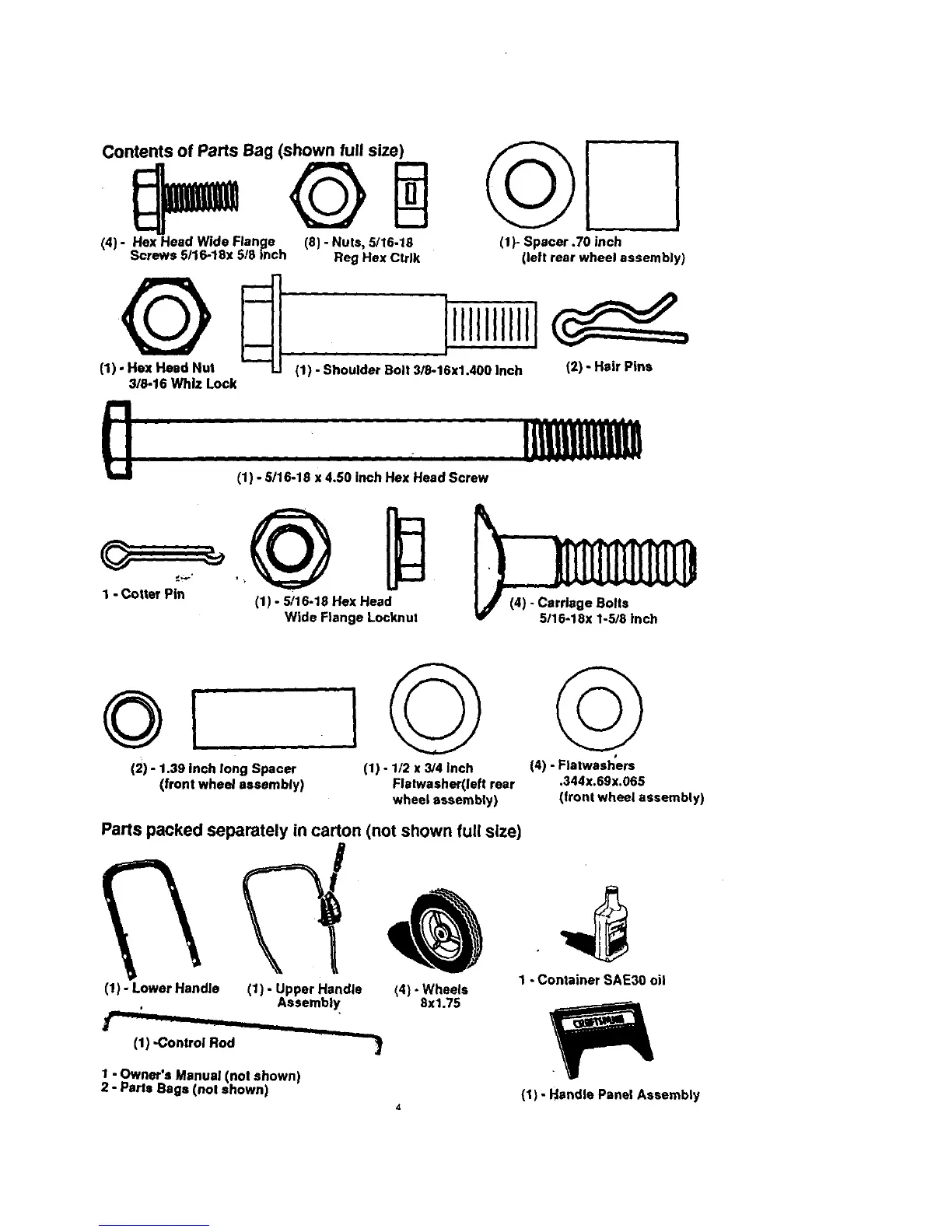

(4) - Hex Head Wide Flan_le (8) - Nuts, 5/16-18 (1)- Spacer .70 inch
Screws 5/16-18x 5/8 inch Reg Hex CtrJk {left rear wheel assembly)
3/8-16 Whiz Lock
Illllilillll
(1) - Shoulder Bolt 3/6-16xl.400 inch (2) - Hair Pins
£'!
il
%.1
I
(1) - 5/16-18 x 4.50 inch Hex Head Screw
o
1 -O._tt_ Pin (1) - 5/16-18 Hex Head
Wide Flange Locknul
(4) - Carriage Bolts
5/16-18x 1-5/8 inch
©!
(2) - 1.39 Inch I°ng Spacer
(front wheel assembly)
(1) - 1/2 x 3/4 inch
Flatwasher(left rear
wheel assembly)
Parts packed separately in carton (not shown full size)
(1) - Lower Handle
(1) - Upper Handle
Assembly
i4) - Wheels
8xl.75
I - Owner's Manual (not shown)
2 - Parle Bags (not shown)
0
(4) - Flatwashers
.344x.69x.065
(front wheel assembly)
1 - Container SAE30 oil
(1) - Handle Panel Assembly
To Next Page
