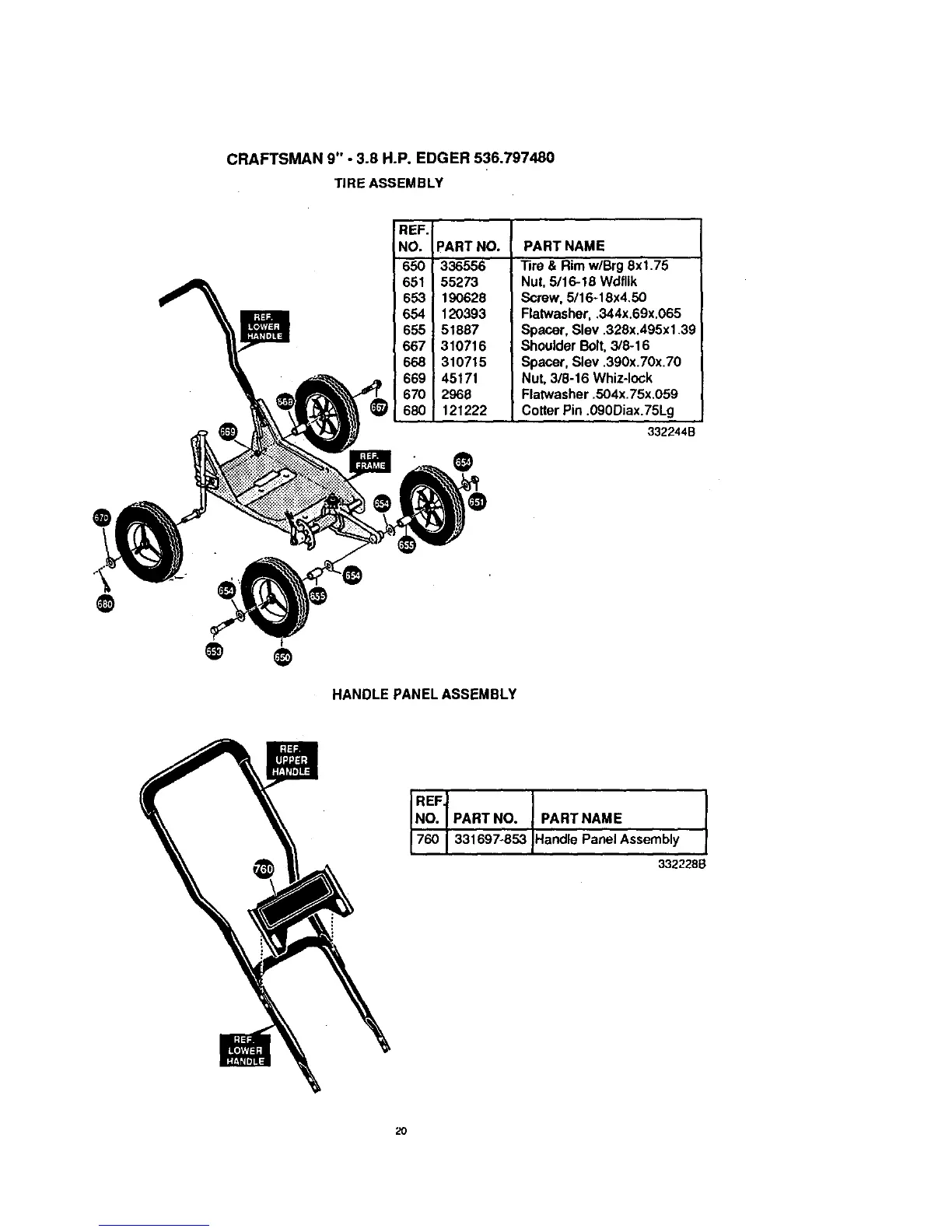

CRAFTSMAN 9" - 3.8 H.P. EDGER 536.797480
TIRE ASSEMBLY
REF.
NO. PART NO.
650 336556
651 55273
653 190628
654 120393
655 51887
667 310716
668 1310715
669 45171
670 2968
680 121222
PART NAME
Tire & Rim w/Brg8xl .75
Nut,5/16-18 Wdflik
Screw, 5/16-18x4.50
Flatwasher,.344x.69x.065
Spacer, Slev .328x.495x1.39
Shoulder Bolt,3/8-16
Spacer, Slev .390x.70x.70
Nut,3/6-16 Whiz-lock
Flatwasher.504x.75x,059
CotterPin .090Diax.75Lg
332244B
@
@
@
HANDLE PANEL ASSEMBLY
REF,
NO. / PART NO. PART NAME
760 I 331697-853 Handle Panel Assembly
332228B
2O
