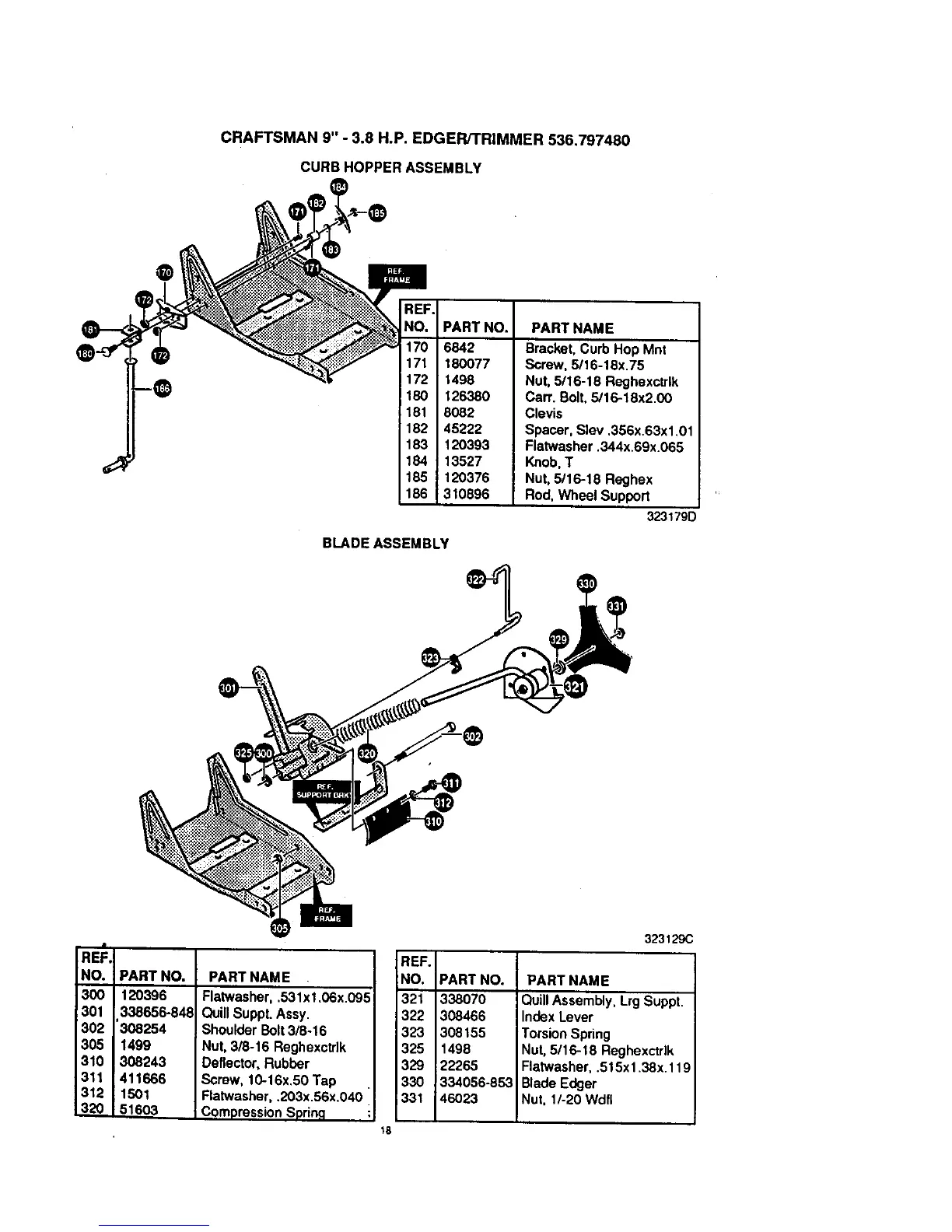

CRAFTSMAN 9" - 3.8 H.P. EDGER/TRIMMER 536.797480
CURB HOPPER ASSEMBLY
REF.
NO. PART NO.
L17o 6842
171 18oo77
172 1498
18o 126380
181 8082
182 45222
183 12o393
184 13527
185 t20376
186 310896
PART NAME
Bracket,Curb Hop Mnt
Screw, 5/16- t8x.75
Nut,5/16-18 Reghexctrlk
Cart. Bolt,5/16-18x2.00
Clevis
Spacer,Slev .356x.63x1.01
Flatwasher .344x.69x.065
Knob,T
Nut, 5/16-18 Reghex
Rod, Wheel Support
323179D
BLADE ASSEMBLY
REF
NO.
3OO
301
302
305
310
311
312
320
PART NO.
120396
338656-848
308254
1499
308243
411666
1501
51603
PART NAME
Flatwasher,.53lx 1.06x.095
QuillSuppt.Assy.
ShoulderBolt3/8-16
Nut,3/8-16 Reghexctdk
Deflector,Rubber
Screw, 10-16x.50 Tap
Flatwasher,.203x.56x.040
CompressionStodng
REF.
NO.
321
322
323
325
329
330
331
_8
323129C
PART NAMEPART NO.
338070
308466
308155
1498
22265
334056-853
46023
Quill Assembly, LrgSuppt.
IndexLever
TorsionSpring
Nut,5/16-18 Reghexctrlk
Flatwasher,.515x1.38x.119
BladeEdger
Nut, 1/-20 Wdfl
