Craftsman 917.292392 User Manual

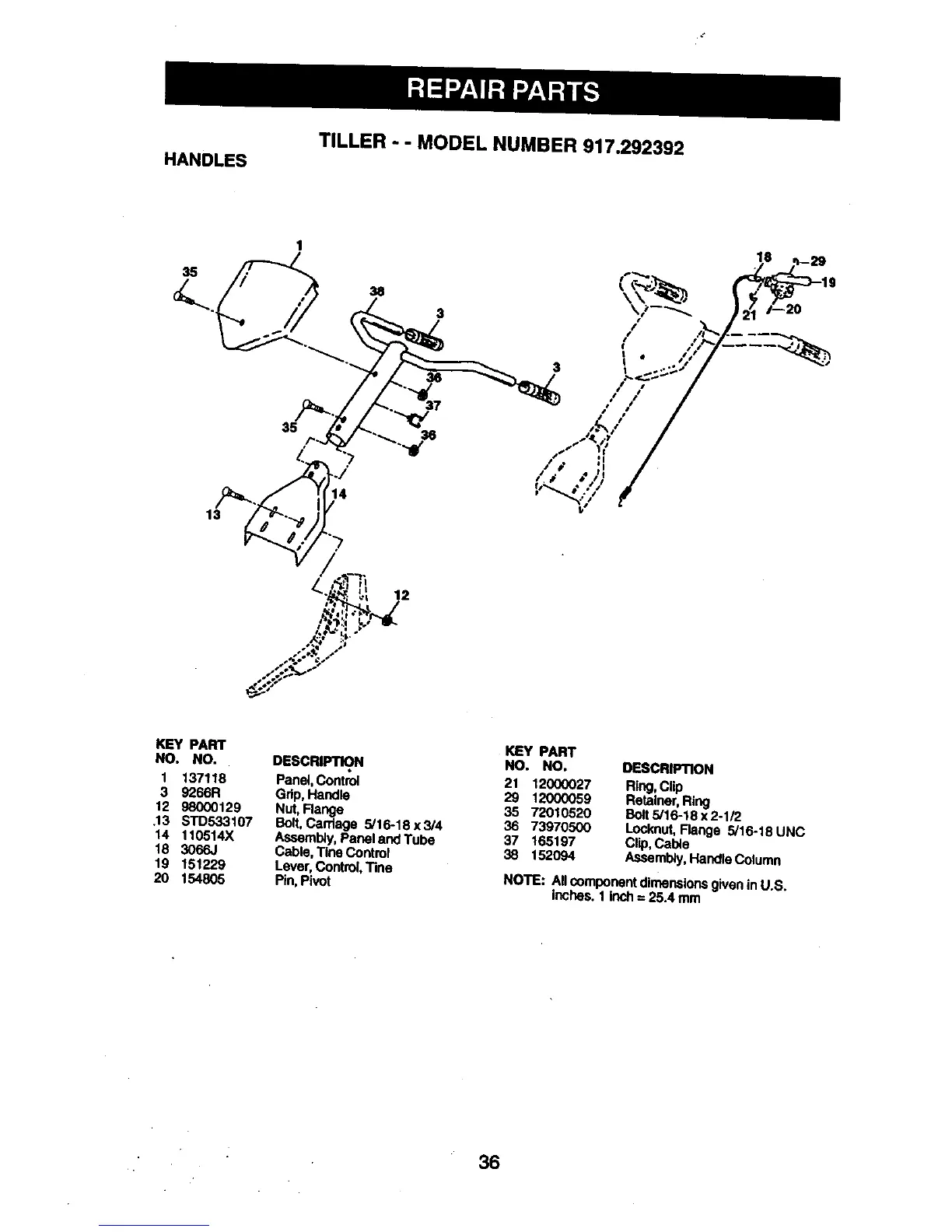

HANDLES
TILLER - - MODEL NUMBER 917.292392
35
3
16
KEY PART
NO. NO. DESCRIPTI_.
1 137118 Panel, Control
3 9266R Grip,Handle
12 98000129 Nut, Flange
.13 STD533107 Bolt,Can'iage 5/16-18x3/4
14 110514X Assembly, Panel and Tube
18 3066J Cable, Tine Control
19 151229 Lever, Control, Tine
20 154805 Pin,Pivot
KEY PART
NO. NO.
21 12000027
29 12000059
35 72010520
36 73970500
37 165197
38 152094
DESCRIPTION
Ring,Clip
Retainer, Ring
Bolt 5/16-18 x 2-1/2
Locknut,Flange 5/16-18 UNC
Clip, Cable
Assembly,Handle Column
NOTE: All component dimensionsgiven inU.S.
inches. 1 inch = 25.4 mm
36
