Craftsman 917.292392 User Manual

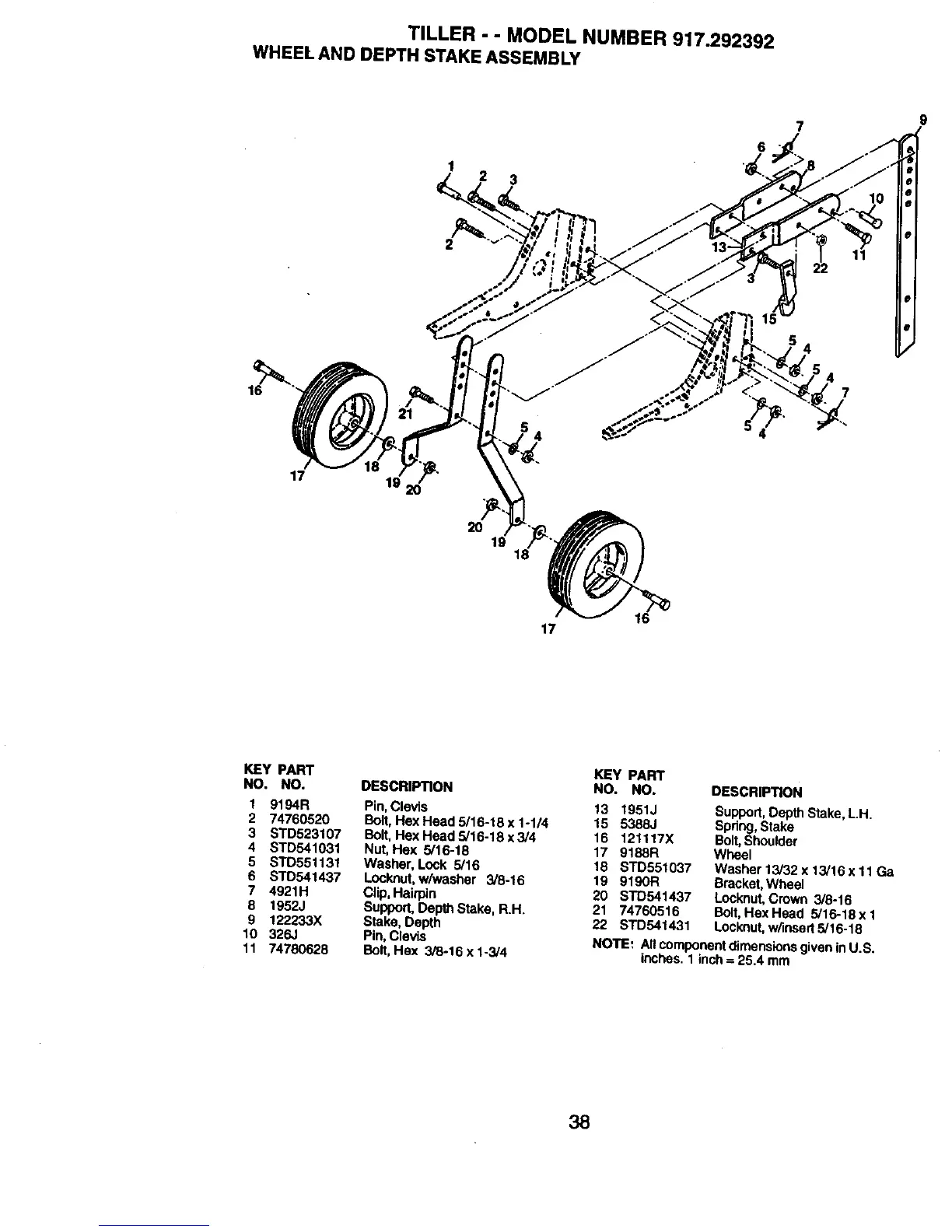

TILLER - - MODEL NUMBER 917.292392
WHEEL AND DEPTH STAKEASSEMBLY
3
6
7
2
16
7
17
2O
20
19
18
5
17
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 9194R Pin,Clevis 13 19513
2 74760520 Bolt, Hex Head 5/16-18 x1-1/4 15 5388J
3 STD523107 Bolt, HexHeadS/16-18x3/4 16 121117X
4 STD541031 Nut, Hex 5/16-18 17 9188R
5 STD551131 Washer, Lock 5/16 18 STD551037
6 STD541437 Locknut,w/washer 3/8-16 19 9190R
7 4921H Clip, Hairpin 20 STD541437
8 1952J Support,Depth Stake, R.H. 21 74760516
9 122233X Stake, Depth 22 STD541431
10 326J Pin,Clevis
11 74780628 Bolt, Hex 3/8-16xl-3,'4
Support,Depth S_ake,L.H.
Spring, Stake
Bolt,Shoutder
Wheel
Washer 13/32 x 13/16 x 11 Ga
Bracket, Wheel
Locknut,Crown 3/8-16
Bolt,Hex Head 5/16-18 x 1
Locknut,w/Insert 5/16-18
NOTE'. At!componentdimensionsgiven !n U.S.
inches. 1 inch = 25.4 mm
38
