These symbols may appear on your "1311eror in literature supplied with the product. Learn
and understand their meeting.

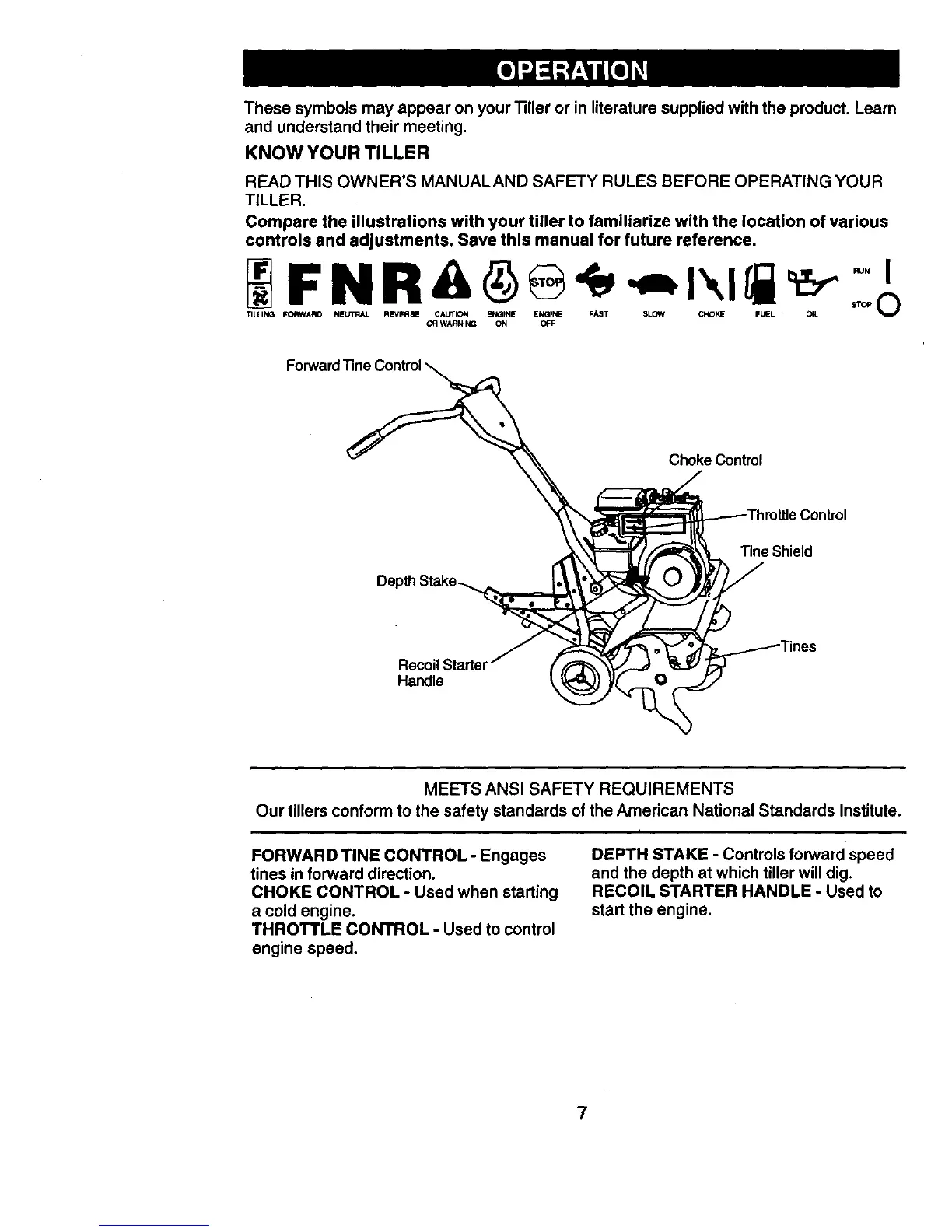

KNOW YOUR TILLER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
TILLER.
Compare the illustrations with your tiller to familiarize with the location of various
controls and adjustments. Save this manual for future reference,
TILLING FORWARD NEUTRAL REVERSE CALq'K3N ENG_NIE ENGINE CHOKE OiL
OR WARNING ON _F
Choke Control
TineShield
Recoil Starter
Handle
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
FORWARD TINE CONTROL- Engages
tines in forward direction.
CHOKE CONTROL - Used when starting
a cold engine.
THROTTLE CONTROL - Used to control
engine speed.
DEPTH STAKE - Controls forward speed
and the depth at which tiller will dig.
RECOIL STARTER HANDLE - Used to
start the engine,
7
