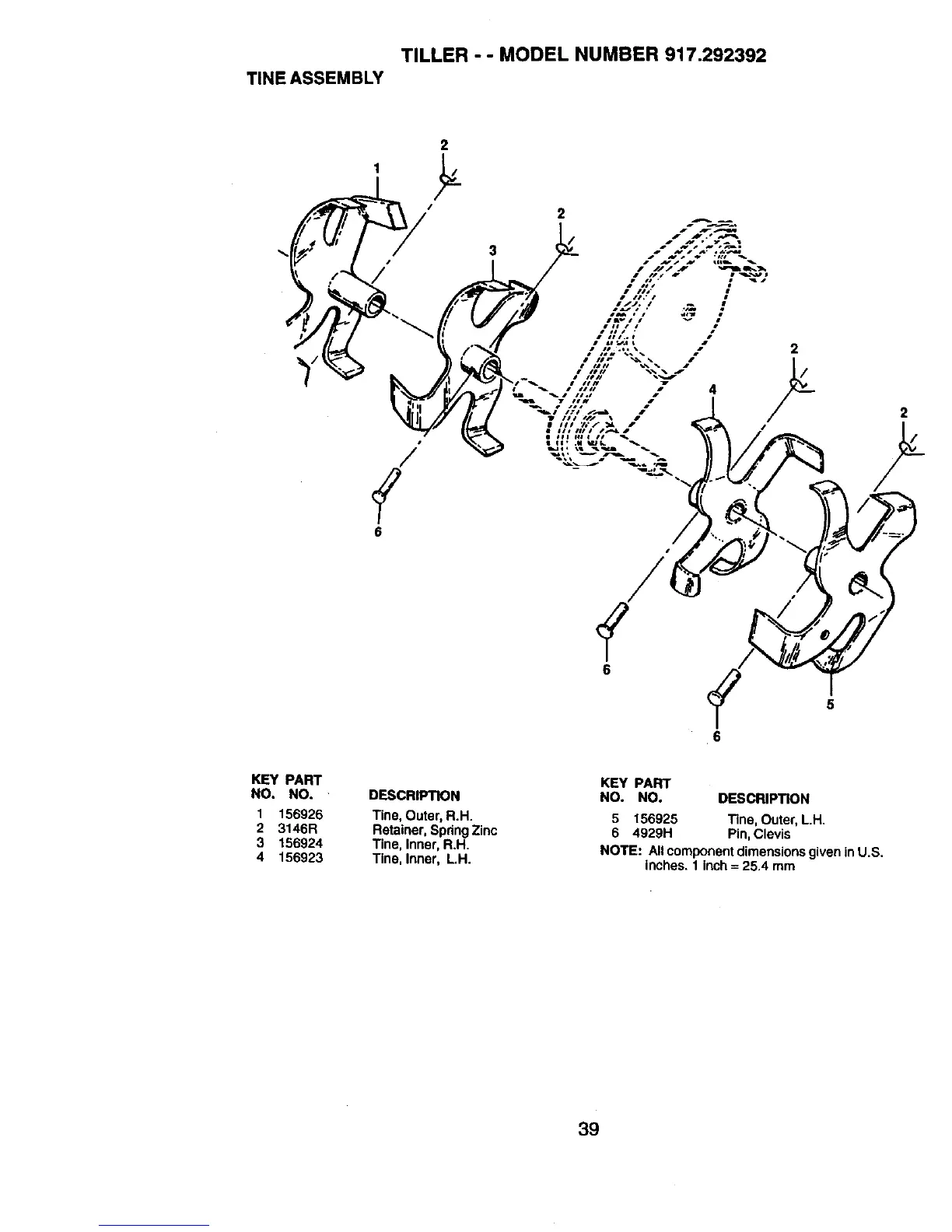

TILLER -- MODEL NUMBER 917.292392
TINE ASSEMBLY
2
/
/
6
6
6
KEY PART
NO. NO.
1 156926
2 3146R
3 156924
4 156923
DESCRIPTION
Tine, Outa_ R.H.
Retainer, SpdngZinc
Tine, lnner, R.H.
Tine, lnner, LH.
KEY PART
NO. NO. DESCRIPTION
5 156925 Tine, Outer, L.H.
6 4929H Pin,Clevis
NOTE: All component dimensionsgiven inU.S.
inches. 1 inch = 25.4 mm
39
