Craftsman 917.292392 User Manual

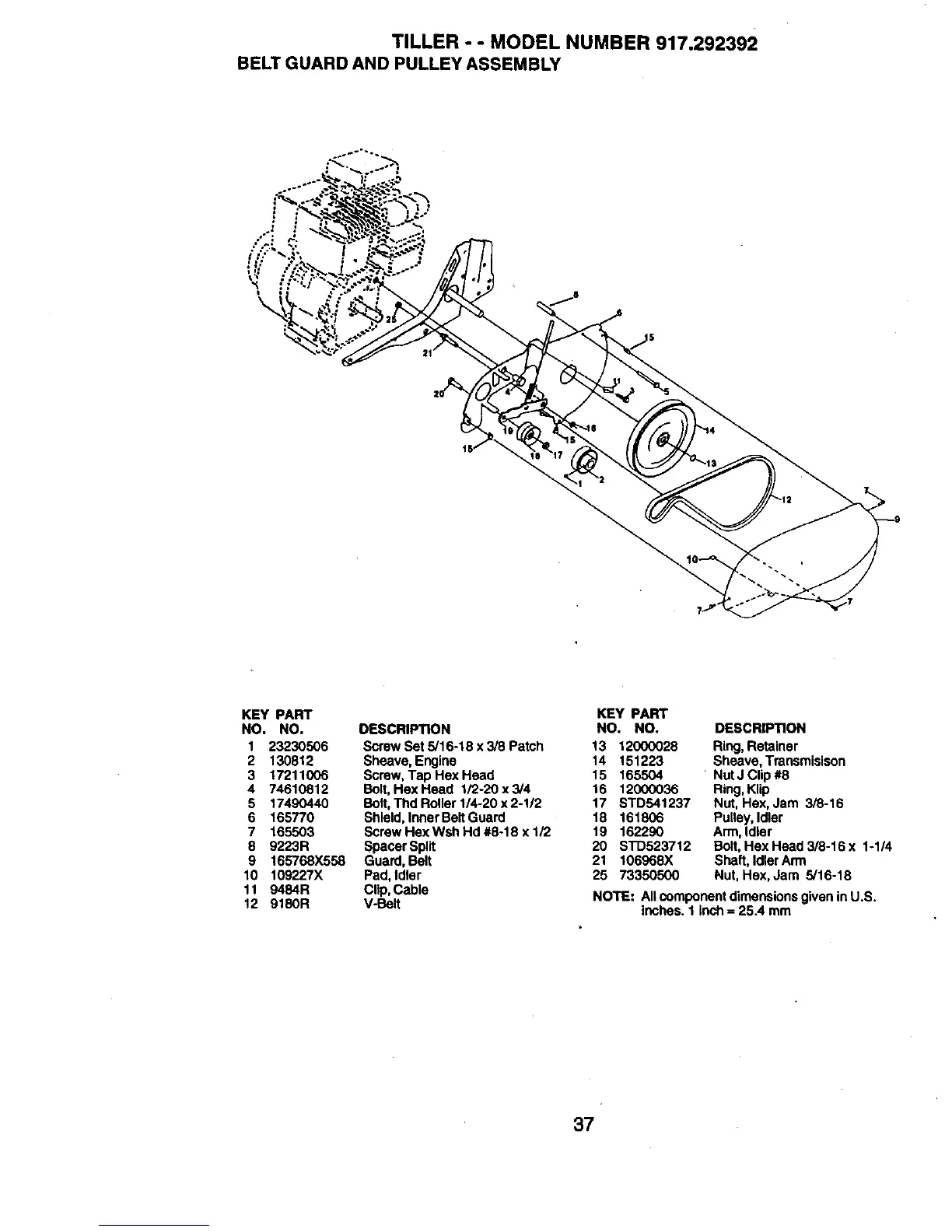

TILLER - - MODEL NUMBER 917.292392
BELTGUARDAND PULLEYASSEMBLY
\
KEY PART
NO, NO.
1 23230506
2 130812
3 17211006
4 74610812
5 17490440
6 165770
7 165503
8 9223R
9 165768X558
10 109227X
11 9484R
12 9180R
DESCRIPTION
Screw Set 5/16-18 x 3/8 Patch
Sheave, Engine
Screw, Tap Hex Head
Bolt,Hex Head 1/2-20 x 3/4
Bolt, Thd Roller 1/4-20 x 2-1t2
Shield, Inner BeltGuard
Screw Hex Wsh Hd #8-18 x 1/2
Spacer Split
Guard, Belt
Pad, Idler
Clip, Cable
V-Bolt
KEY PART
NO. NO. DESCRIPTION
13 12000028 Ring, Retainer
14 151223 Shaave, Transmisison
15 165504 Nut J Clip #8
16 12000036 Ring, Klip
17 STD541237 Nut, Hex, Jam 3/8-16
18 161806 Pulley,Idler
19 162290 Arm, Idler
20 STD523712 Bolt,HexHead3/8-16x 1-1/4
21 106968X Shaft, IdlerArm
25 73350500 Nut, Hex, Jam 5/16-18
NOTE: All componentdimensions given in U.S.
inches. 1 inch = 25.4 mm
37
