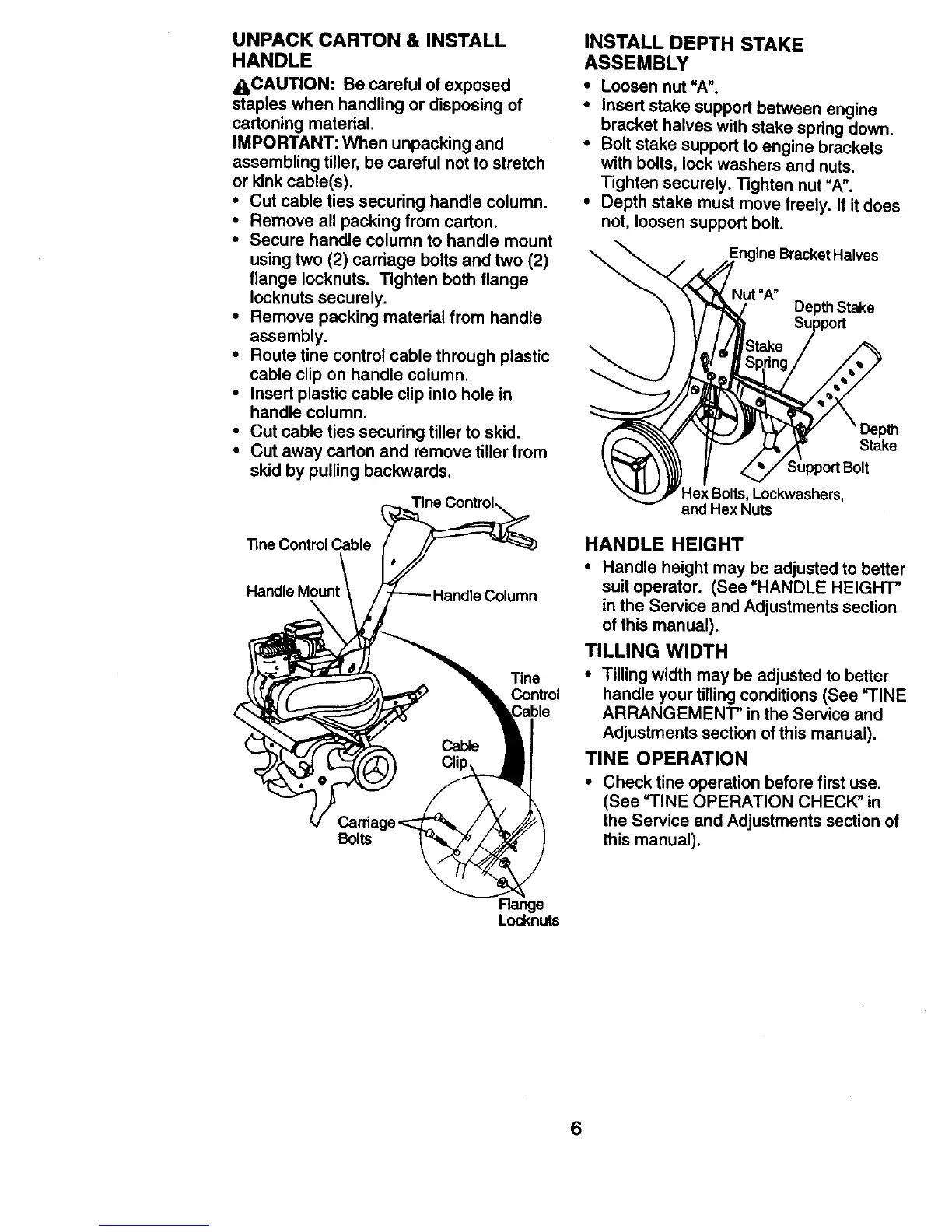

UNPACK CARTON & INSTALL
HANDLE
ACAUTION: Be careful ofexposed
staples when handling or disposing of
cartoning matedal.
IMPORTANT: When unpacking and
assembling tiller, be careful not to stretch
or kink cable(s).
• Cut cable ties securing handle column.
• Remove all packing from carton.
• Secure handle column to handle mount
usingtwo (2) carriage bolts and two (2)
flange Iocknuts. Tighten both flange
Iocknuts securely.
• Remove packing material from handle
assembly.
• Route tine control cable through plastic
cable clip on handle column.
• Insert plastic cable clipinto hole in
handle column.
• Cut cable ties securing tiller to skid.
• Cut away carton and remove tiller from
skid by pulling backwards.
Tine Control_
"5neControlCable
Column
Tine
Control
Bolts
INSTALL DEPTH STAKE
ASSEMBLY
• Loosen nut "A'.
• Insert stake supportbetween engine
bracket halves with stake springdown.
• Bolt stake support to engine brackets
with bolts, lock washers and nuts.
Tighten securely. Tighten nut =A".
• Depth stake must move freely. If it does
not, loosen support bolt.
alves
_lut=A"
DepthStake
Stake
Hex Bolts,Lockwashers,
and Hex Nuts
HANDLE HEIGHT
• Handle height may be adjusted to better
suit operator. (See =HANDLE HEIGHT"
in the Service and Adjustments section
of this manual).
TILLING WIDTH
• Tilling width may be adjusted to better
handle your tillingconditions (See "-I'INE
ARRANGEMENT" in the Service and
Adjustments section ofthis manual).
TINE OPERATION
• Check tine operation before first use.
(See "I'INE OPERATION CHECK" in
the Service and Adjustments section of
this manual).
Locknuts
6
