Craftsman Garage Door Opener User Manual

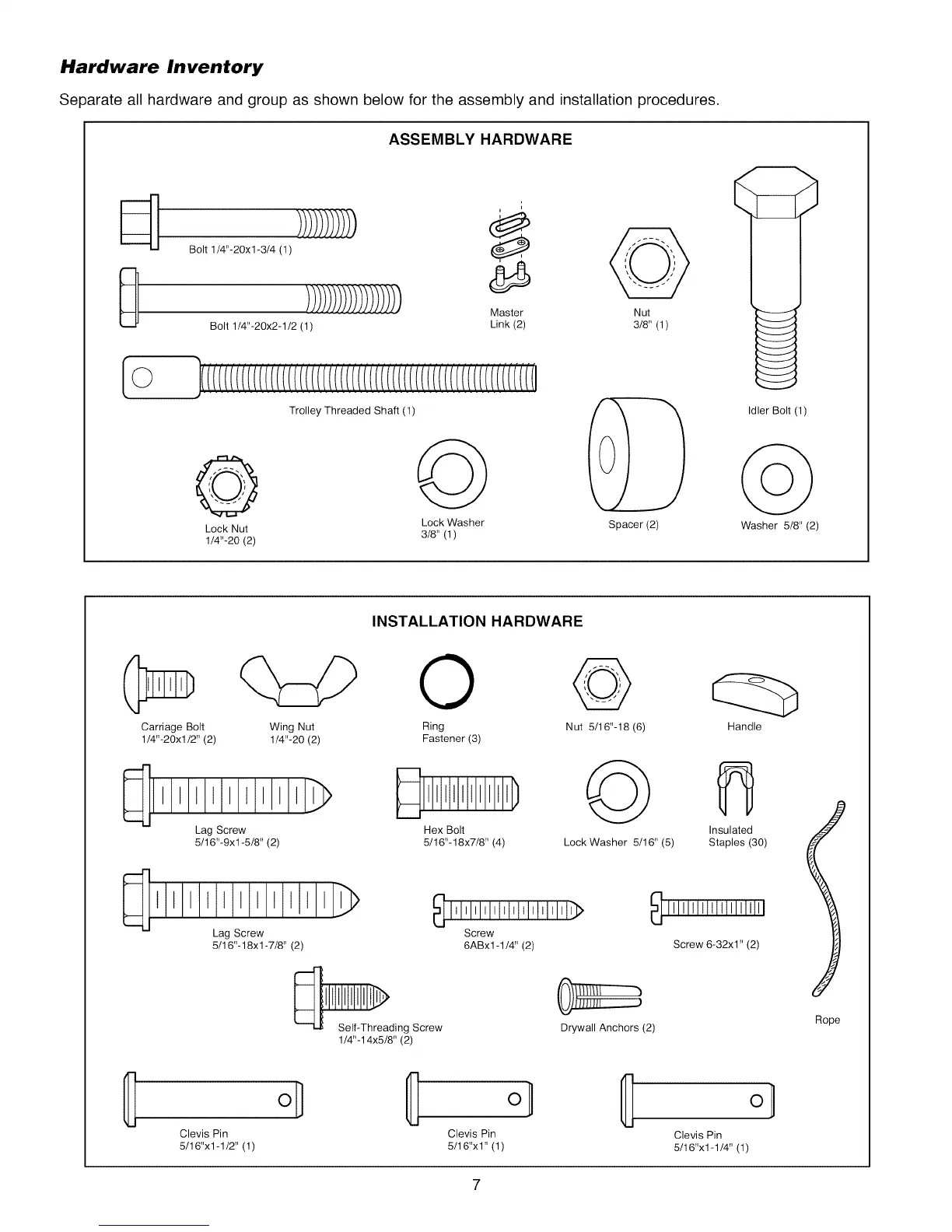

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
i
Bolt 1/41'-20x 1-3/4 ( 1 ) )))iilill_)
Master
Bolt 1/4'-20x2-1/2 (1) Link (2)
Nut
3/8" (1)
Trolley Threaded Shaft (1) _ _1
Lock Washer Spacer (2)
Lock Nut 3/8" (1)
1/4"-20 (2)
Idler Bolt (1)
Washer 5/8" (2)
INSTALLATION HARDWARE
Carriage Bolt
1/4'-20xl/2' (2)
0
Wing Nut Ring
1/4"-20 (2) Fastener (3)
11IIIIIII1_
Lag Screw
5/16"-9xl -5/8" (2)
111IIIIIIII1_
Lag Screw
5/16"-18xl -7/8" (2)
[IIIIIIIII1_
Hex Bolt
5/16"-18x7/8" (4)
Nut 5/16"-18 (6)
Self-Threading Screw
1/4"-14x5/8" (2)
Lock Washer 5/16" (5)
Screw
6ABx1-1/4' (2)
IIII/I J
Drywall Anchors (2)
ol
Clevis Pin Clevis Pin
5/16"x1-1/2' (1) 5/16"x1" (1)
Handle
Insulated
Staples (30)
Clevis Pin
5/16"x1-1/4' (1)
Rope
