11. HYDRAULIC SYSTEM
Ex2900 / 3200 Operator's Manual
Avoid injury:
●Escaping high pressure oil can penetrate the skin
and cause severe injury. Avoid this hazard by
relieving pressure prior to connection of hydraulic
or other high pressure lines. Retighten all the
connections before applying pressure.
●Use a piece of cardboard to detect leaks. Protect
hands and body against high pressure fluids.
●If an accident should occur, immediately seek
medical attention. Any high pressure fluid injected
into the skin must be surgically removed within a
few hours; otherwise, gangrene may occur.

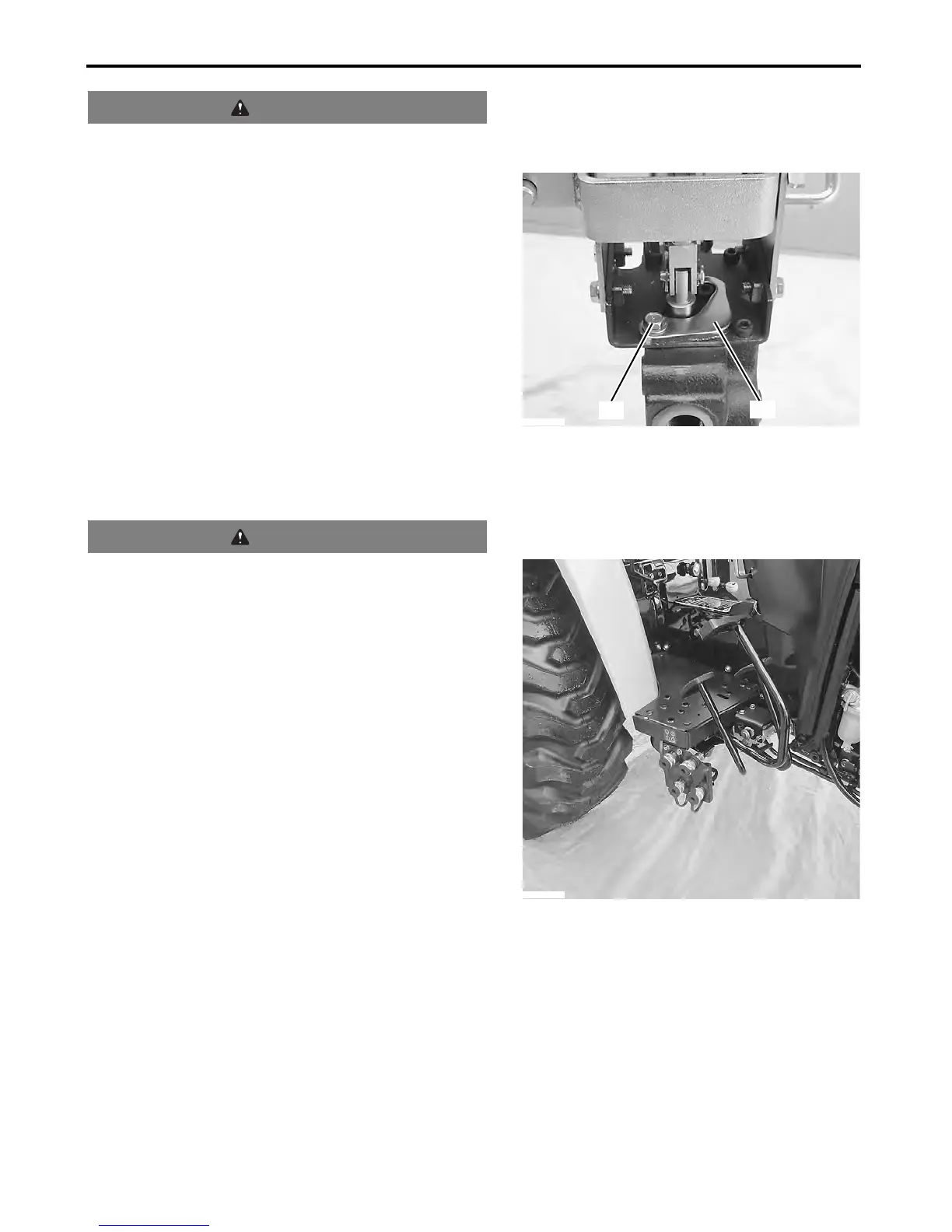

3. Connecting the Implement Hydraulic Hoses
Avoid injury:
●Before all the hydraulic system pressure has been
fully relieved, do not attempt to connect the hoses
to the hydraulic quick couplers.
1. Park the tractor safely.
2. Fully relieve hydraulic pressure by moving the
implement control lever forward and backward and
right to left several times.
3. For the correct procedure to connect the hydraulic
hoses to the couplers, refer to the implement
instruction manual.
NOTE:
●Fit the rubber plug into an unused port.
DANGER
DANGER
P3013750
(A)
(B)
Lock out position
P3013709
To Next Page
