-27-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-52-353-20 Line, Fuel 10” 2
2 KH-25-237-14-S Clamp, Hose 4
3 KH-24-853-35-S Kit, Carburetor w/Gasket
(Includes 4-6)
1
4 KH-24-041-53-S Gasket, Carburetor 1
5 Carburetor Assembly
Not available separately
1
6 KH-24-041-06 Gasket, Air Cleaner Base 1
7 KH-M-651025-S Screw, Hex Flange, M6 x 1.0 x 25 2
8 KH-24-050-02 Filter, Fuel 1
9 KH-24-353-12 Line, Fuel 11” 1
Not Illustrated
723-3066-14 Insulator, Foam Fuel LIne 1
KH-24-518-24-S Lead, Ground 1
KH-24-757-01 Kit, Solenoid — Includes Solenoid
Screw [qty. 2], O-Ring , O-Ring ,
O-Ring , Solenoid Assembly &
Solenoid Seat.
1
KH-24-757-02 Kit, Float Repair — Includes Carbu-
retor Body Gasket, Float Screw,
Float Assembly and Float Shaft.
1
KH-24-757-03 Kit, Carburetor Repair — Includes
Carburetor Gasket; Carburetor
Body Screw; Idle Needle Spring;
U-Ring; Slow Jet O-Ring; Main Jet
Screw O-Ring; Solenoid O-Rings;
Inlet Needle Valve Clip; Idle Nee-
dle and Inlet Needle Valve.
1
KH-24-757-07 Kit, Choke Repair — Includes
Choke Plate Screws; Choke
Spring; Choke Lever; Choke
Shaft; Choke Plate; Choke Bush-
ings; and Choke Lever Cap.
1
KH-24-755-125-S Kit, High Altitude 1

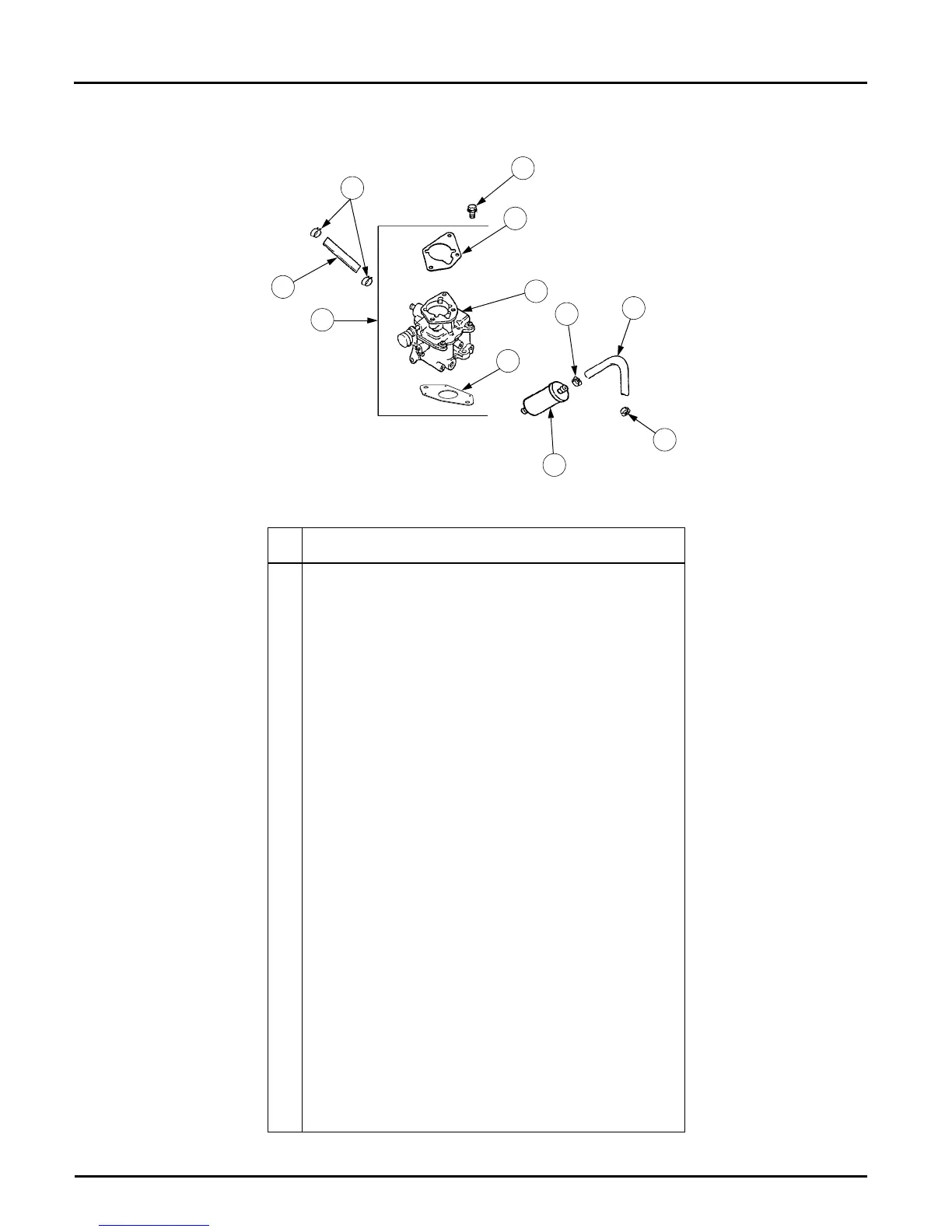

FUEL SYSTEM
1
2
3
6
7
5
2
9
8
4
2
