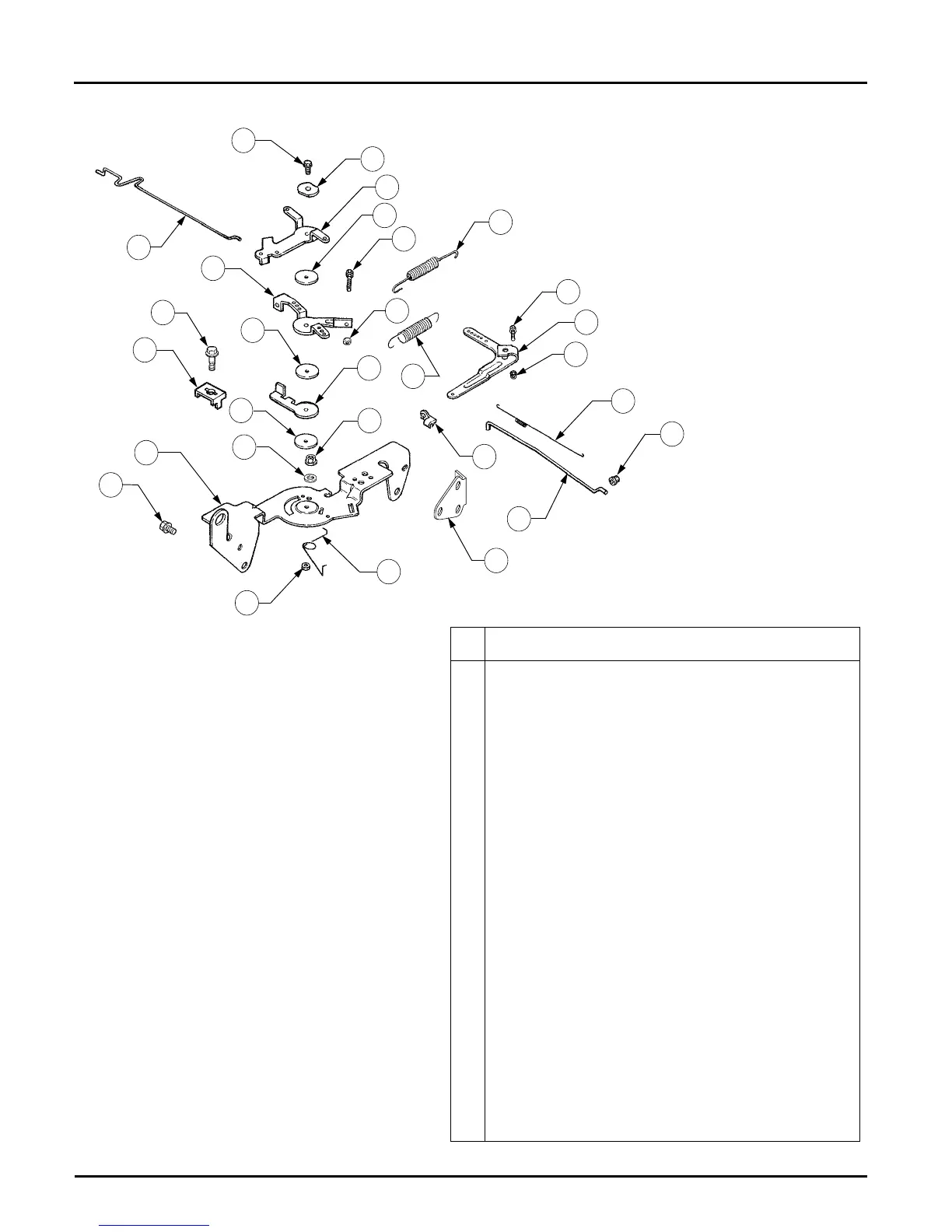

-30-
ENGINE CONTROLS
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-M-0547050 Nut, Hex Lock M5 x 0.8 1
2 KH-24-089-03 Spring, Choke Return 1
3 KH-M-645016-S Screw, Hex Flange M6 x 1.0 x 16 4
4 KH-24-126-56 Bracket, Control 1
5 KH-24-468-01 Washer , Plain 5.5mm 3
6 KH-24-090-07 Lever, Throttle Actuator 1
7 KH-12-237-01 Clamp, Cable 2
8 KH-M-545016-S Screw, Hex Flange M5 x 0.8 x 16 3
9 KH-24-090-13 Lever, Throttle Control 1
10 KH-M-446030-S Nut, Hex M4 x 0.7 1
11 KH-M-401030-S Screw, Hex Cap M4 x 0.7 x30 1
12 KH-24-079-21-S Linkage, Choke 1
13 KH-24-090-05 Lever, Choke 1
14 KH-41-468-03 Washer, Spring 1/4” 1
15 KH-M-0545020 Screw, Hex Flange M5 x 0,.8 x 20 1
16 KH-24-089-51 Spring, Throttle Limiter 1
17 KH-24-089-48-S Spring, Governor 1
18 KH-24-211-03 Screw, Round Hd. Square Neck 1
19 KH-24-090-33 Lever, Governor 1
20 KH-M-0641060 Nut, Hex Flange M6 x 1.0 1
21 KH-24-089-01 Spring, Linkage 1
22 KH-25-158-08 Bushing, Linkage Retaining 1
23 KH-24-079-01 Linkage, Throttle 1
24 KH-25-158-11 Bushing, Linkage Retaining 1
25 KH-24-126-04 Bracket, Support 2
26 KH-X-20-1-S Washer 1
27 KH-M-541050-S Nut, Hex 1
18
17
19
20
21
22
23
24
25
6
2
10
16
15
14
13
11
1
3
4
5
7
8
9
12
5
5
26
27
