Cub Cadet GT 2186 User Manual

-37-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04141 Handle Assembly, Lift 1
2 603-0059A Shaft Assembly, Lift 1
3 603-05247 Fork, Lift 1
4 703-2239A Bracket, Lift Index 2
5 703-2558 Indicator, Lift Height 1
6 710-0451 Bolt, Carriage, 5/16-18 x .75 2
7 710-0599 Screw, Hex Wash Tapp, 1/4 x .5 1
8 738-0560 Screw, Shoulder, .374 x 1.375 1
9 710-3279 Screw, Hex Cap, 3/8-16 x 4.25 GR5 1
10 711-0635 Insert, Spring 1
11 711-0642A Button, Handle 1
12 711-3350 Ferrule, Adjustment 1
13 712-0262 Nut, Hex Center Lock, Jam, 3/8-24 1
14 712-0431 Nut, Hex Flanged Lock, 3/8-16 1
15 712-3004A Nut, Hex Flanged Top Lock, 5/16-18 2
16 715-0114 Pin, Spiral Spring, 1/4 Dia x 1.5 2
17 716-0116 Ring, Snap, 1.25 Dia Shaft 1
18 731-3158 Grip, Lift Handle 1
19 732-3093 Spring, Extension 1
20 732-3097 Spring, Compression 1
21 736-0267 Washer, Flat, .385 x .87 x .06 1
22 738-0145 Bolt, Shoulder 1
23 747-3175A Rod, Index 1
24 748-3051 Bearing, Hex Flange, 1.25 ID 2
25 750-3131 Spacer, 1.28 ID x 1.5 OD x .335 Lg 1
26 712-3027 Nut, Hex Flange Lock, 1/4-20 1
27 714-0104 Pin, Internal Cotter 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

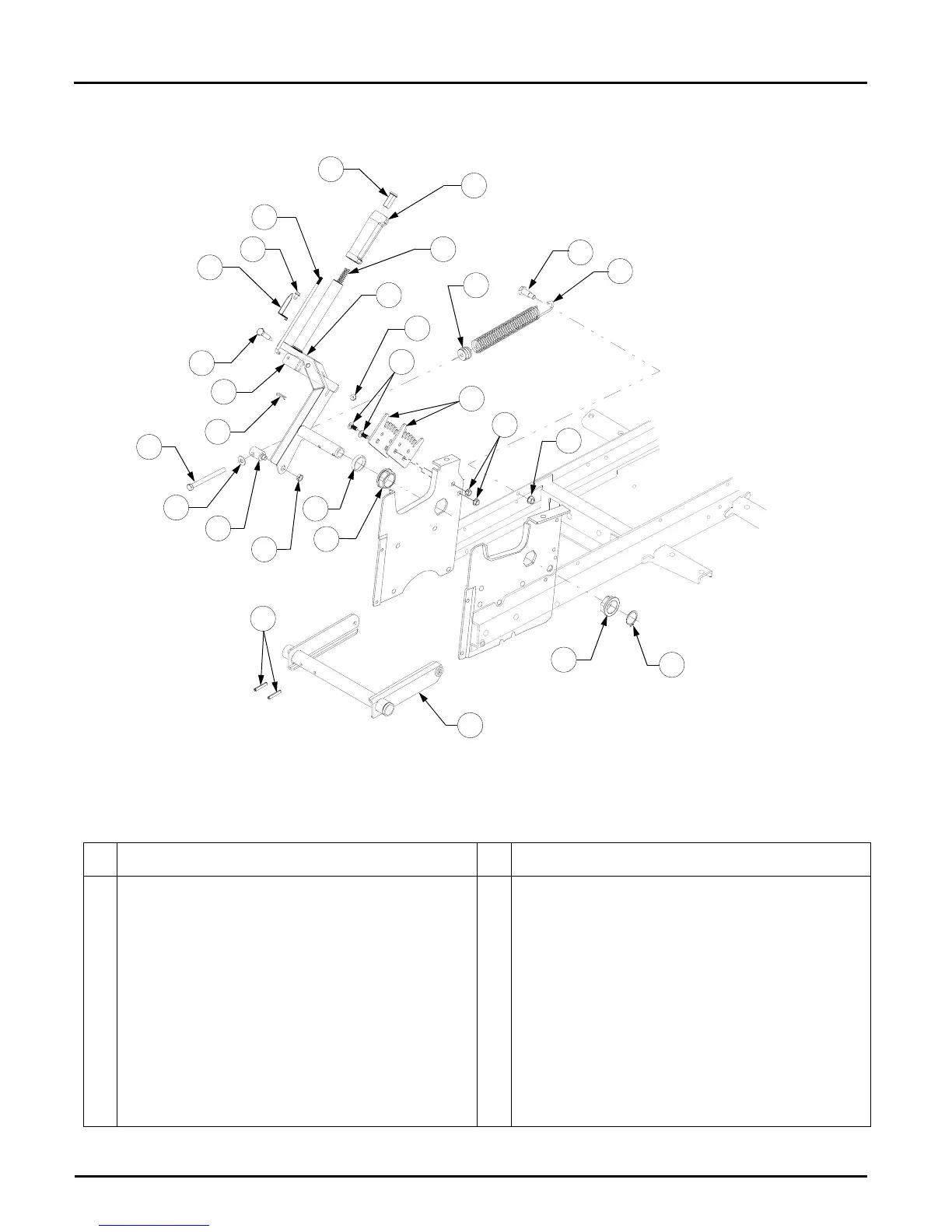

IMPLEMENT LIFT HANDLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
24
27
