DGS-1510 Series Gigabit Ethernet SmartPro Switch Hardware Installation Guide
17

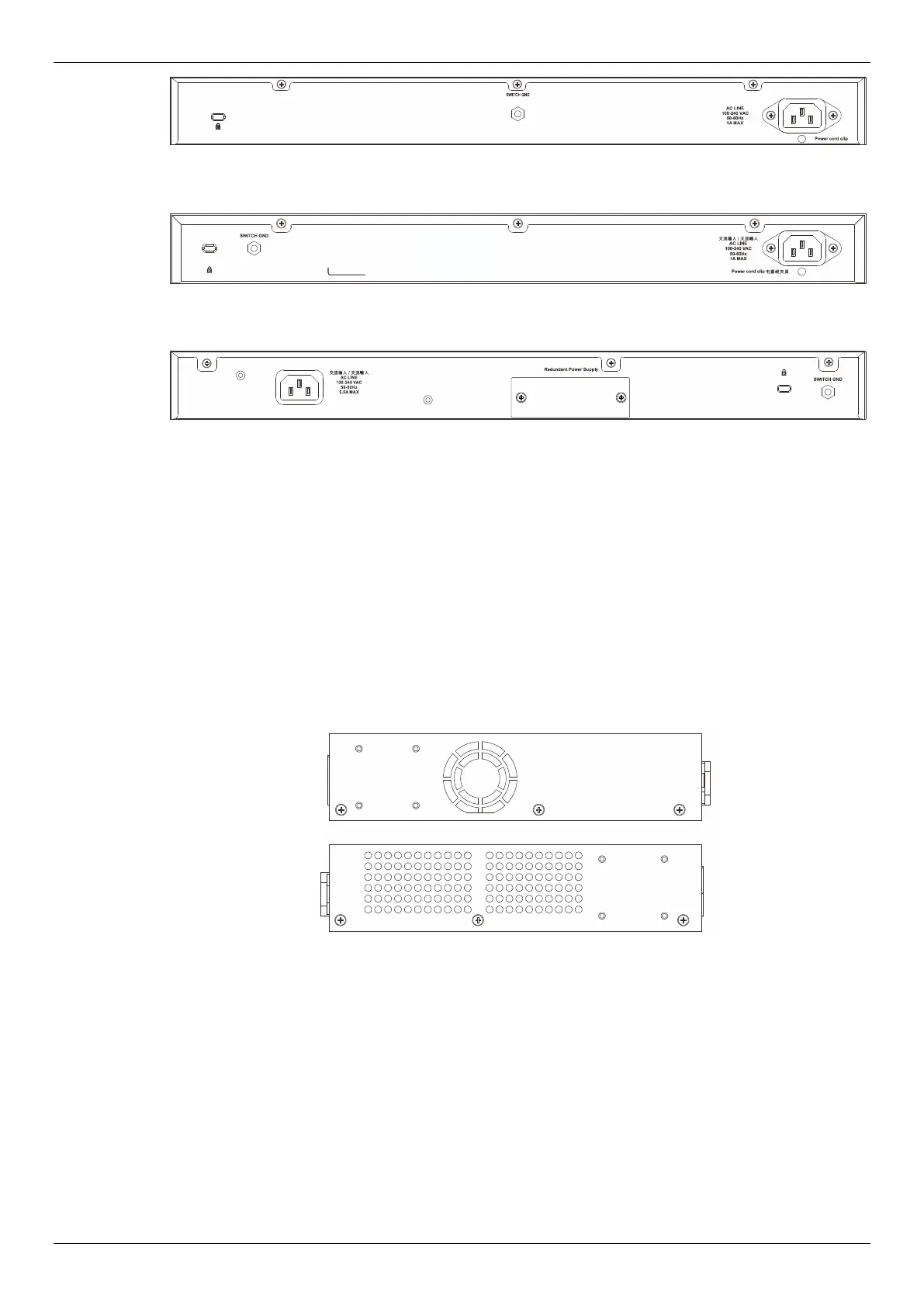

Figure 1-25 Rear panel view of a DGS-1510-52X (HW: A1) Switch
Figure 1-26 Rear panel view of a DGS-1510-52X (HW: A2) Switch
Figure 1-27 Rear panel view of a DGS-1510-52XMP Switch
The AC power connector is a standard three-pronged connector that supports the power cord. Plug-in
the female connector of the provided power cord into this socket, and the male side of the cord into a
power outlet. The Switch automatically adjusts the power setting to any supply voltage in the range
from 100 to 240 VAC at 50 to 60 Hz.
Side Panel Components
On the side panels of the Switch there are heat vents and fans to dissipate heat. Do not block these
openings. Leave at least 6 inches of space at the rear and sides of the Switch for proper ventilation.
Without proper heat dissipation and air circulation, system components might overheat which could
lead to system failure or even severely damaged components.
Figure 1-28 Side panels view of a DGS-1510-20 Switch

D-Link DGS-1510- 52XMP Specifications

General

Model	DGS-1510-52XMP
Category	Switch
PoE Standard	IEEE 802.3af/at
PoE Budget	370W
Switching Capacity	176 Gbps
Forwarding Rate	130.95 Mpps
MAC Address Table Size	16K
VLANs	4K
Jumbo Frame Support	9KB
Ports	48 x 10/100/1000BASE-T, 4 x 10G SFP+
Dimensions	440 x 44 x mm
Operating Temperature	0 to 45 °C
Storage Temperature	-40 to 70 °C
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p
Humidity	5% to 95% non-condensing
