DGS-1510 Series Gigabit Ethernet SmartPro Switch Hardware Installation Guide
49
Console Cable
When connecting the Switch to a PC, a Console cable is necessary. The following diagrams and
tables show the standard Console-to-DJ-45 receptacle/connector and their pin assignments.

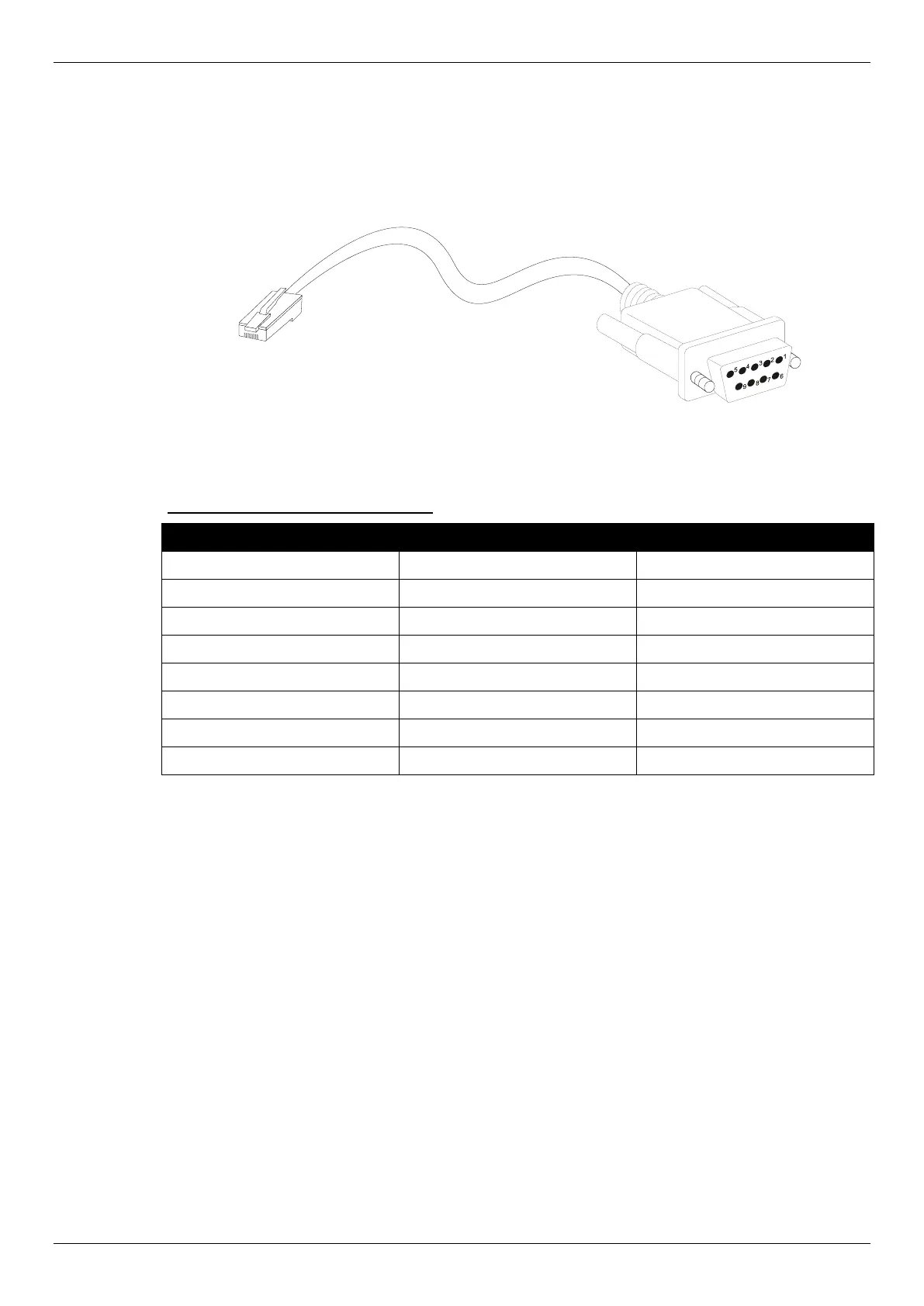

Figure B–2 Console-to-RJ-45 Cable
Console-to-RJ-45 PIN Assignments:
Pin Console (DB9/RS232) RJ-45
1 Not Used Not Used
2 RXD Not Used
3 TXD TXD
4 Not Used GND
5 GND (shared) GND
6 Not Used RXD
7 Not Used Not Used
8 Not Used Not Used

D-Link DGS-1510- 52XMP Specifications

General

Model	DGS-1510-52XMP
Category	Switch
PoE Standard	IEEE 802.3af/at
PoE Budget	370W
Switching Capacity	176 Gbps
Forwarding Rate	130.95 Mpps
MAC Address Table Size	16K
VLANs	4K
Jumbo Frame Support	9KB
Ports	48 x 10/100/1000BASE-T, 4 x 10G SFP+
Dimensions	440 x 44 x mm
Operating Temperature	0 to 45 °C
Storage Temperature	-40 to 70 °C
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p
Humidity	5% to 95% non-condensing
