DGS-1510 Series Gigabit Ethernet SmartPro Switch Hardware Installation Guide
22

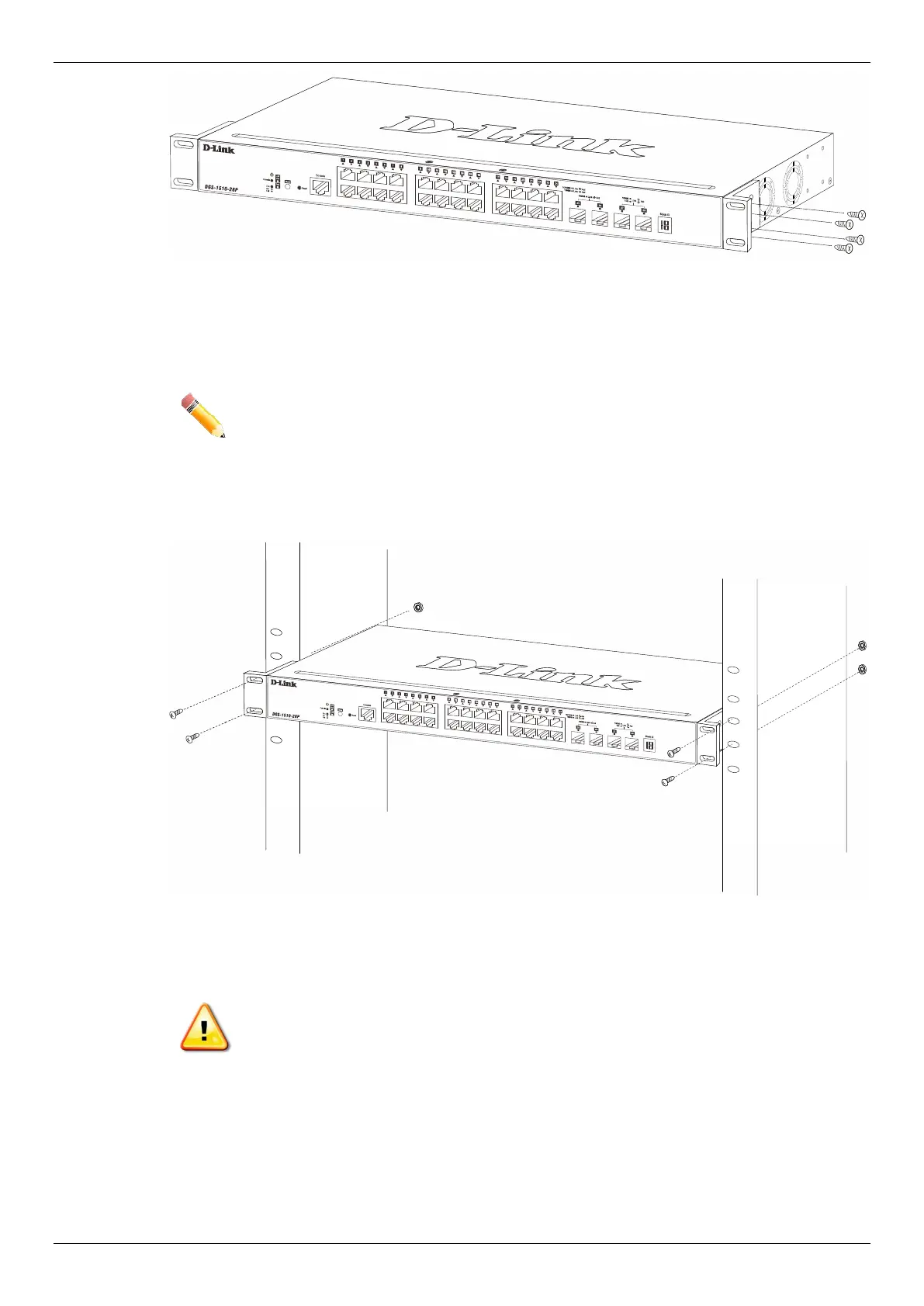

Figure 2-2 Attach mounting brackets to the Switch
Fasten the mounting brackets to the Switch using the screws provided. With the brackets attached
securely, the Switch can be mounted in a standard rack, as shown below.
NOTE: Please review the Installation Guidelines above before installing the Switch in a
rack. Make sure there is adequate space around the Switch to allow for proper
airflow, ventilation and cooling.
Installing the Switch in a Standard 19" Rack
Figure 2-3 Mount the Switch in a rack
CAUTION: Installing systems in a rack without the front and side stabilizers installed
could cause the rack to tip over, potentially resulting in bodily injury under
certain circumstances. Therefore, always install the stabilizers before
installing components in the rack. After installing components in a rack, do
not pull more than one component out of the rack on its slide assemblies at
one time. The weight of more than one extended component could cause the
rack to tip over and may result in injury.
Installing Transceivers into the Transceiver Ports
The Switch is equipped with SFP (Small Form Factor Portable) and SFP+ ports, which are used with
fiber-optical transceiver cabling. SFP ports support full-duplex transmissions, auto-negotiation, and
