DGS-3130 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
14

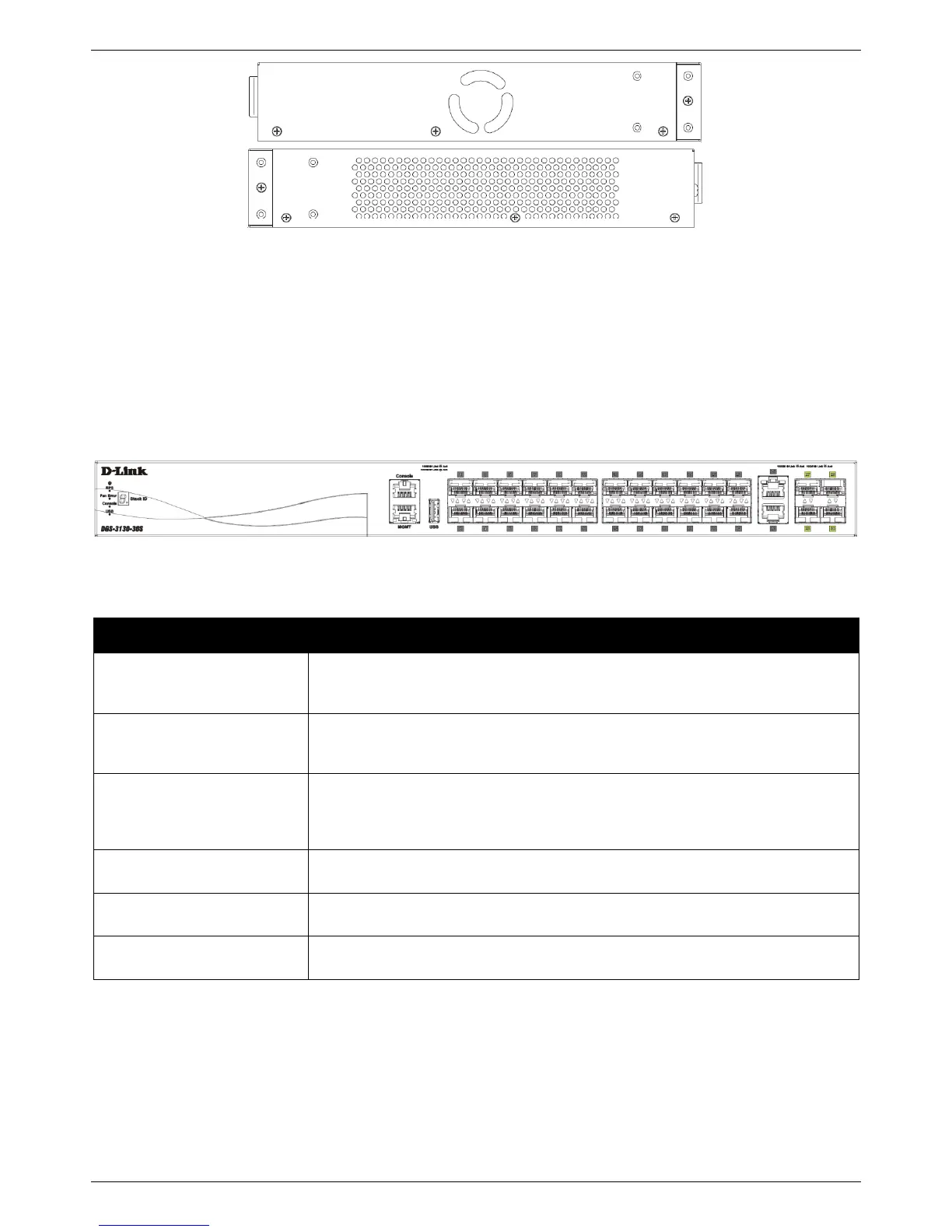

Figure 2-4 Side panels of the DGS-3130-30TS
DGS-3130-30S Switch
Front Panel Components
The front panel of DGS-3130-30S features a variety of LED indicators and ports.
Figure 2-5 Front panel view of the DGS-3130-30S
Ports that can be found on the front panel of this switch are listed in the table below.
Inserting a flash drive into the USB 2.0 Type-A port provides an additional storage
space for portable firmware images and configuration files that can be copied to
and from the NVRAM of the Switch.
The RJ45 MGMT port is an IP-based, OOB port for Telnet, web, or SNMP
management that operates at 10/100/1000 Mbps wire-speed. This port can be
used to configure the Switch without being connected to the network.
The RJ45 console port can be used to connect to the CLI of the Switch for
configuration, management, and monitoring. This port uses a special console
cable (included in this package) with a DB9 interface to connect the Switch to the
serial port (COM) of the PC.
The Switch is equipped with 24 SFP ports. These ports can operate at 100 Mbps
and 1 Gbps wire-speeds.
The Switch is equipped with 2 RJ45 Ethernet ports. These ports can operate at 1
Gbps and 10 Gbps wire-speeds.
The Switch is equipped with 4 SFP+ ports. These ports can operate at 1 Gbps and
10 Gbps wire-speeds and support a wide collection of SFP+ transceivers.
For a complete list of SFP/SFP+ transceivers that are compatible with this switch, refer to the SFP Ports and SFP+
Ports sections in Appendix A - Technical Specifications.
LED Indicators
Located on the front panel of this switch are LED indicators: Power, Console, RPS, Fan Err, USB, Link/Act indicators
for all the ports, and Stack ID.
