DGS-3130 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
64
Console Cable (RJ45 to RS-232)
A console cable is used to connect to the RJ45 console port of the Switch to access the command line interface. The
following diagram and table show the standard RJ45 to RS-232 cable and pin assignments.

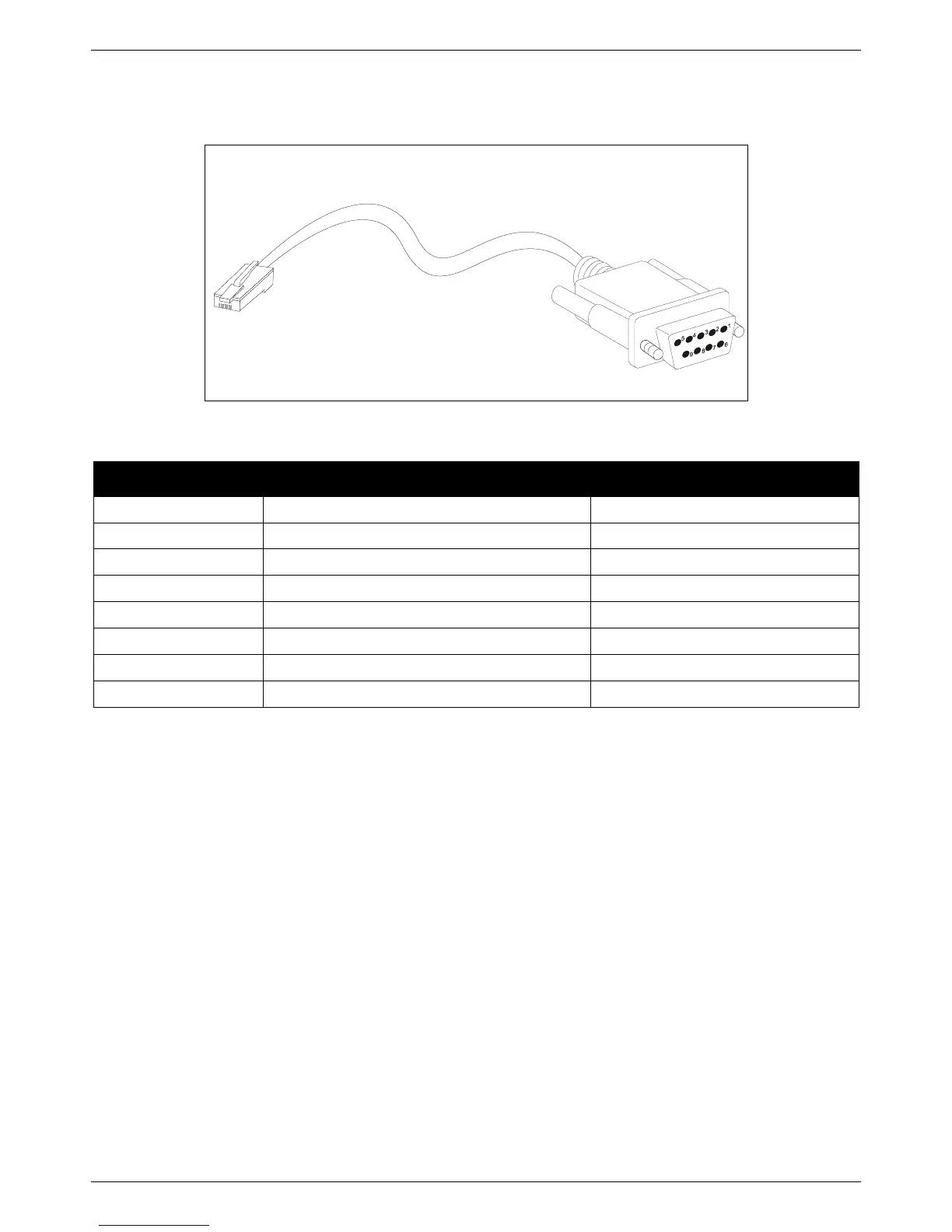

Figure B-2 Console to RJ45 Cable
Contact
Console (DB9/RS232)
RJ45
1
Not Used
Not Used
2
RXD
Not Used
3
TXD
TXD
4
Not Used
GND
5
GND (shared)
GND
6
Not Used
RXD
7
Not Used
Not Used
8
Not Used
Not Used
