D-Link DIR-632 User Manual

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
User Manual
Configuring via Web-based Interface

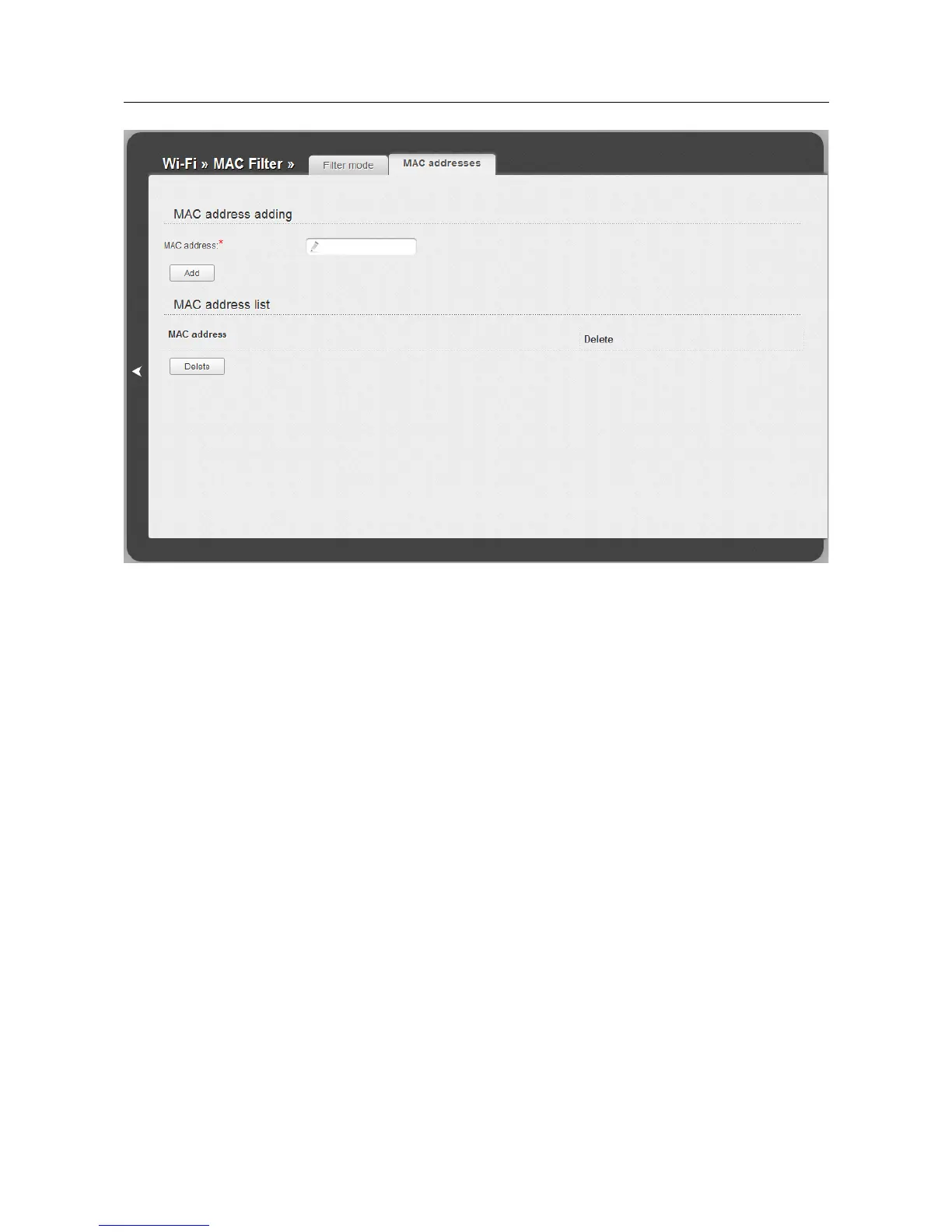

Figure 111. The tab for adding a MAC address.
Enter an address in the MAC address field of the MAC address adding section and click the
Add button.
To remove a MAC address from the list of MAC addresses, select the checkbox located to the right
of the relevant MAC address in the MAC address list section and click the Delete button.
Page 136 of 197

D-Link DIR-632 Specifications

Device Interface

LAN ports	8 10/100 LAN Ports
WAN port	1 10/100 WAN Port
device management	Internet Explorer v7 or Later; Mozilla Firefox v3.0 or Later; or other Java-enabled Browsers

Weight and Dimensions

item dimensions	230mm x 150mm x 33mm
packaging dimensions	276.9mm x 66mm x 205.8mm
item weight	272.2 grams
