D-Link DIR-632 User Manual

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
User Manual
Configuring via Web-based Interface
WMM
On the Wi-Fi / WMM page, you can enable the Wi-Fi Multimedia function.
The WMM function implements the QoS features for Wi-Fi networks. It helps to improve the
quality of data transfer over Wi-Fi networks by prioritizing different types of traffic.
To enable the function, select the WMM checkbox and click the Change button.

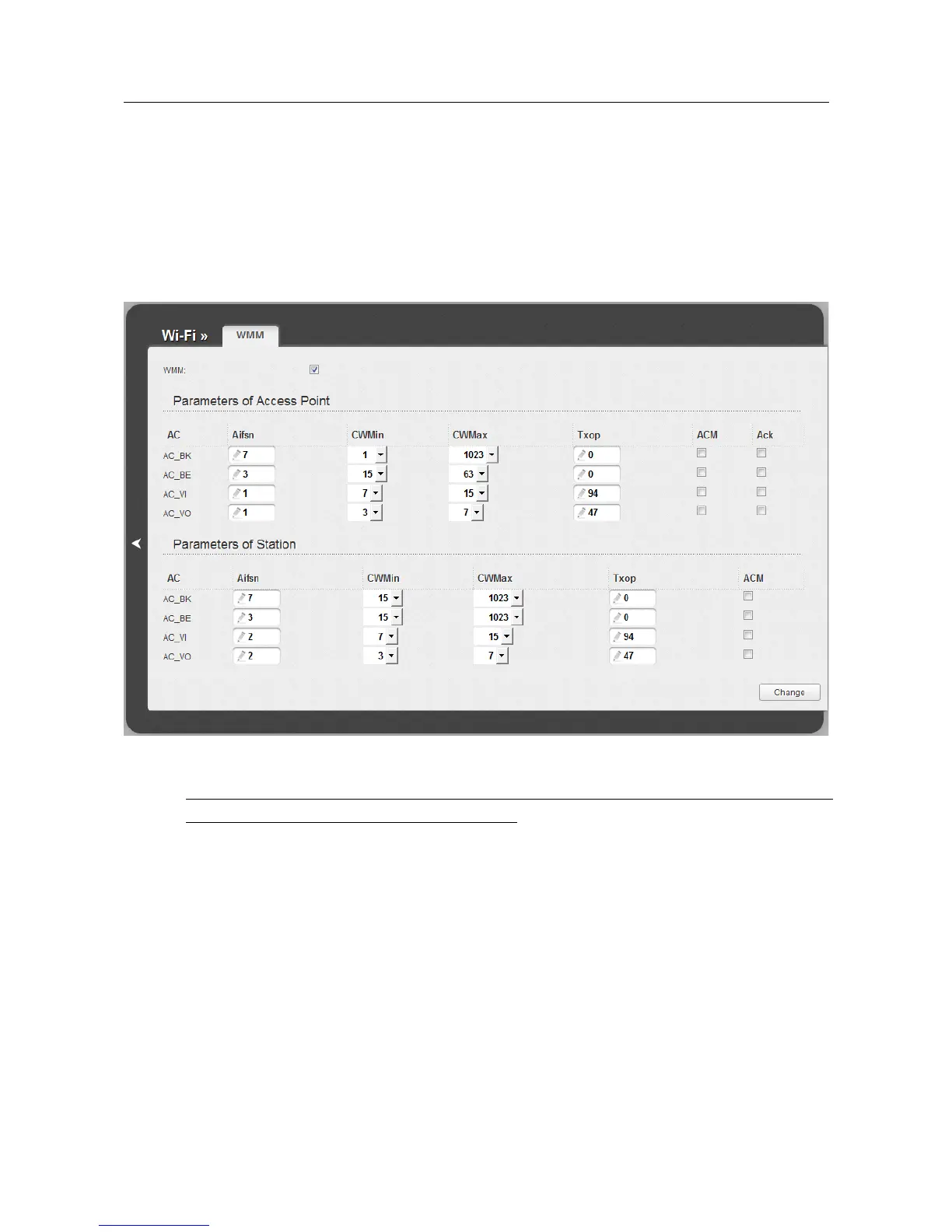

Figure 115. The page for configuring the WMM function.
!
All needed settings for the WMM function are specified in the device's system. It is
recommended not to change the default values.
The WMM function allows assigning priorities for four Access Categories (AC):
• AC_BK (Background), low priority traffic (print jobs, file downloads, etc.).
• AC_BE (Best Effort), traffic from legacy devices or devices/applications that do not support
QoS.
• AC_VI (Video).
• AC_VO (Voice).
Parameters of the Access Categories are defined for both the router itself (in the Parameters of
Access Point section) and wireless devices connected to it (in the Parameters of Station
section).
Page 144 of 197

D-Link DIR-632 Specifications

Device Interface

LAN ports	8 10/100 LAN Ports
WAN port	1 10/100 WAN Port
device management	Internet Explorer v7 or Later; Mozilla Firefox v3.0 or Later; or other Java-enabled Browsers

Weight and Dimensions

item dimensions	230mm x 150mm x 33mm
packaging dimensions	276.9mm x 66mm x 205.8mm
item weight	272.2 grams
