DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
User Manual
Configuring via Web-based Interface

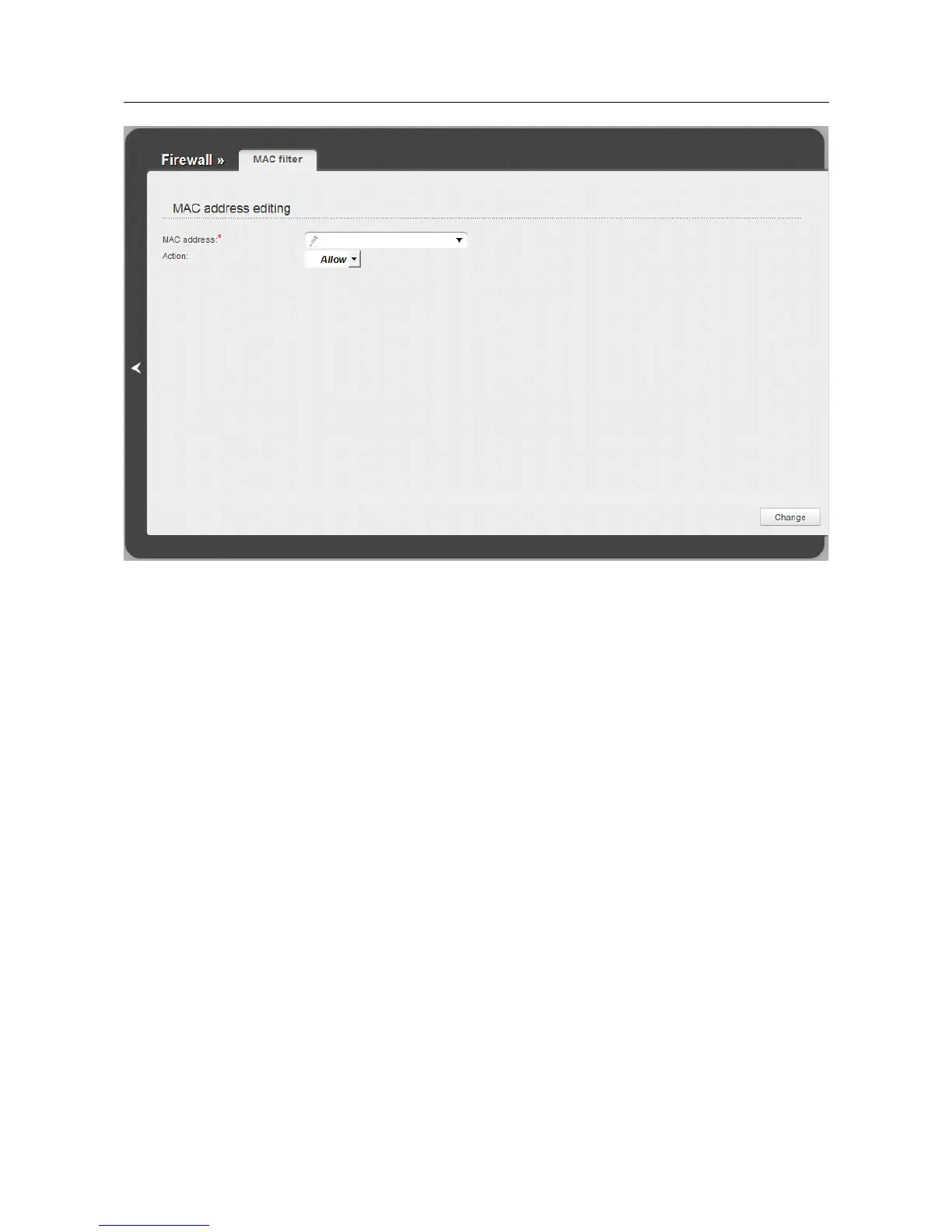

Figure 133. The page for adding an address for the MAC filter.
On the opened page, enter the MAC address of the device from the router's LAN in the MAC
address field. To choose a device connected to the router's LAN at the moment, select the relevant
value from the drop-down list (the field will be filled in automatically). Then select the Deny value
from the Action drop-down list and click the Change button.
To remove an address from the list of MAC addresses for filtering, select the line with the relevant
MAC address. On the opened page, click the Delete button.
Page 167 of 197
