D-Link DIR-860L User Manual

46D-Link DIR-860L User Manual
Section 3 - Conguration
Check the box to enable the wireless function. If you do not want to use
wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled.
The schedule may be set to Always. Any schedule you create will be
available in the drop-down menu. Click New Schedule to create a
schedule.
Service Set Identier (SSID) is the name of your wireless network. Create
a name for your wireless network using up to 32 characters. The SSID is
case-sensitive.
Select one of the following:
802.11b Only - Select only if all of your wireless clients are 802.11b.
802.11g Only - Select only if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11g and 802.11b - Select if you are using both 802.11g and
802.11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using both 802.11n and 802.11g wireless clients.
Mixed 802.11n, 11g, and 11b - Select if you are using a mix of 802.11n, 802.11g, and 802.11b wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-860L to choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-860L. The Channel can be changed to t the channel setting for an existing wireless network or to customize the
wireless network. If you check Enable Auto Channel Scan, this option will be greyed out.
Select the Channel Width:
20/40 MHz(Auto) - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-860L. If Invisible is selected, the SSID of the DIR-860L will
not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-860L in order to connect to it.
Refer to page 48 for more information regarding wireless security.
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:

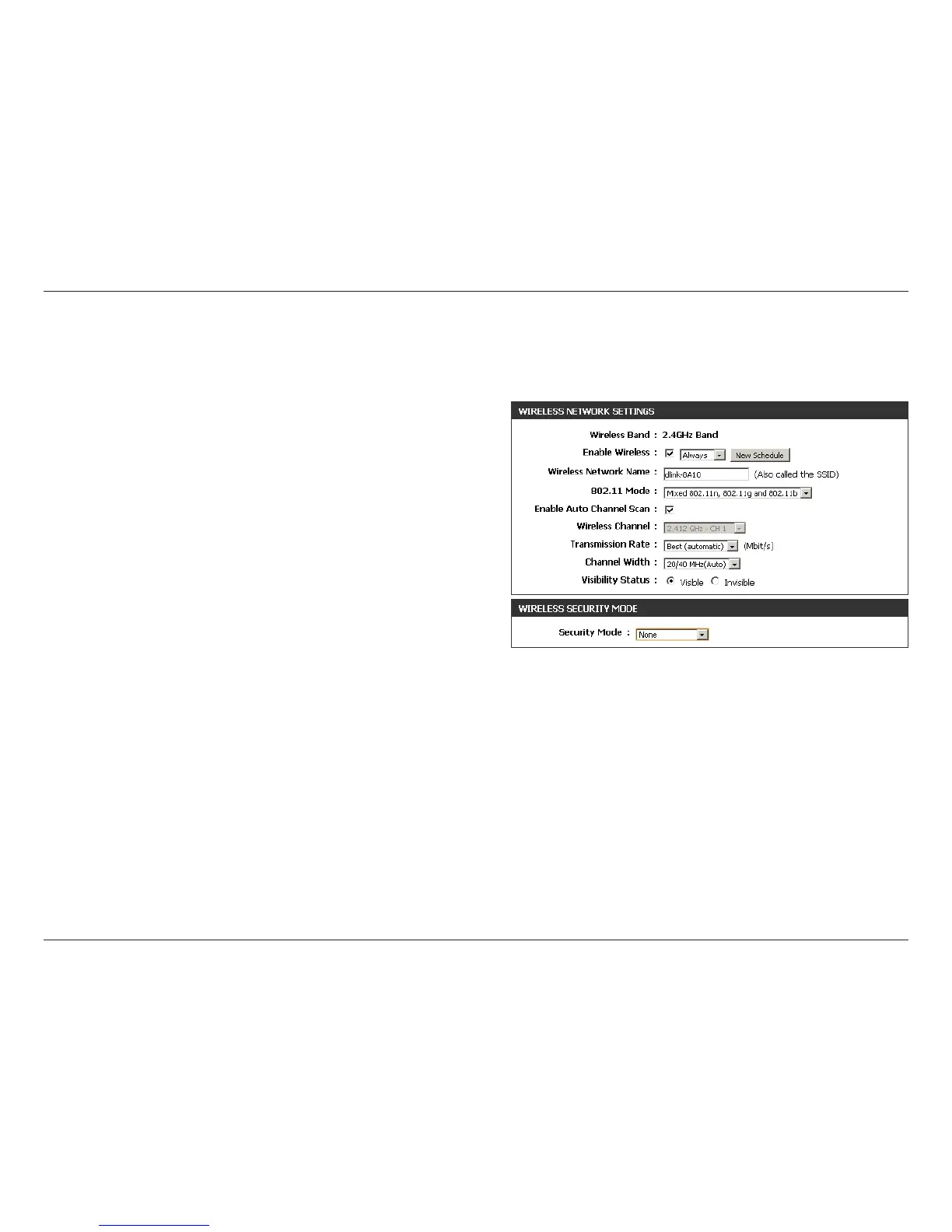

Manual Wireless Settings
Channel Width:
Visibility Status:
Wireless Security:
802.11n/g (2.4GHz)

D-Link DIR-860L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/draft ac
LAN ports	Four 10/100/1000 Gigabit
WAN port	10/100/1000 Gigabit
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2 A
USB port power voltage	5 V
USB port power current	0.9 A

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	10.23 cm (4.03 inches)
width	12.33 cm (4.85 inches)
height	21.7 cm (8.54 inches)
