Section 3 - Conguration
This Wireless Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the
PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a
conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router
within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar
only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the
device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click to start the wizard and skip to page 44.
Add Wireless
Station:
Connect Your
Wireless Device:

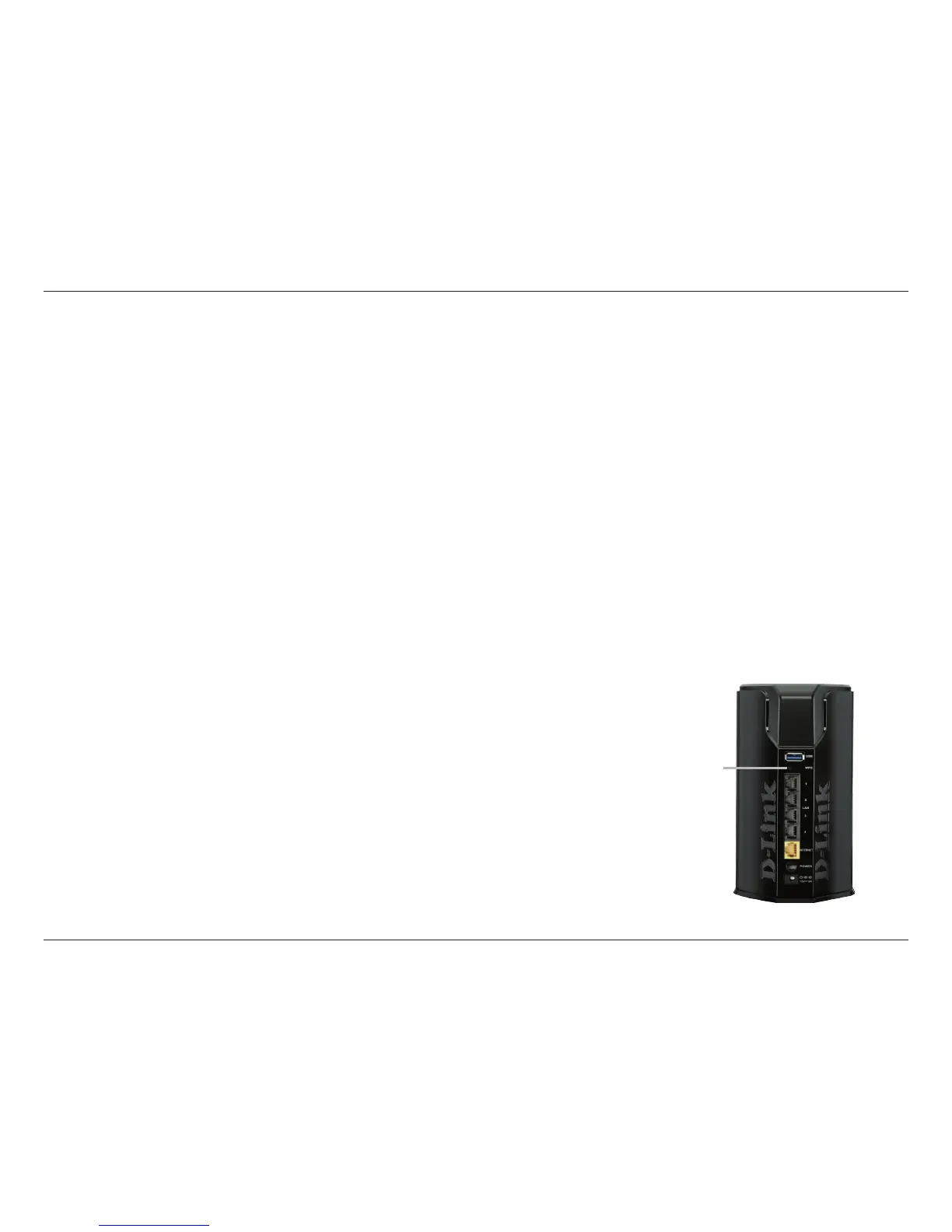

You can also simply press the WPS button on the back of the router, and then press the WPS button on
your wireless client to automatically connect without logging into the router.
Refer to page 116 for more information.
WPS Button
WPS Button

D-Link DIR-860L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/draft ac
LAN ports	Four 10/100/1000 Gigabit
WAN port	10/100/1000 Gigabit
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2 A
USB port power voltage	5 V
USB port power current	0.9 A

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	10.23 cm (4.03 inches)
width	12.33 cm (4.85 inches)
height	21.7 cm (8.54 inches)
