D-Link DIR-860L User Manual

67D-Link DIR-860L User Manual
Section 3 - Conguration

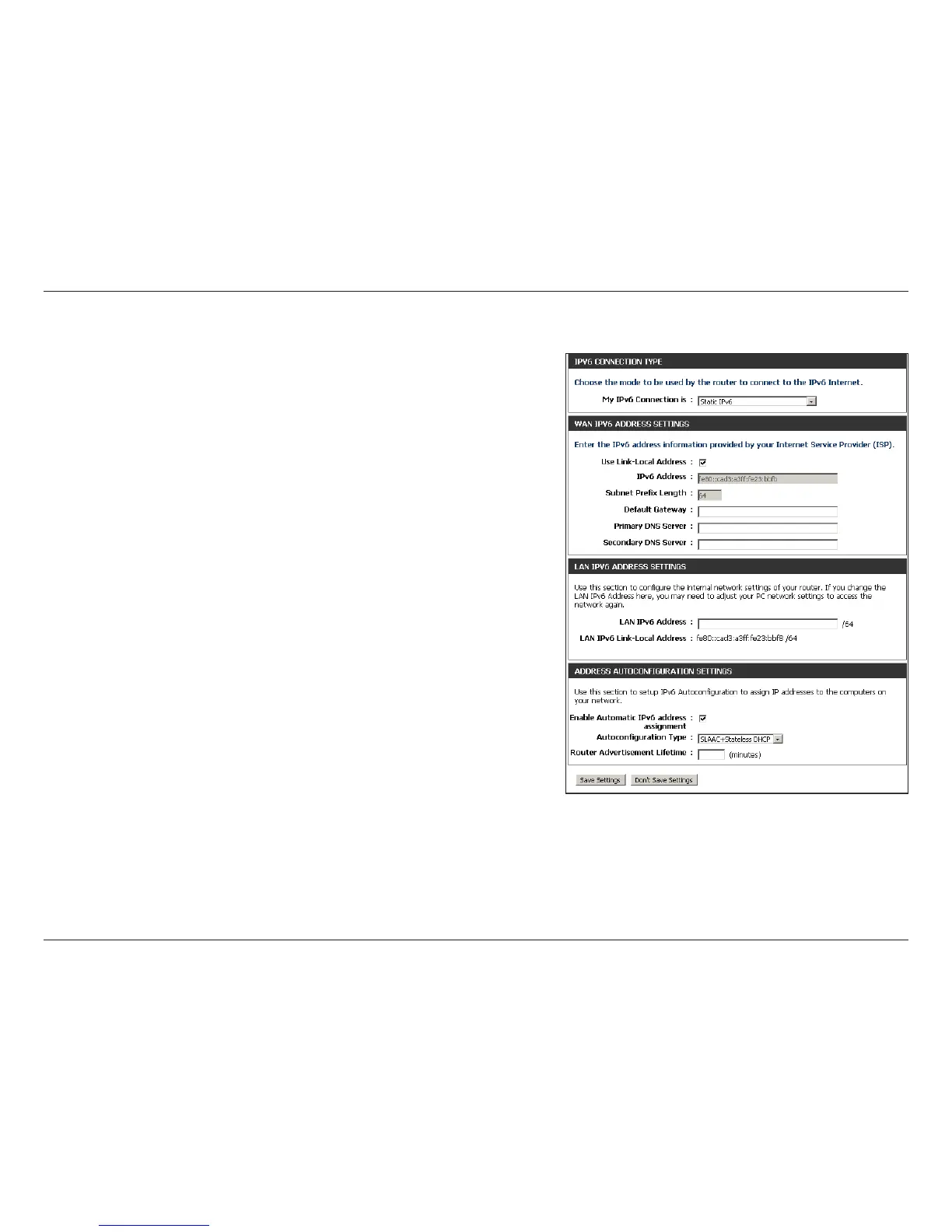

Static IPv6
Select Static IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider
(ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your
local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
local computers.
Enter the Router Advertisement Lifetime (in minutes).
Click Save Settings.
My IPv6 Connection is:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
Enable Automatic IPv6
address assignment:
Autoconguration Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
Router Advertisement
Lifetime:

D-Link DIR-860L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/draft ac
LAN ports	Four 10/100/1000 Gigabit
WAN port	10/100/1000 Gigabit
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2 A
USB port power voltage	5 V
USB port power current	0.9 A

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	10.23 cm (4.03 inches)
width	12.33 cm (4.85 inches)
height	21.7 cm (8.54 inches)
