D-Link DIR-860L User Manual

4D-Link DIR-860L User Manual
Section 1 - Product Overview
3
1
4
5
6
2

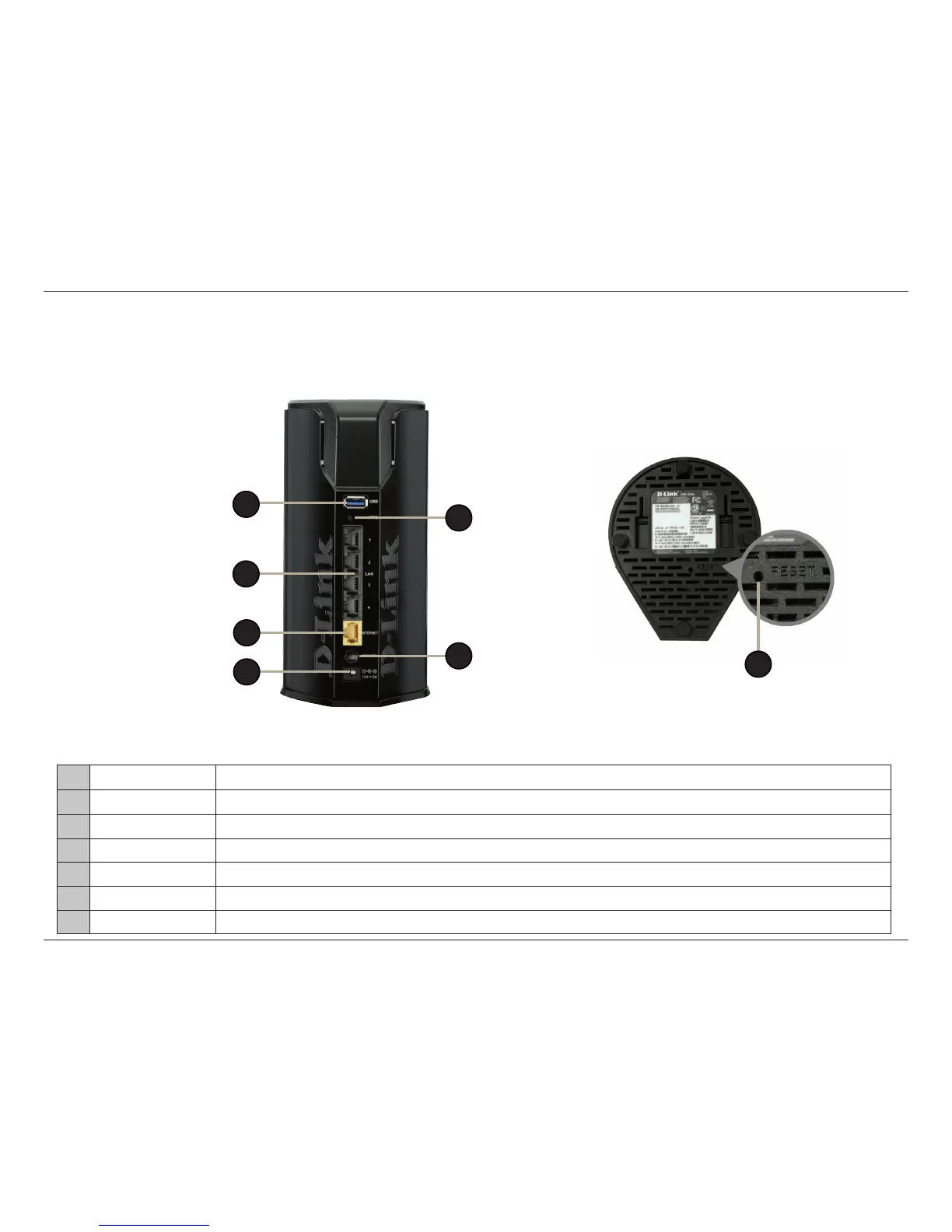

Hardware Overview
Connections
1 USB Port Connect a USB ash drive to share content throughout your network.
2 WPS Button Press to start the WPS process. The Power LED will blink during this process.
3 LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
4 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
5 Power Button Press the power button to power on and o.
6 Power Receptor Receptor for the supplied power adapter.
7 Reset Button Press and hold the reset button with a paper clip for 10 seconds to reset the router to the default factory settings.
7

D-Link DIR-860L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/draft ac
LAN ports	Four 10/100/1000 Gigabit
WAN port	10/100/1000 Gigabit
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2 A
USB port power voltage	5 V
USB port power current	0.9 A

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	10.23 cm (4.03 inches)
width	12.33 cm (4.85 inches)
height	21.7 cm (8.54 inches)
