D-Link DSL-224 User Manual

Section 3 – Web Configuration
15
SETUP
Wizard
Wizard enables fast and accurate configuration of Internet connection and other important parameters. The following sections describe these various
configuration parameters.
When subscribing to a broadband service, you should be aware of the method, by which you are connected to the Internet. The connection type of
your physical WAN device can be Ethernet, DSL, or both. Technical information about the properties of your Internet connection is provided by your
Internet service provider (ISP). For example, your ISP should inform you whether you are connected to the Internet using a static or dynamic IP
address, or the protocol, such as PPPoA or PPPoE, that you use to communicate over the Internet.

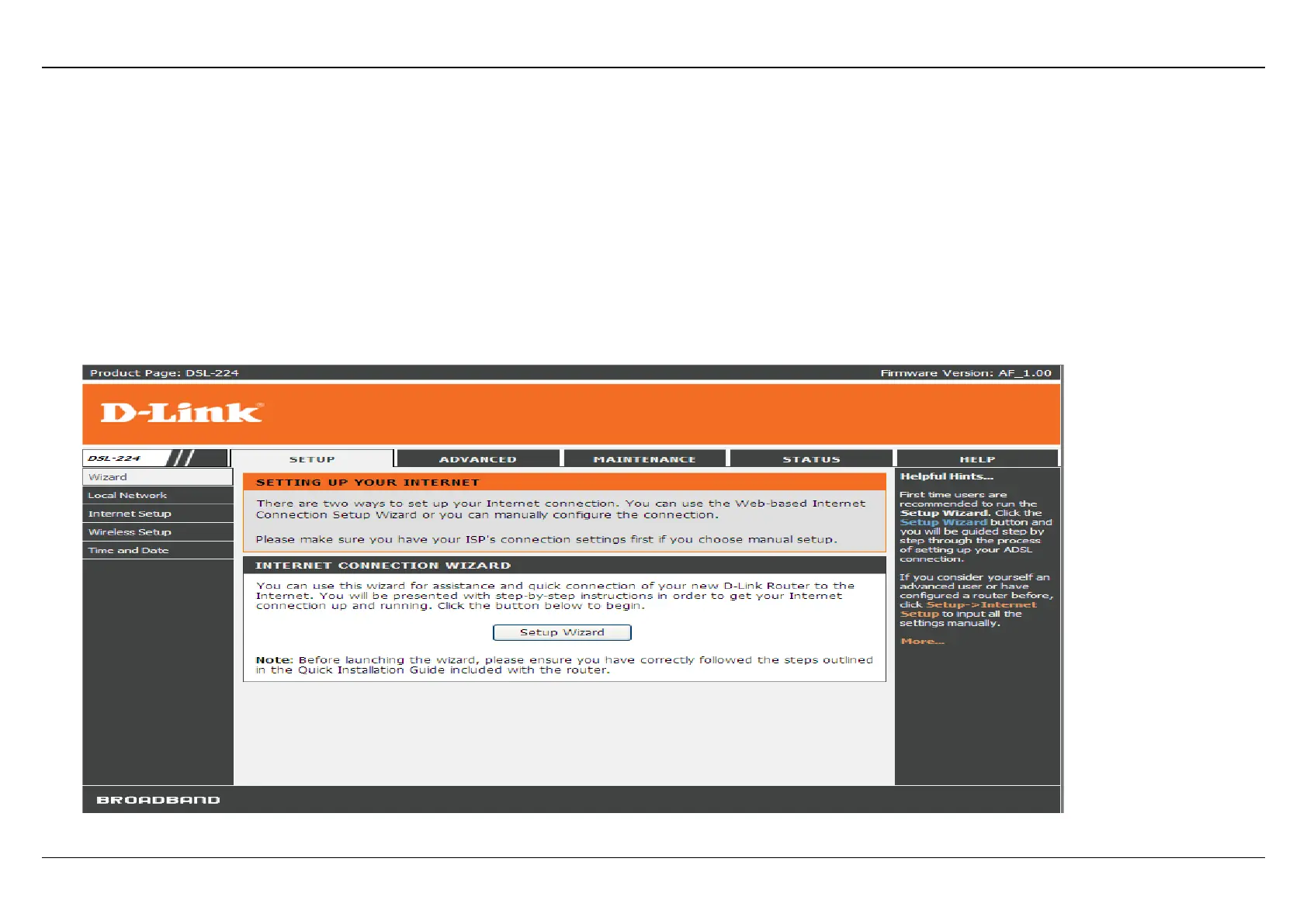

Choose SETUP > Wizard. The page is shown as the figure appears below.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
