D-Link DSL-2750U User Manual

DSL-2750U Wireless ADSL2+ Router with 3G/LTE/Ethernet WAN Support
and USB Port
User Manual
Configuring via Web-based Interface
You can finish the wizard earlier and go to the menu of the web-based interface. To do this, click the
ADVANCED SETTINGS button. On the opened page, change the default settings: specify the
administrator password in the Admin password field and the name of the wireless network in the
Network name (SSID) field. Then click the APPLY button.

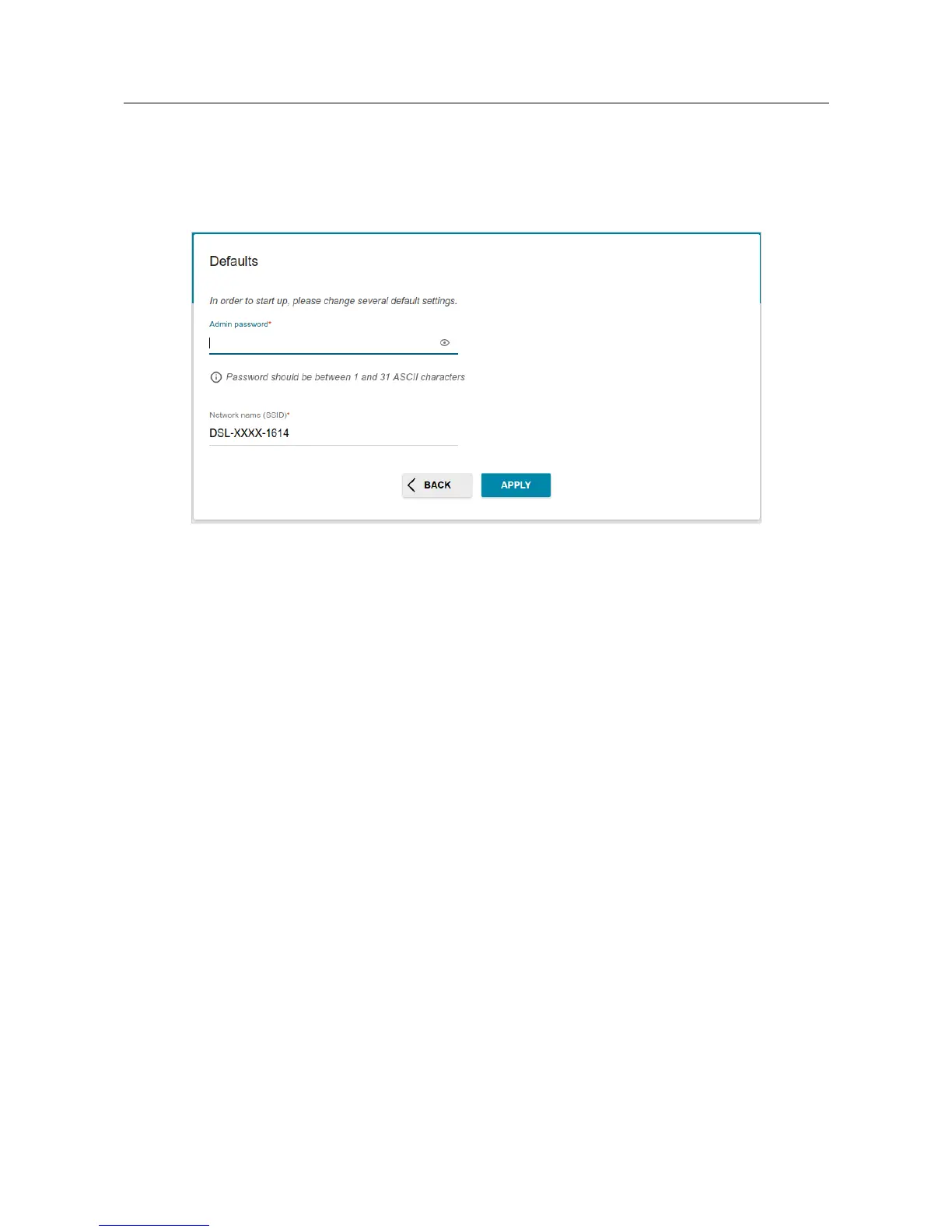

Figure 24. Changing the default settings.
To continue the configuration of the router via the Wizard, click the CONTINUE button.
Page 38 of 210

D-Link DSL-2750U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface standard	10/100BASE-T Ethernet
