D-Link N300 User Manual

DIR-620S Wireless N300 Router with 3G/LTE Support and
USB Port
User Manual
Configuring via Web-based Interface
Remote Access
On the Firewall / Remote Access page, you can configure access to the web-based interface of
the router. By default, the access from external networks to the router is closed. If you need to allow
access to the router from the external network, create relevant rules.

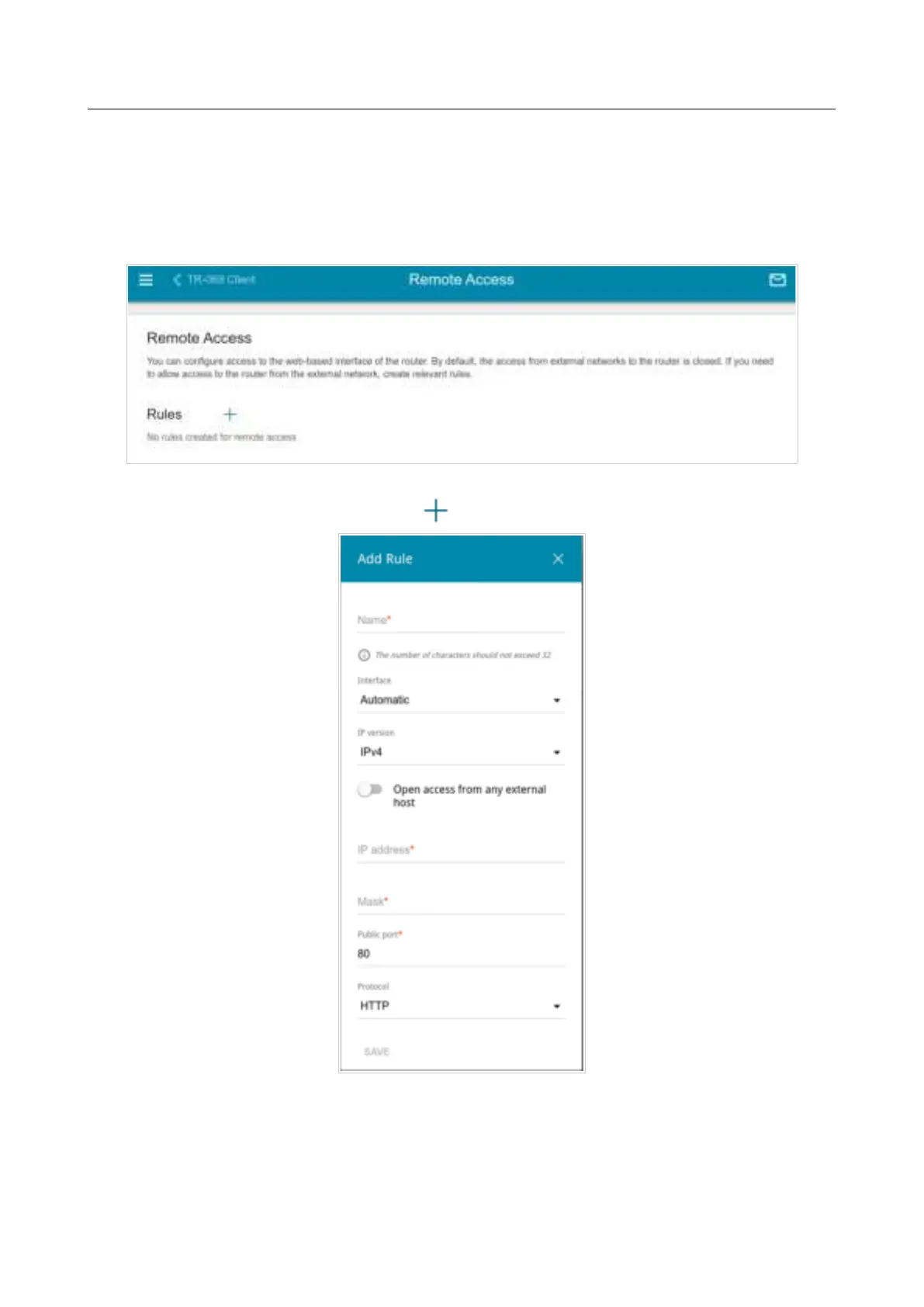

Figure 165. The Firewall / Remote Access page.
To create a new rule, click the ADD button ( ).
Figure 166. The window for adding a rule for remote management.
Page 209 of 236

D-Link N300 Specifications

General

Wireless Speed	300 Mbps
Frequency Band	2.4 GHz
Wireless Standards	IEEE 802.11n/g/b
Antenna Type	Internal
Ports	1 x 10/100 Mbps Ethernet Port
Security	WPA, WPA2
Product Type	Range Extender
