D-Link xtreme n duo dap-1522 User Manual

78D-Link DAP-1522 User Manual
Section 4 - Security
Configure WEP (Bridge Mode)
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please
establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption
due to the added overhead.
1. Log into the web-based configuration by opening a web browser and entering the IP address of the bridge
(192.168.0.50). Click on Setup and then click Wireless Settings.

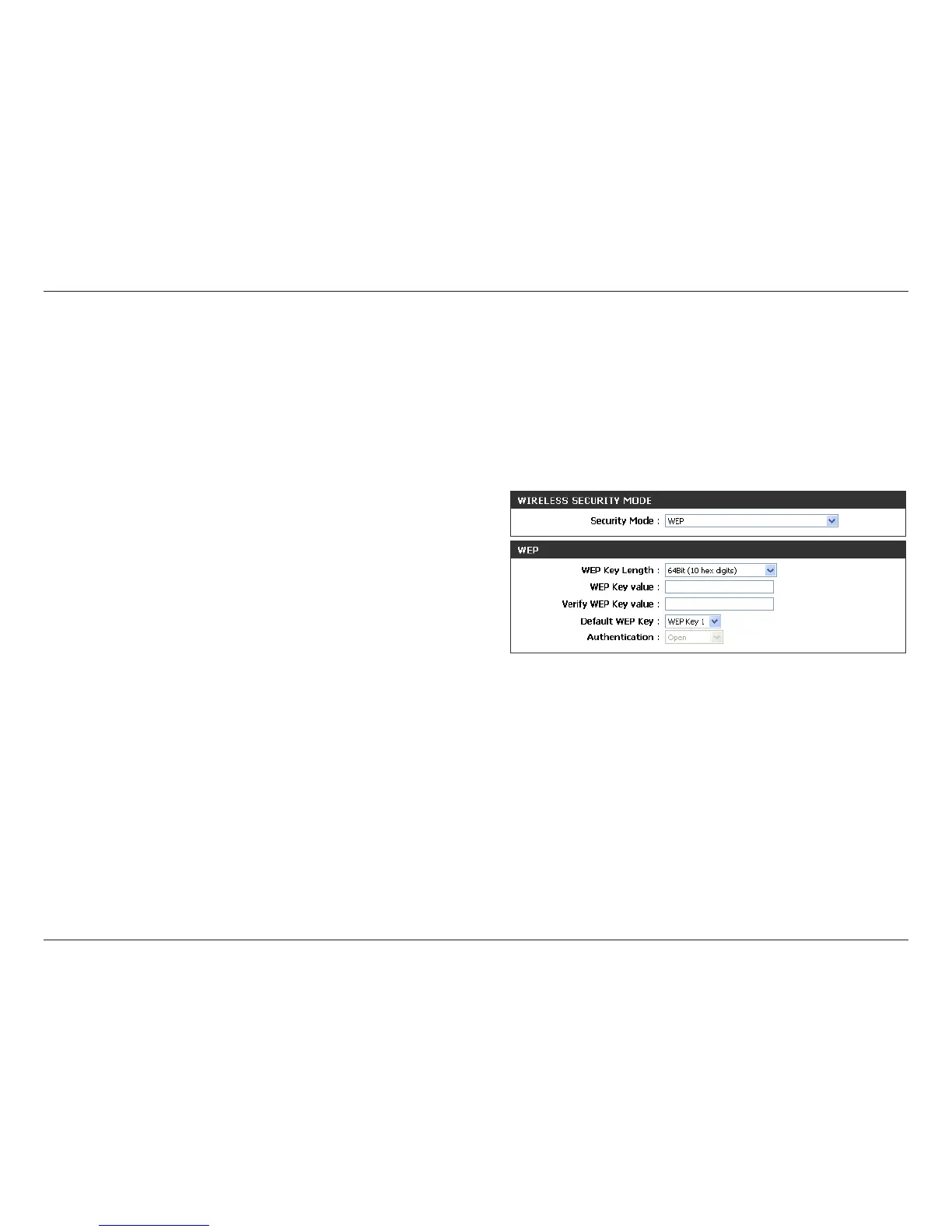

2. For Security Mode in the Wireless Security Mode section,
select WEP.
3. Next to WEP Key Length in the WEP section, selectboththetypeselect both the type
of input (hexidecimal or ASCII) and the level of encryption (64-
bit or 128-bit). Hex - (recommended) Letters A-F and numbers 0-9
are valid..
4. For the Default WEP Key and the first selection on the drop-down menu, WEP Key 1. Enter a WEP key that you createFor the Default WEP Key and the first selection on the drop-down menu, WEP Key 1. Enter a WEP key that you create
in the WEP Key value and Verify WEP Key value fields. Make sure you enter this key exactly on all your wireless
devices. You may enter up to 4 different keys using the Default WEP Key drop-down menu..
5. For Authentication, select Open or Shared Key.
6. Click Save Settings to save your settings. If you are configuring the access point with a wireless adapter, you will lose
connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the access point.

D-Link xtreme n duo dap-1522 Specifications

Physical Interfaces

gigabit LAN ports	4
push-button for Wi-Fi Protected Setup	1
three-way switch	1

Weight and Dimensions

dimensions	4.4” x 5.7” x 1.3”
packaging dimensions	8.2” x 10.8” x 2.7”
weight	0.5 lbs
packaging weight	1.7 lbs
